IRB 4600 Parts
Compare IRB 4600
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Depth / Length | Product Name |
|---|---|---|---|---|---|

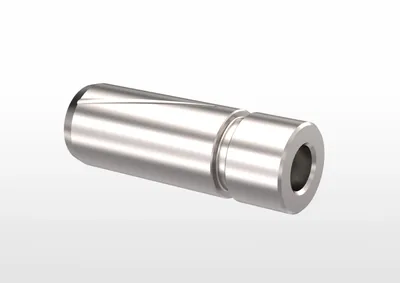

| 3HAC060254-002 | Calibration cyl. pin 14, surface treated | 0.045 kg kg | 0.045 kg kg | 41 mm mm | Calibration cyl. pin 14, surface tr |

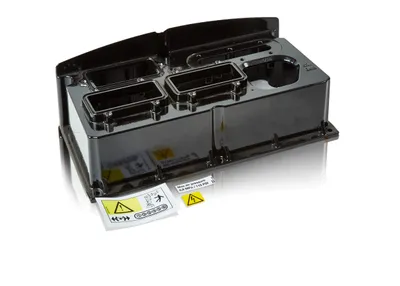

| 3HAC029250-002 | Cover | 2.46 kg kg | 2.46 kg kg | 350 mm mm | Cover |

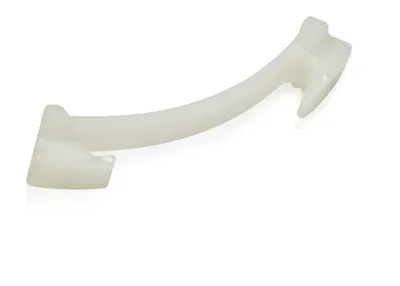

| 3HAC029256-001 | Damper axis 5 | 0.03 kg kg | 0.03 kg kg | 130 mm mm | Damper axis 5 |

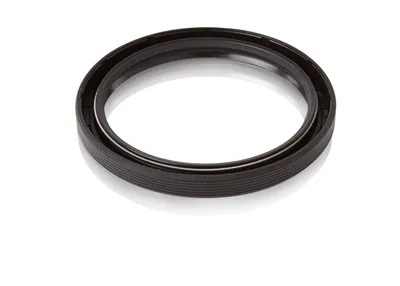

| 3HAB3701-29 | Rad Sealing | 0.025 kg kg | 0.025 kg kg | 80 mm mm | Rad Sealing |
| 29454489-16 | Instruction plate | 0.002 kg kg | 0.002 kg kg | 45 mm mm | Instruction plate |

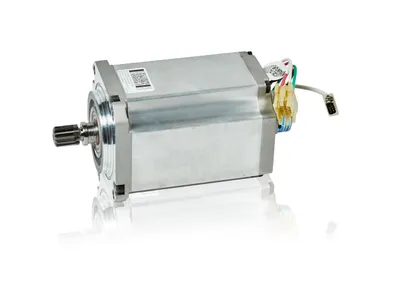

| 3HAC043569-004 | Motor with pinion typeC | 13 kg kg | 13 kg kg | 270 mm mm | Motor with pinion typeC |
| 3HAC028763-005 | Cover arm housing | 4.42 kg kg | 4.42 kg kg | — | Cover arm housing |

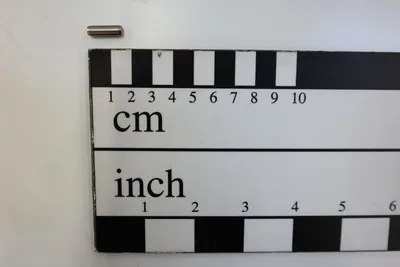

| 9ABA108-25 | Parallel pin | 0.247 kg kg | 0.247 kg kg | — | Parallel pin |

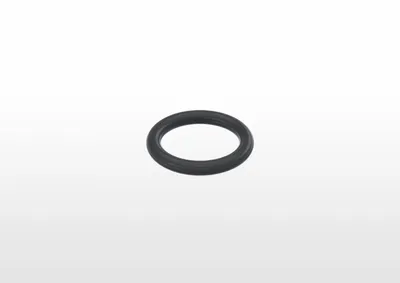

| 3HAB3772-147 | O-ring | 0.006 kg kg | 0.006 kg kg | 16 mm mm | O-ring |
| 3HAC043166-005 | Motor with pinion typeC | 13 kg kg | 13 kg kg | — | Motor with pinion typeC |

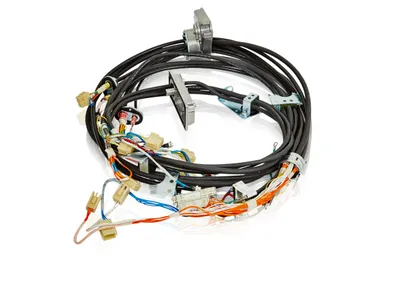

| 3HAC029420-001 | Manipulator harness ax1-6 basic | 5.6 kg kg | 5.6 kg kg | 4300 mm mm | Manipulator harness ax1-6 basic |

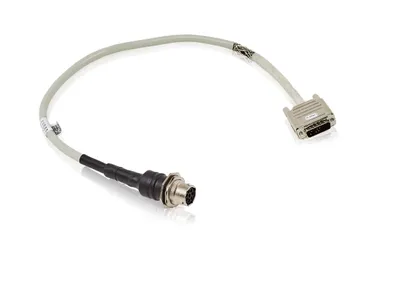

| 3HAC030936-001 | Cable harness axis 7 | 0.167 kg kg | 0.167 kg kg | 700 mm mm | Cable harness axis 7 |

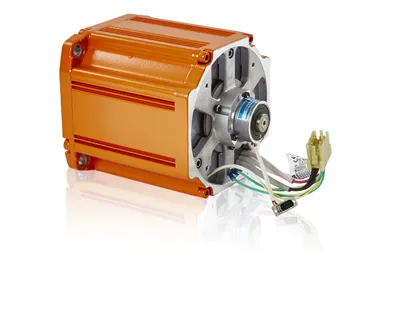

| 3HAC029032-004 | Rot ac motor with pinion | 22.02 kg kg | 23.4 kg kg | — | Rot ac motor with pinion |

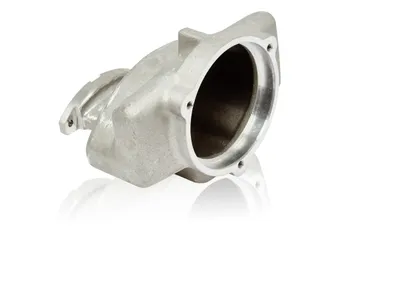

| 3HAC034099-001 | Expansion container | 1.05 kg kg | 1.05 kg kg | 140 mm mm | Expansion container |

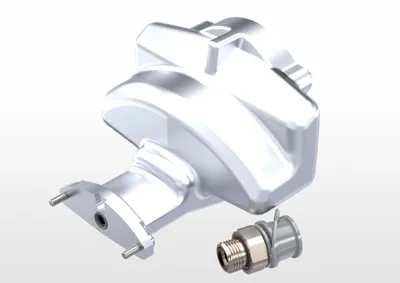

| 3HAC033862-005 | Inverted mounting pos | 3.816 kg kg | 3.816 kg kg | — | Inverted mounting pos |
| 3HAC029362-001 | Instruction Plate | 0.006 kg kg | 0.006 kg kg | — | Instruction Plate |

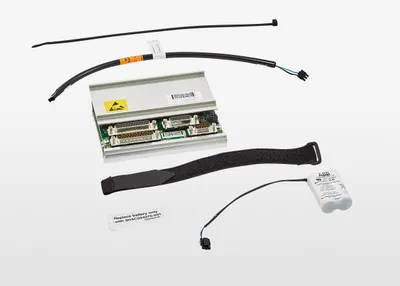

| 3HAC046686-001 | SMB Replacement Set | 0.377 kg kg | 0.377 kg kg | — | SMB Replacement Set |

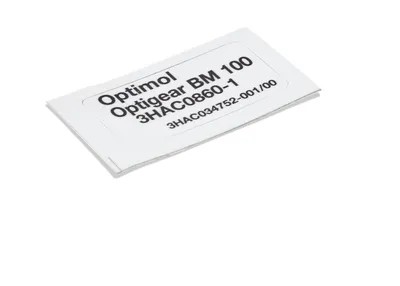

| 3HAC034752-001 | Label | 0.002 kg kg | 0.002 kg kg | 40 mm mm | Label |

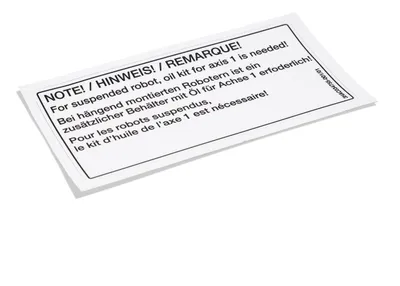

| 3HAC034755-001 | Label Suspended | 0.002 kg kg | 0.002 kg kg | 145 mm mm | Label Suspended |

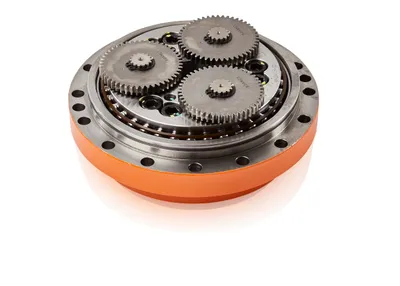

| 3HAC043134-003 | Reduction Gear RV-125N-145.61 | 13.5 kg kg | 13.5 kg kg | 220 mm mm | Reduction Gear RV-125N-145.61 |

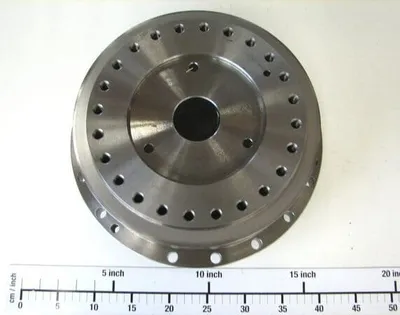

| 3HAC031958-002 | Reduction Gear RV-320E3 i=171 | 51 kg kg | 51 kg kg | 323 mm mm | Reduction Gear RV-320E3 i=171 |
| 3HAC070699-001 | Cable protection upper arm | 0.5 kg kg | 0.5 kg kg | 140 mm mm | Cable protection upper arm |

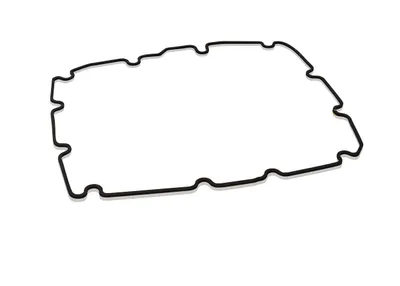

| 3HAC029312-001 | Gasket | 0.034 kg kg | 0.034 kg kg | 443.3 mm mm | Gasket |

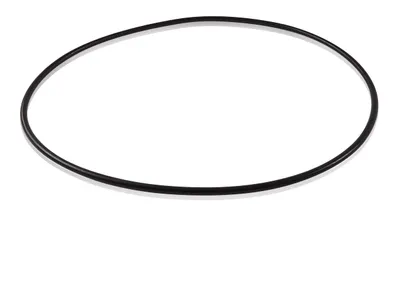

| 3HAB3772-120 | O-ring | 0.02 kg kg | 0.02 kg kg | 264.3 mm mm | O-ring |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
