Articulated Robots Parts
Browse Subcategories
Compare Articulated Robots
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Depth / Length | Product Net Height | Product Net Width | Product Name |
|---|---|---|---|---|---|

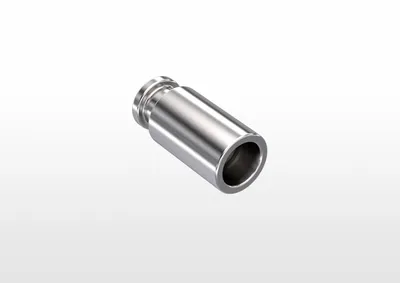

| 3HAC061926-001 | Calibration pin cover, 6mm | 19.5 mm mm | 9 mm mm | 9 mm mm | Calibration pin cover, 6mm |

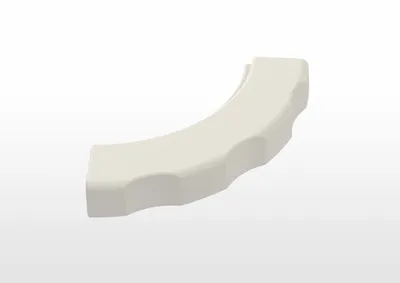

| 3HAC061947-001 | Mech. Stop, axis 1 | 91.28 mm mm | 12.5 mm mm | 33.15 mm mm | Mech. Stop, axis 1 |

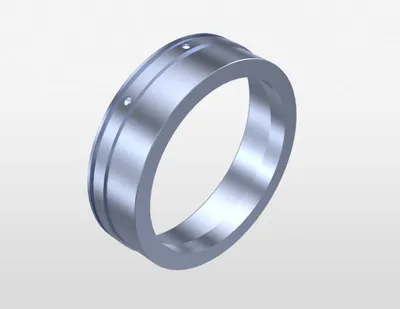

| 3HAC073218-001 | Labyrinth seal ring | — | — | — | Labyrinth seal ring |

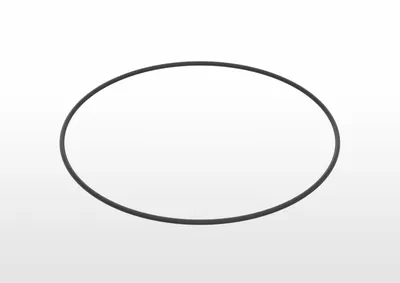

| 3HAC061327-032 | O-ring | 85 mm mm | 1.5 mm mm | 85 mm mm | O-ring |

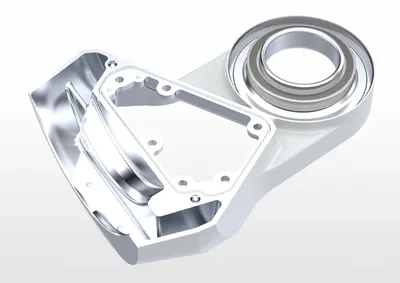

| 3HAC069039-001 | Swing support side, with bearing | 217.52 mm mm | 48.5 mm mm | 165.06 mm mm | Swing support side, with bearing |

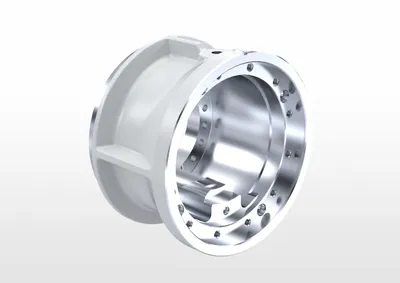

| 3HAC069037-001 | Extender with bushing | 89.96 mm mm | 62.5 mm mm | 89.95 mm mm | Extender with bushing |

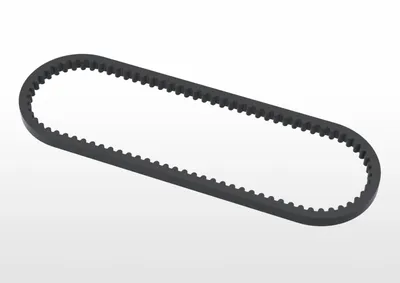

| 3HAC061938-001 | Belt | 115.59 mm mm | 4 mm mm | 37.25 mm mm | Belt |

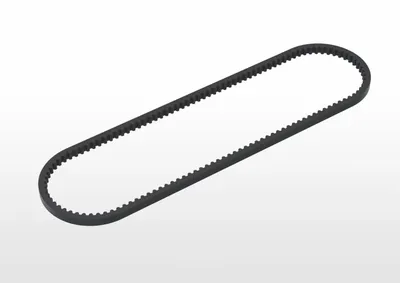

| 3HAC061939-001 | Belt | 173 mm mm | 4 mm mm | 47 mm mm | Belt |

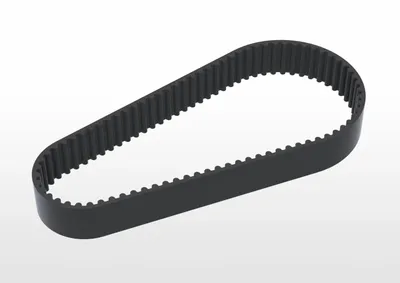

| 3HAC061934-001 | Belt | 110.45 mm mm | 12 mm mm | 41.9 mm mm | Belt |

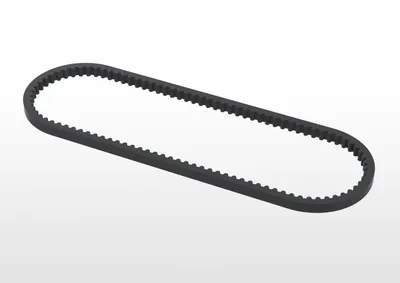

| 3HAC061935-001 | Belt | 134.88 mm mm | 4 mm mm | 42.88 mm mm | Belt |

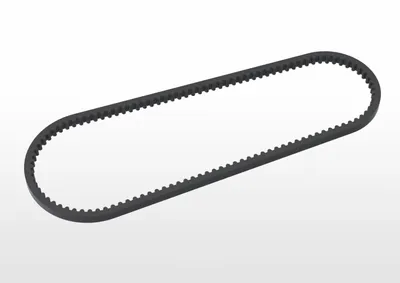

| 3HAC061936-001 | Belt | 150.31 mm mm | 4 mm mm | 51.61 mm mm | Belt |

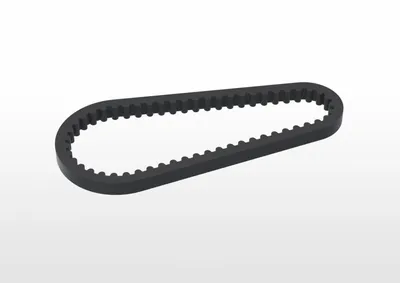

| 3HAC061937-001 | Belt | 74.44 mm mm | 4 mm mm | 31.33 mm mm | Belt |

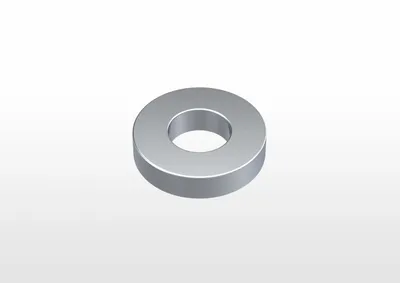

| 3HAC063985-001 | Plain washer,machining | 9 mm mm | 2 mm mm | 9 mm mm | Plain washer,machining |

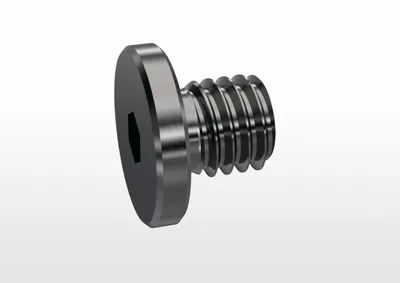

| 3HAC064146-001 | Plug screw | — | — | — | Plug screw |

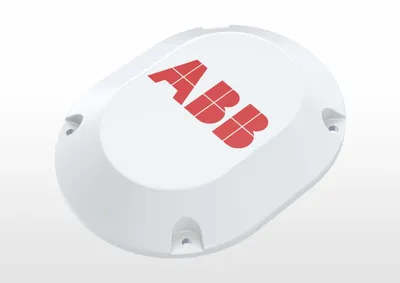

| 3HAC069054-001 | Armhousing cover | 118 mm mm | 18.5 mm mm | 90 mm mm | Armhousing cover |

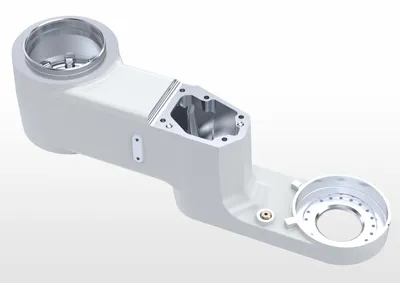

| 3HAC069056-001 | lower arm,long, with bushing | 376.33 mm mm | 102 mm mm | 126 mm mm | lower arm,long, with bushing |

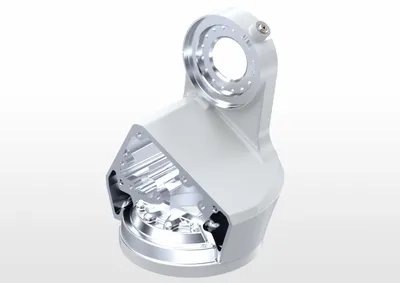

| 3HAC069050-001 | Swing with bushing | 230.97 mm mm | 158.97 mm mm | 170.26 mm mm | Swing with bushing |

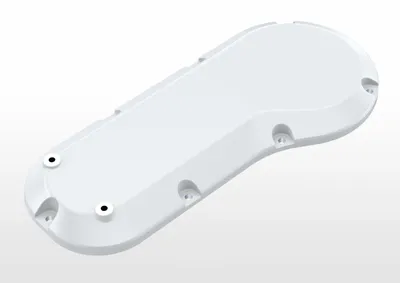

| 3HAC069057-001 | Lower arm cover, right | 202.38 mm mm | 15.5 mm mm | 89.5 mm mm | Lower arm cover, right |

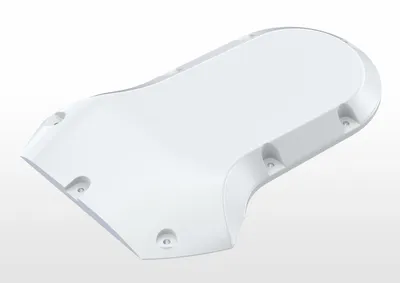

| 3HAC069052-001 | Swing cover, left | 198.71 mm mm | 17.21 mm mm | 136.99 mm mm | Swing cover, left |

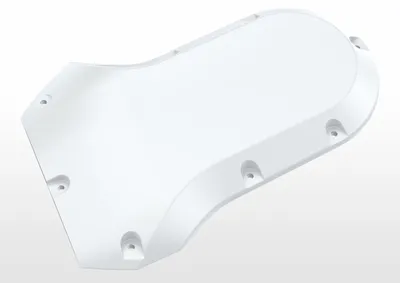

| 3HAC069051-001 | Swing cover, right | 198.71 mm mm | 17.21 mm mm | 136.99 mm mm | Swing cover, right |

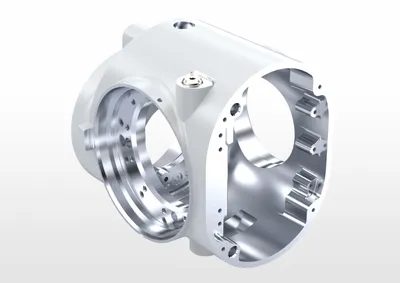

| 3HAC069053-001 | Housing with bushing | 126 mm mm | 107.5 mm mm | 120 mm mm | Housing with bushing |

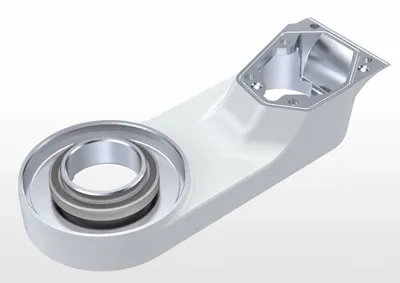

| 3HAC069058-001 | Lower arm support, with bearing | 216.53 mm mm | 42 mm mm | 94.3 mm mm | Lower arm support, with bearing |
| 3HAC069059-001 | Lower arm cover, left | 202.38 mm mm | 15.5 mm mm | 89.5 mm mm | Lower arm cover, left |

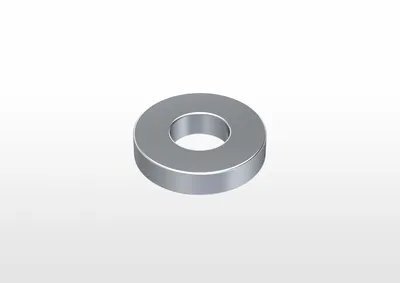

| 3HAC064765-001 | Washer | 7.2 mm mm | 1.5 mm mm | 7.2 mm mm | Washer |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
| Frame Size | Undefined |
