IRB 4400 Parts
Compare IRB 4400
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Width | Product Name |
|---|---|---|---|---|---|
| 3HAC023854-001 | Motor incl. pinion | 11.8 kg kg | 11.8 kg kg | 170 mm mm | Motor incl. pinion |
| 3HAB3718-1 | Nut, tilthus | 0.321 kg kg | 0.321 kg kg | 53 mm mm | Nut, tilthus |
| 3HAB3613-1 | Gear | 0.48 kg kg | 0.48 kg kg | — | Gear |
| 3HAB3615-1 | Pinion ax. 4-6 / Z1 | 0.05 kg kg | 0.05 kg kg | 30 mm mm | Pinion ax. 4-6 / Z1 |
| 3HAB3684-1 | Bearing holder | 0.95 kg kg | 0.95 kg kg | 100 mm mm | Bearing holder |
| 3HAC5958-1 | Cable u. ax.1-3 | 7.2 kg kg | 7.2 kg kg | 600 mm mm | Cable u. ax.1-3 |

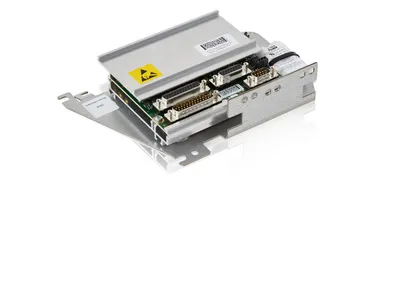

| 3HAC046277-001 | Serial measurement unit | 0.68 kg kg | 0.68 kg kg | 49 mm mm | Serial measurement unit |

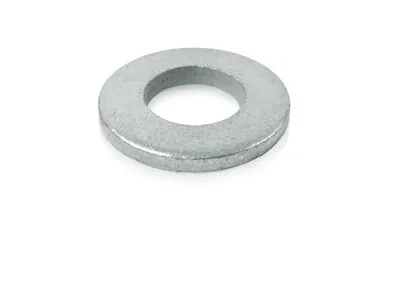

| 21542033-7 | Washer | 0.004 kg kg | 0.004 kg kg | 2 mm mm | Washer |

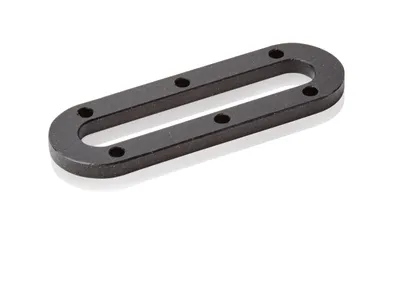

| 3HAC025848-001 | Distance plate | 0.035 kg kg | 0.035 kg kg | 45 mm mm | Distance plate |

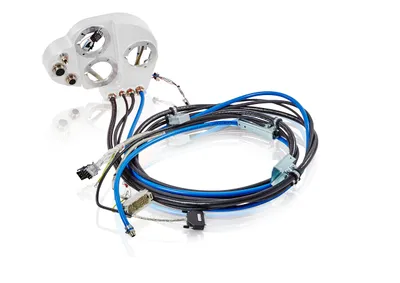

| 3HAC050568-001 | Cable unit ax. 4-6 | 6.4 kg kg | 6.4 kg kg | 600 mm mm | Cable unit ax. 4-6 |

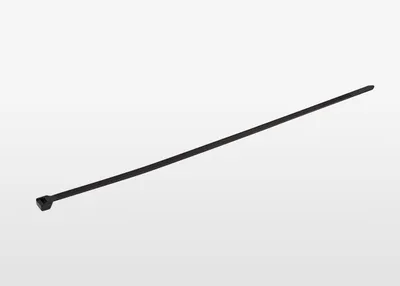

| 21662055-6 | Cable straps, outdoors | 0.006 kg kg | 0.006 kg kg | — | Cable straps, outdoors |

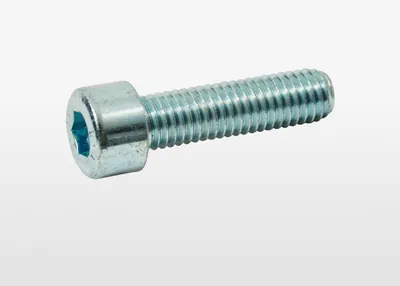

| 9ADA183-38 | Hex socket head cap screw | 0.008 kg kg | 0.008 kg kg | 10 mm mm | Hex socket head cap screw |

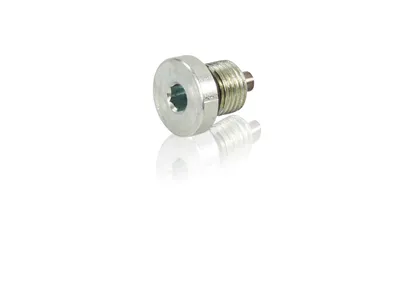

| 3HAC037925-001 | Magnetic plug, G 1/4" G | 0.019 kg kg | 0.019 kg kg | 19 mm mm | Magnetic plug, G 1/4" G |

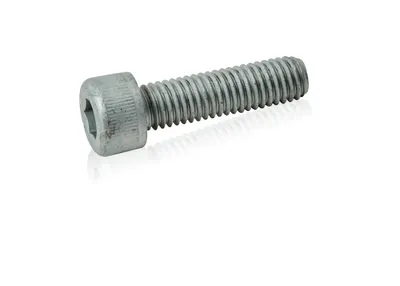

| 3HAB3409-38 | Hex socket head cap screw | 0.016 kg kg | 0.016 kg kg | 15 mm mm | Hex socket head cap screw |

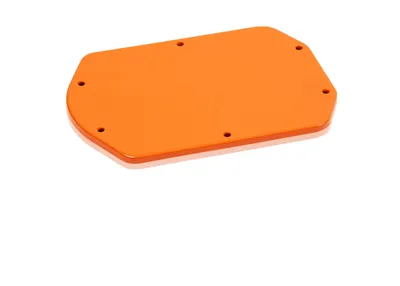

| 3HAC2327-2 | Cover | 0.3 kg kg | 0.3 kg kg | — | Cover |

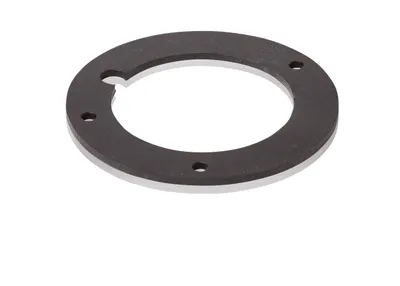

| 3HAB3676-1 | Gasket | 0.05 kg kg | 0.05 kg kg | 3 mm mm | Gasket |

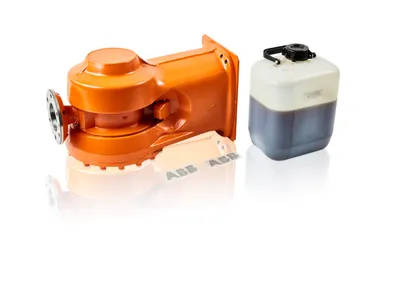

| E3HAB8271-1 | WRIST | 49 kg kg | 58 kg kg | — | WRIST |

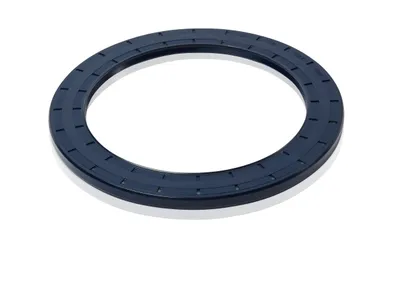

| 2522290-29 | GASKET | 0.22 kg kg | 0.22 kg kg | 190 mm mm | GASKET |

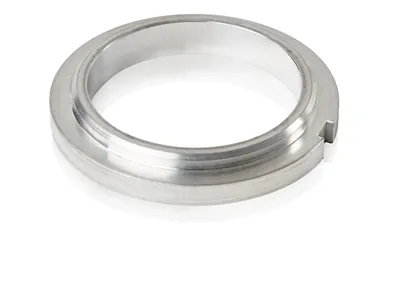

| 3HAB3775-1 | Ring | 0.12 kg kg | 0.12 kg kg | 60 mm mm | Ring |

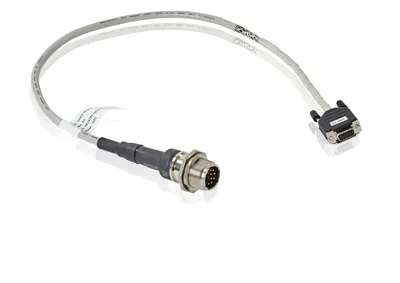

| 3HAC7819-1 | Cable SMB | 0.12 kg kg | 0.12 kg kg | 127.39 mm mm | Cable SMB |

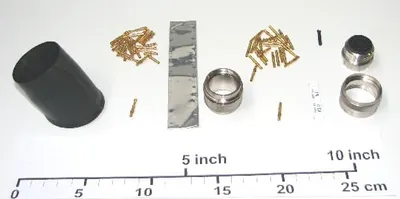

| 3HAC12344-1 | Conn.set R1.LS1 | 0.2 kg kg | 0.2 kg kg | — | Conn.set R1.LS1 |

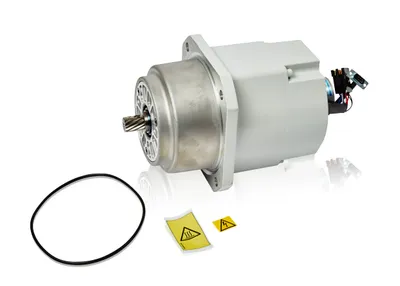

| E3HAC021725-003 | Motor incl pinion | 14.9 kg kg | 14.9 kg kg | — | Motor incl pinion |

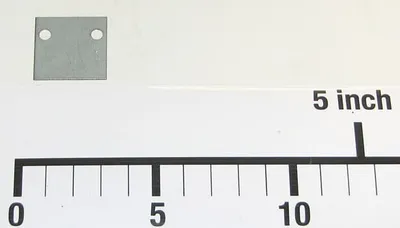

| 3HAB7478-1 | Shims-sheet | 0.004 kg kg | 0.004 kg kg | 27.5 mm mm | Shims-sheet |

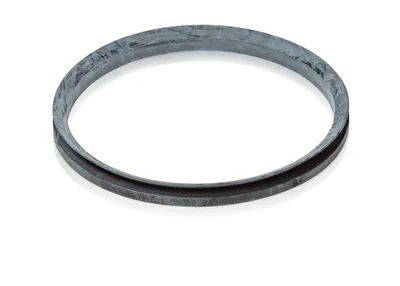

| 3HAB3773-11 | V-ring (sealing) V | 0.026 kg kg | 0.026 kg kg | 149 mm mm | V-ring (sealing) V |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| WEEE Category | Product Not in WEEE Scope |
