IRB 8700 Parts
Compare IRB 8700
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Invoice Description | Product Net Weight | Gross Weight | Product Net Width | Product Name |
|---|---|---|---|---|---|

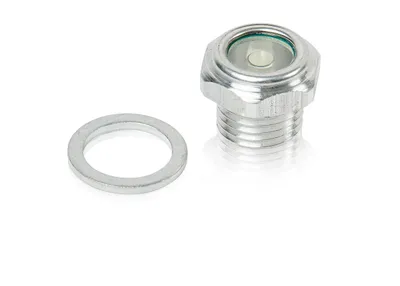

| 3HAC052406-002 | Transparent Plug, Alu. washer | 0.004 kg kg | 0.004 kg kg | 20 mm mm | Transparent Plug, Alu. washer |

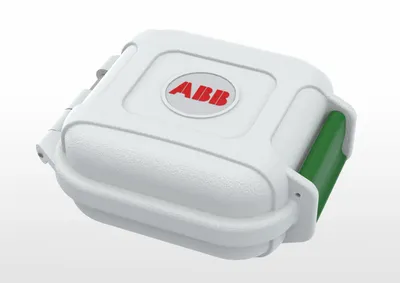

| 3HAC074119-001 | Calibration toolbox | 0.3 kg kg | 0.3 kg kg | 70 mm mm | Calibration toolbox |

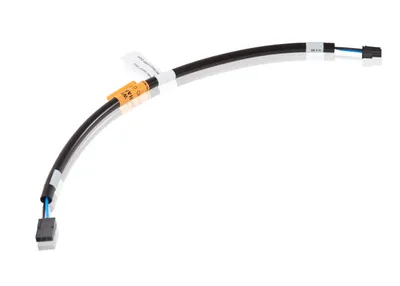

| 3HAC046287-001 | Cable Battery/SMB | 0.012 kg kg | 0.012 kg kg | 15 mm mm | Cable Battery/SMB |

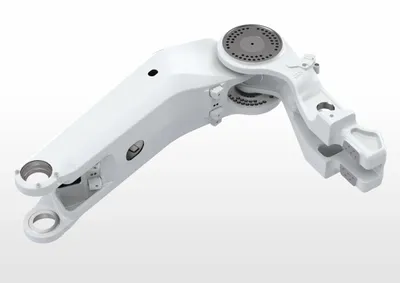

| 3HAC048078-003 | Lower arm system | 620 kg kg | 620 kg kg | 600 mm mm | Lower arm system |

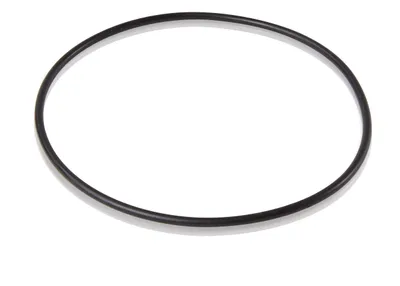

| 3HAB3772-107 | O-ring | 0.003 kg kg | 0.003 kg kg | 102 mm mm | O-ring |

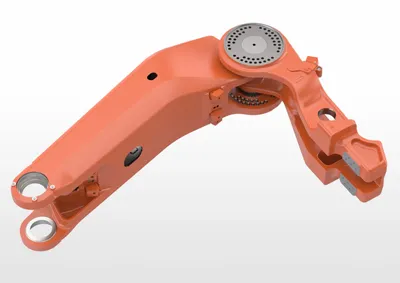

| 3HAC048078-004 | Lower arm system | 620 kg kg | 620 kg kg | 600 mm mm | Lower arm system |

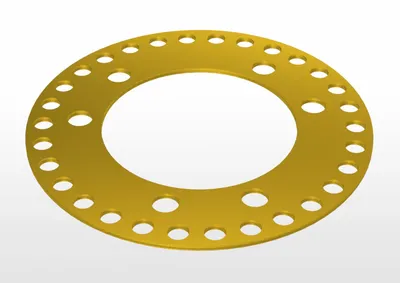

| 3HAC048267-001 | Set of shims Z3 | 0.1 kg kg | 0.1 kg kg | 243.5 mm mm | Set of shims Z3 |

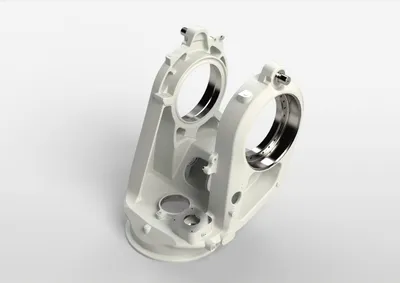

| 3HAC048537-005 | Frame | 544 kg kg | 544 kg kg | — | Frame |

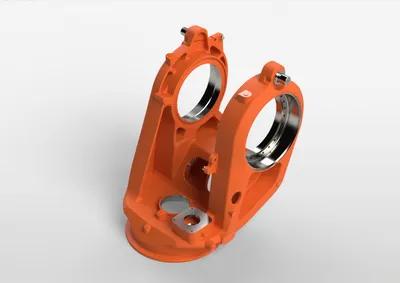

| 3HAC048537-006 | Frame | 544 kg kg | 544 kg kg | — | Frame |

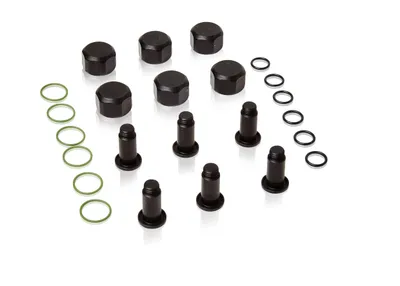

| 3HAC056806-001 | Calibration protection set | 0.12 kg kg | 0.12 kg kg | — | Calibration protection set |

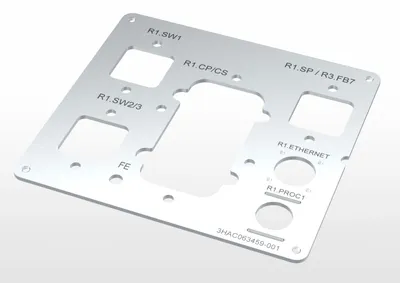

| 3HAC063459-001 | Plate, customer | 0.54 kg kg | 0.54 kg kg | 175 mm mm | Plate, customer |

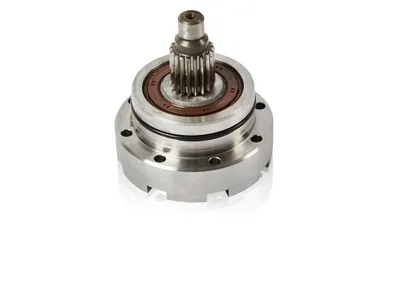

| 3HAC051022-003 | Hub with pinion | 1.9 kg kg | 1.9 kg kg | 90 mm mm | Hub with pinion |

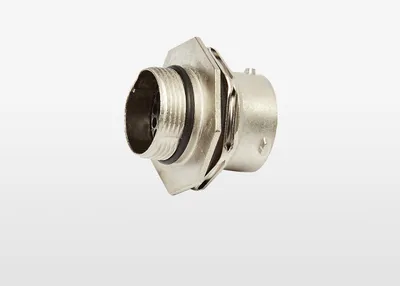

| 3HAC023828-004 | UTOW Socketconnector 26p, Bulkhead | 0.04 kg kg | 0.04 kg kg | 40 mm mm | UTOW Socketconnector 26p, Bulkhead |

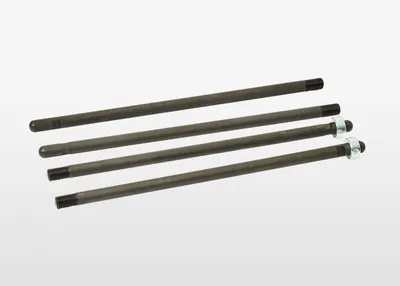

| 3HAC059801-001 | Mounting set gear axis 2-3 | 2.5 kg kg | 2.5 kg kg | — | Mounting set gear axis 2-3 |

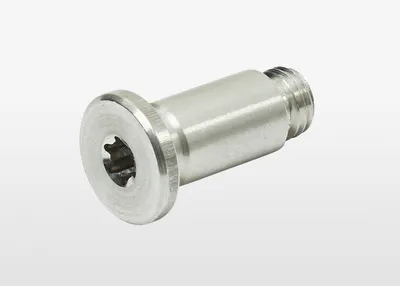

| 3HAC053237-001 | Plug | 0.005 kg kg | 0.005 kg kg | 19 mm mm | Plug |

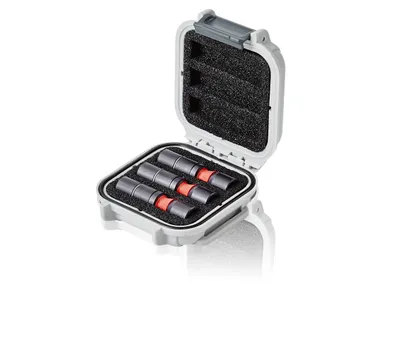

| 3HAC055412-001 | Calibration toolbox | 0.14 kg kg | 0.14 kg kg | 70 mm mm | Calibration toolbox |

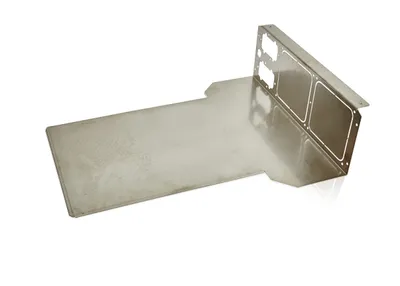

| 3HAC050831-001 | Connectionplate base | 6.58 kg kg | 6.58 kg kg | 555 mm mm | Connectionplate base |

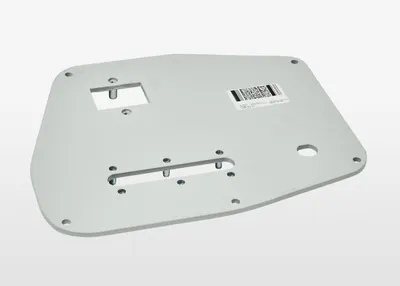

| 3HAC044076-003 | Cover SMB | 2.1 kg kg | 2.1 kg kg | 235 mm mm | Cover SMB |

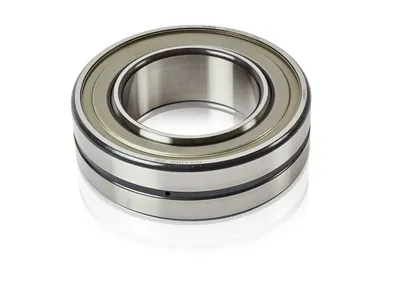

| 3HAC12441-4 | Spherical roller bearing | 3.06 kg kg | 3.06 kg kg | — | Spherical roller bearing |

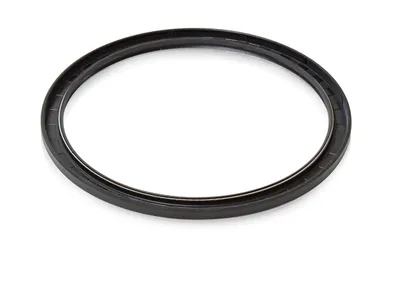

| 3HAB3701-11 | Sealing with dust lip | 0.1 kg kg | 0.1 kg kg | 190 mm mm | Sealing with dust lip |

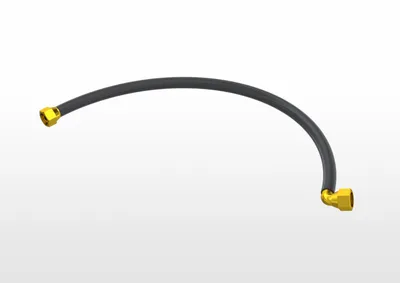

| 3HAC16845-5 | Hose Water and Air-unit | 0.32 kg kg | 0.32 kg kg | — | Hose Water and Air-unit |
| 3HAC061213-001 | Supporting pillar for IRB8700 | 44 kg kg | 44 kg kg | 160 mm mm | Supporting pillar for IRB8700 |

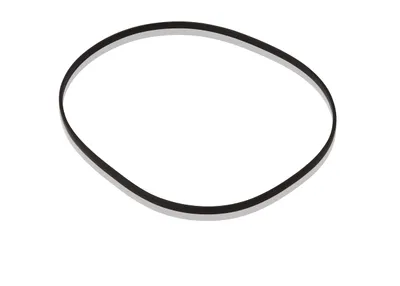

| 3HAC054692-002 | O-ring (rectangular section) | 0.007 kg kg | 0.007 kg kg | 4.8 mm mm | O-ring (rectangular section) |

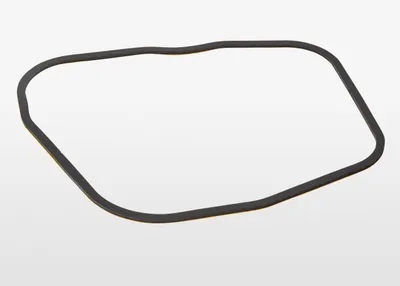

| 3HAC044074-001 | Gasket SMB-cover | 0.2 kg kg | 0.2 kg kg | 220 mm mm | Gasket SMB-cover |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Selling Unit of Measure | piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Made To Order | No |
| Part Type | New |
| WEEE Category | Product Not in WEEE Scope |
