Schneider Electric
RE22R1HMRDual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, interval relay, 24...240V AC DC
Harmony Timer Relays Parts
Schneider Electric
RE22R1DMRDual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, symmetrical flashing, 24...240V AC DC
Schneider Electric
RE22R1CMRDual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, off delay, 24...240V AC DC
Schneider Electric
RE22R1AMRDual function relay, Harmony Timer Relays, A, 1 CO, 0.05s…300h, power on delay, 24...240V AC DC
Schneider Electric
RE22R1AKMRDual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, 24...240V AC DC
Schneider Electric
RE22R1ACMRDual function relay, Harmony Timer Relays, 8A, 1CO, 0.05s…300h, screw connectors, 24...240V AC DC
Schneider Electric
RE17RMXMUMultifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10h, pulse delay, 24V DC or 24...240V AC DC
Schneider Electric
RE17RMMWSMultifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10h, power on delay, spring terminals, 12...240V AC DC
Schneider Electric
RE17RMMWMultifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10h, power on delay, 12...240V AC DC
Schneider Electric
RE17RMMUMultifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, symmetrical flashing, 24V DC or 24...240V AC DC
Schneider Electric

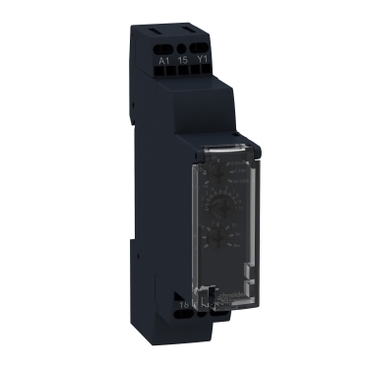

RE17RMJUMultifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, 12V AC DC
Schneider Electric
RE17RMEMUMultifunction relay, Harmony Timer Relays, 8A, 1CO, 0.1s..10 h, power on delay, 24V DC or 24...240V AC DC
Schneider Electric
RE17RLMUDual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, asymmetrical flashing, 24V DC or 24...240V AC DC
Schneider Electric
RE17RLJUSingle function relay, Harmony Timer Relays, 8A, 1CO, 0,1s..100h, asymmetrical flashing, 12V AC DC
Schneider Electric
RE17RHMUDual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, on delay, cadmium free, 24V DC or 24...240V AC DC
Schneider Electric
RE17RCMUSingle function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, off delay, 24V DC or 24...240V AC DC
Schneider Electric
RE17RBMUSingle function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, single interval relay, 24V DC or 24...240V AC DC
Schneider Electric
RE17RAMUDual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, on delay, 24V DC or 24...240V AC DC
Schneider Electric
RE17LMBMSingle function relay, Harmony Timer Relays, 0.7A, 1s..100h, multifunction, solid state output, 24 to 240V AC
Schneider Electric
RE17LLBMSingle function relay, Harmony Timer Relays, 0.7A, 1s..100h, asymmetrical flashing, solid state output, 24 to 240V AC
Schneider Electric
RE17LHBMSingle function relay, Harmony Timer Relays, 0.7A, 1s..100h, interval relay, solid state output, 24...240V AC
Schneider Electric
RE17LCBMSingle function relay, Harmony Timer Relays, 0.7A, 1s..100h, off delay, solid state output, 24 to 240V AC
Schneider Electric
RE17LAMWSingle function relay, Harmony Timer Relays, 0.7A, 1CO, 0,1s..100h, on delay, solid state output, 24..240V AC DC
Schneider Electric
RENF22R2MMWMultifunction relay, Harmony Timer Relays, 8A, 2CO, 0.05s to 999h asymmetrical on delay and off delay 24 to 240V AC DC
Compare Harmony Timer Relays
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | [Us] rated supply voltage | Number of functions | Product certifications | release of input voltage | Functionality |
|---|---|---|---|---|---|
| RE22R1HMR | 24...240 V AC/DC 50/60 Hz | 2 | CE, EAC, CSA, RCM, CCC, GL, UL | — | — |
| RE22R1DMR | 24...240 V AC/DC 50/60 Hz | 2 | GL, EAC, UL, CCC, CSA, CE, RCM | — | — |
| RE22R1CMR | 24...240 V AC/DC 50/60 Hz | 2 | UL, CE, CCC, CSA, GL, RCM, EAC | — | — |
| RE22R1AMR | 24...240 V AC/DC 50/60 Hz | 2 | CE, UL, GL, CCC, EAC, RCM, CSA | — | — |
| RE22R1AKMR | 24...240 V AC/DC 50/60 Hz | 2 | EAC, CSA, UL, RCM, CCC, GL, CE | — | — |
| RE22R1ACMR | 24...240 V AC/DC 50/60 Hz | 2 | CE, CCC, GL, UL, CSA, EAC, RCM | — | — |
| RE17RMXMU | 24...240 V AC 50/60 Hz, 24 V DC | 9 | cULus, GL, CSA | 10 V | Multifunction |
| RE17RMMWS | 12...240 V AC/DC 50/60 Hz | 10 | GL, cULus, CSA | 5 V | Multifunction |
| RE17RMMW | 12...240 V AC/DC 50/60 Hz | 10 | CSA, GL, cULus | 5 V | Multifunction |
| RE17RMMU | 24...240 V AC 50/60 Hz, 24 V DC | 10 | CSA, GL, cULus | 10 V | Multifunction |
| RE17RMJU | 12 V AC/DC 50/60 Hz | 10 | CSA, GL, cULus | 5 V | Multifunction |
| RE17RMEMU | 24...240 V AC 50/60 Hz, 24 V DC | 8 | CSA, cULus | 10 V | Multifunction |
| RE17RLMU | 24...240 V AC 50/60 Hz, 24 V DC | 2 | GL, cULus, CSA | 10 V | Asymmetrical flashing timer |
| RE17RLJU | 12 V AC/DC 50/60 Hz | 2 | CSA, cULus, GL | 5 V | Asymmetrical flashing timer |
| RE17RHMU | 24...240 V AC 50/60 Hz, 24 V DC | 2 | cULus, CSA, GL | 10 V | On-delay timing |
| RE17RCMU | 24...240 V AC 50/60 Hz, 24 V DC | 1 | cULus, GL, CSA | 10 V | Off-delay timing |
| RE17RBMU | 24...240 V AC 50/60 Hz, 24 V DC | 1 | GL, cULus, CSA | 10 V | Pulse signal |
| RE17RAMU | 24...240 V AC 50/60 Hz, 24 V DC | 2 | CSA, cULus, GL | 10 V | On-delay timing |
| RE17LMBM | 24...240 V AC 50/60 Hz | 10 | GL, cULus, CSA | 8 V | Multifunction |
| RE17LLBM | 24...240 V AC 50/60 Hz | 2 | cULus, GL, CSA | 7 V | Asymmetrical flashing timer |
| RE17LHBM | 24...240 V AC 50/60 Hz | 1 | cULus, CSA, GL | 9 V | On-delay timing |
| RE17LCBM | 24...240 V AC 50/60 Hz | 1 | CSA, GL, cULus | 7 V | Off-delay timing |
| RE17LAMW | 24...240 V AC/DC 50/60 Hz | 1 | GL, CSA, cULus | — | On-delay timing |
| RENF22R2MMW | 24...240 V AC/DC | 28 | CE, CSA, KC, UL, CCC, EAC, DNV-GL | — | — |
Common to all listed parts
| Range of product | Harmony Timer Relays |
| Supply frequency | 50...60 Hz +/- 5 % |
| Housing material | Polycarbonate |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
