Modicon STB Parts
Compare Modicon STB
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Height | Width | Depth | Net weight |
|---|---|---|---|---|---|
| STBPDT2100 | Standard power distribution module | 18.4 mm | 125 mm | 65.1 mm | 0.129 kg |

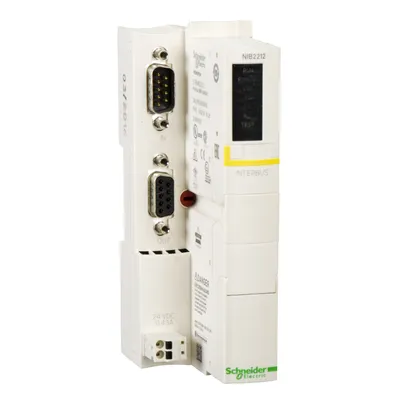

| STBNIB2212 | Standard Network Interface Module | 40 mm | 128.3 mm | 70 mm | 0.155 kg |
| STBNIB1010 | Basic network interface module | 40 mm | 128.3 mm | 70 mm | 0.155 kg |
| STBNDP1010 | Basic network interface module | 40 mm | 128.3 mm | 70 mm | — |
| STBNDN1010 | Basic network interface module | 40 mm | 128.3 mm | 70 mm | — |
| STBNCO1010 | Basic network interface module | 40 mm | 128.3 mm | 70 mm | 0.135 kg |
| STBEPI2145 | Parallel interface module | 28.1 mm | 128.3 mm | 170 mm | 0.165 kg |
| STBEHC3020 | Counter module | 28.1 mm | 128.3 mm | 70 mm | — |
| STBDRC3210 | Standard digital output module | 18.4 mm | 128.3 mm | 70 mm | 0.13 kg |
| STBDRA3290 | Standard digital output module | 28.1 mm | 128.3 mm | 70 mm | 0.13 kg |
| STBDDO3600K | Standard digital output kit | 13.9 mm | 128.3 mm | 70 mm | 0.114 kg |
| STBDDO3600 | Standard digital output module | 13.9 mm | 128.3 mm | 70 mm | 0.114 kg |
| STBDDO3230 | Standard digital output module | 13.9 mm | 128.3 mm | 70 mm | 0.116 kg |
| STBDDO3410 | Standard digital output module | 13.9 mm | 128.3 mm | 70 mm | 0.11 kg |
| STBDDO3200 | Standard digital output module | 13.9 mm | 128.3 mm | 70 mm | 0.112 kg |

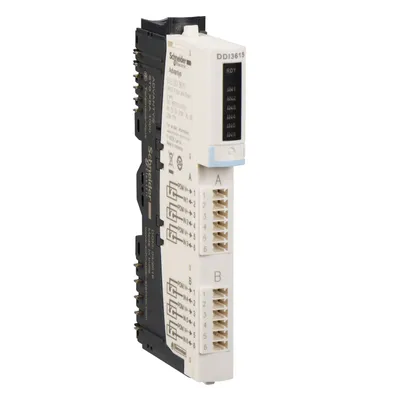

| STBDDI3425 | Basic digital input module | 18.4 mm | 125 mm | 65.1 mm | 0.111 kg |
| STBDDI3610 | Standard digital input module | 18.4 mm | 125 mm | 65.1 mm | 0.112 kg |
| STBDDI3420 | Standard digital input module | 18.4 mm | 125 mm | 65.1 mm | 0.111 kg |
| STBDDI3230 | Standard digital input module | 18.4 mm | 125 mm | 65.1 mm | 0.11 kg |
| STBDAI5230 | Standard digital input module | 18.4 mm | 125 mm | 65.1 mm | 0.12 kg |
| STBDAO8210 | Standard digital output module | 18.4 mm | 128.3 mm | 70 mm | 0.125 kg |
| STBDAO5260 | Standard digital output module | 18.4 mm | 128.3 mm | 70 mm | 0.067 kg |
| STBDAI7220 | Standard digital input module | 18.4 mm | 125 mm | 65.1 mm | 0.122 kg |
| STBDAI5260 | Standard digital input module | 18.4 mm | 125 mm | 65.1 mm | 0.065 kg |
Common to all listed parts
| Range of product | Modicon STB distributed I/O solution |
| Marking | CE |
| Relative humidity | 95 % at 60 °C without condensation |
