ACS580-01 Parts
Compare ACS580-01
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Output Current, Normal Use (In) | Output Current, Light-Overload Use (ILD) | Output Current, Heavy-Duty Use (IHD) | Output Power, Normal Use (Pn) | Output Power, Light-Overload Use (PLD) |
|---|---|---|---|---|---|
| ACS580-01-039A-4+N7511+J404 | 38 A A | 36.1 A A | 31.6 A A | 18.5 kW kW | 18.5 kW kW |

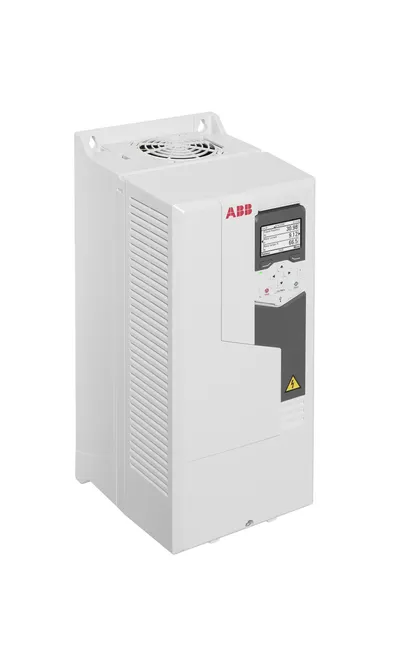

| ACS580-01-033A-4+N7511+0J400+P944 | 32 A A | 30.4 A A | 24.6 A A | 15 kW kW | 15.0 kW kW |
| ACS580-01-02A7-4+N7511+0J400+P944 | 2.6 A A | 2.5 A A | 1.8 A A | 0.75 kW kW | 0.75 kW kW |

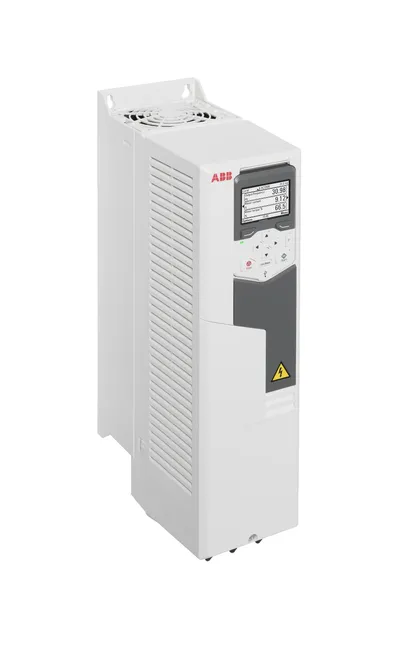

| ACS580-01-026A-4+N7511+0J400+P944 | 25 A A | 23.8 A A | 17.0 A A | 11 kW kW | 11.0 kW kW |
| ACS580-01-033A-4+N7511+J404 | 32 A A | 30.4 A A | 24.6 A A | 15 kW kW | 15.0 kW kW |
| ACS580-01-046A-4+N7511+J404 | 45 A A | 42.8 A A | 37.7 A A | 22 kW kW | 22.0 kW kW |
| ACS580-01-04A1-4+N7511+0J400+P944 | 4 A A | 3.8 A A | 3.3 A A | 1.5 kW kW | 1.5 kW kW |
| ACS580-01-018A-4+N7511+0J400+P944 | 17 A A | 16.2 A A | 12.6 A A | 7.5 kW kW | 7.5 kW kW |
| ACS580-01-04A1-4+B056+X1582 | 4 A A | 3.8 A A | 3.3 A A | 1.5 kW kW | 1.5 kW kW |
| ACS580-01-02A7-4+B056+X1582 | 2.6 A A | 2.5 A A | 1.8 A A | 0.75 kW kW | 0.75 kW kW |
| ACS580-01-03A4-4+B056+X1582 | 3.3 A A | 3.1 A A | 2.6 A A | 1.1 kW kW | 1.1 kW kW |
| ACS580-01-07A3-4+N7511+0J400+P944 | 7.2 A A | 6.8 A A | 5.6 A A | 3 kW kW | 3.0 kW kW |

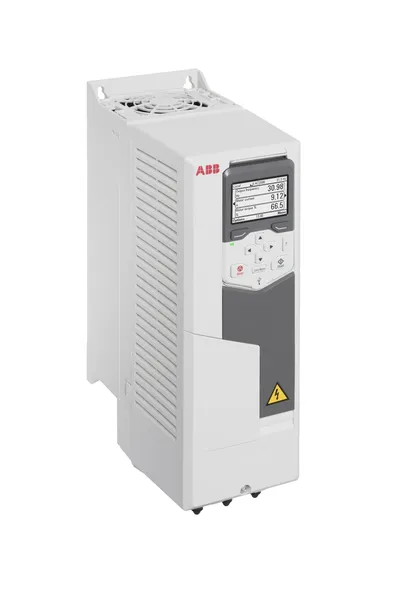

| ACS580-01-09A5-4+N7511+0J400+P944 | 9.4 A A | 8.9 A A | 7.2 A A | 4 kW kW | 4.0 kW kW |
| ACS580-01-05A7-4+B056+X1582 | 5.6 A A | 5.3 A A | 4.0 A A | 2.2 kW kW | 2.2 kW kW |
| ACQ580-01-143A-2+N6050+X1681 | — | — | — | — | — |
| ACS580-01-03A4-4+N7511+P944+K492 | 3.3 A A | 3.1 A A | 2.6 A A | 1.1 kW kW | 1.1 kW kW |
| ACS580-01-046A-4+X1574 | 45 A A | 42.8 A A | 37.7 A A | 22 kW kW | 22.0 kW kW |
| ACQ580-01-075A-2+N6050+X1681 | — | — | — | — | — |
| ACS580-01-073A-4+J404 | 73 A A | 68.4 A A | 61 A A | 37 kW kW | 37 kW kW |

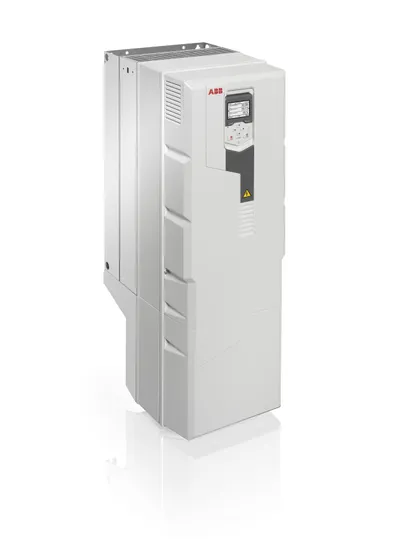

| ACS580-01-206A-4+J404 | 206 A A | 196 A A | 169 A A | 110 kW kW | 110 kW kW |
| ACS580-01-145A-4+J404 | 145 A A | 138 A A | 105 A A | 75 kW kW | 75 kW kW |
| ACS580-01-169A-4+J404 | 169 A A | 161 A A | 145 A A | 90 kW kW | 90 kW kW |
| ACQ580-31-124A-4+N6050+X1681 | — | — | — | — | — |

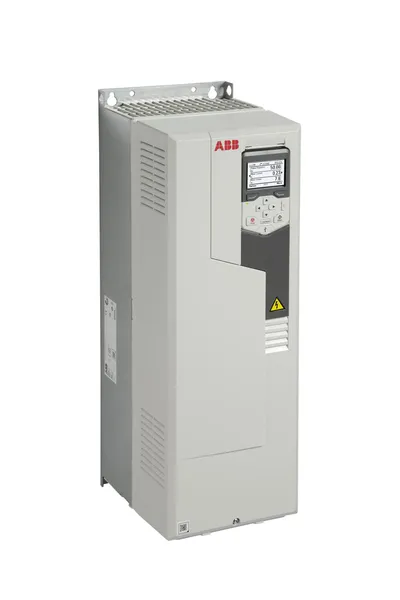

| ACS580-01-073A-4 | 73 A A | 68.4 A A | 61 A A | 37 kW kW | 37 kW kW |
Common to all listed parts
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Number of Phases | 3-phase |
