ACS580-01 Parts
Compare ACS580-01
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Output Current, Normal Use (In) | Output Current, Light-Overload Use (ILD) | Output Current, Heavy-Duty Use (IHD) | Output Power, Heavy-Duty Use (PHD) | Apparent Power Output |
|---|---|---|---|---|---|
| ACS580-01-060A-2+B063 | 60 A A | 59.4 A A | 46.2 A A | 11 kW kW | 23.9 kV·A A |
| ACS580-01-032A-2+B063 | 31.2 A A | 30.8 A A | 24.2 A A | 5.5 kW kW | 11.8 kV·A A |
| ACS580-01-02A7-4+B063+F253 | 2.6 A A | 2.5 A A | 1.8 A A | 0.6 kW kW | 1.8 kV·A A |

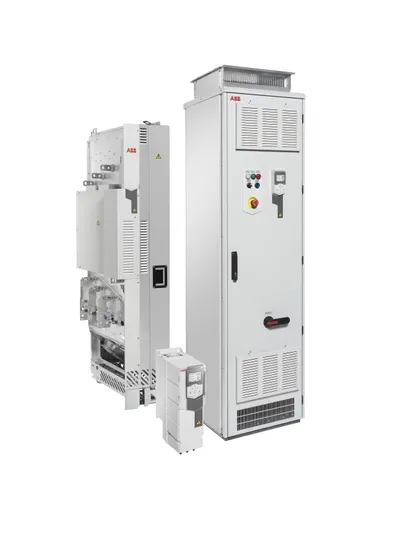

| ACS580-01-046A-4+B063+F253 | 45 A A | 42.8 A A | 37.7 A A | 18.5 kW kW | 31.2 kV·A A |

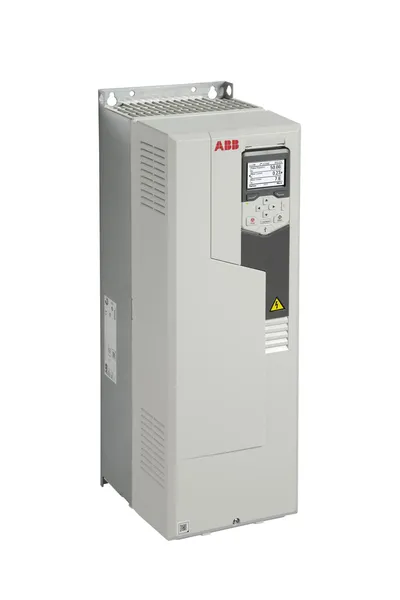

| ACS580-01-073A-4+N7530 | 73 A A | 68 A A | 61 A A | 30.0 kW kW | — |
| ACS580-01-026A-4+N7530 | 25 A A | 23.8 A A | 17.0 A A | 7.5 kW kW | — |
| ACS580-01-07A3-4+N7530 | 7.2 A A | 6.8 A A | 5.6 A A | 2.2 kW kW | — |

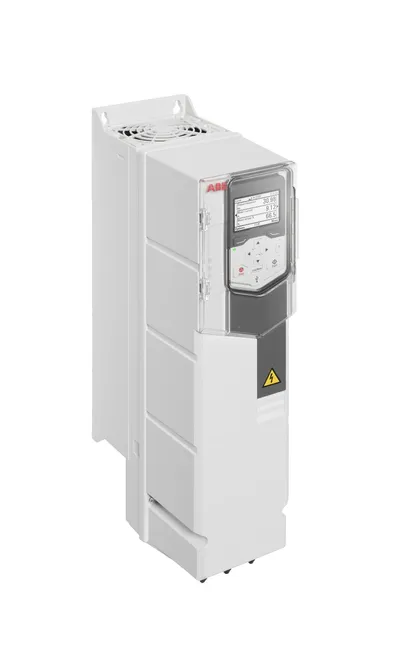

| ACS580-01-032A-2+B056 | 31.2 A A | 30.8 A A | 24.2 A A | 5.5 kW kW | 12 kV·A A |
| ACS580-01-06A7-2+B056 | 6.7 A A | 6.6 A A | 4.6 A A | 0.75 kW kW | 2.7 kV·A A |
| ACS580-01-171A-2+B056 | 171 A A | 169 A A | 143 A A | 37 kW kW | 68 kV·A A |

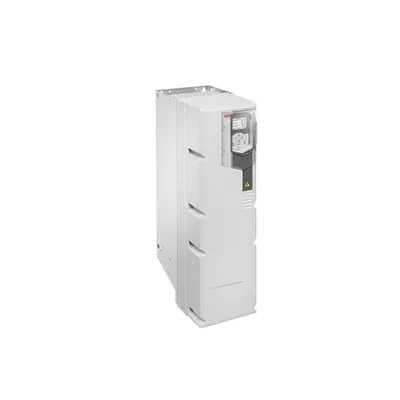

| ACS580-01-115A-2+B056 | 115 A A | 114 A A | 88 A A | 22.0 kW kW | 46 kV·A A |
| ACS580-01-07A6-2+B056 | 7.6 A A | 7.5 A A | 6.6 A A | 1.1 kW kW | 3.0 kV·A A |

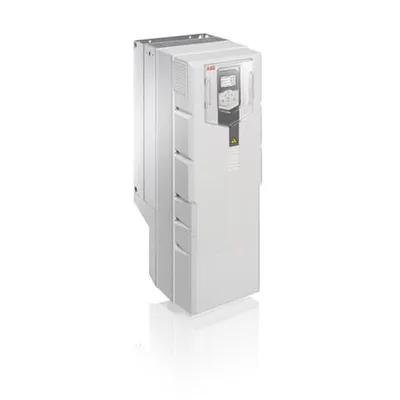

| ACS580-01-276A-2+B056 | 276 A A | 273 A A | 211 A A | 55 kW kW | 110 kV·A A |
| ACS580-01-012A-2+B056 | 12 A A | 11.8 A A | 7.5 A A | 2.2 kW kW | 4.8 kV·A A |
| ACS580-01-025A-2+B056 | 24.5 A A | 24.2 A A | 16.7 A A | 4.0 kW kW | 9.8 kV·A A |
| ACS580-01-144A-2+B056 | 144 A A | 143 A A | 114 A A | 30.0 kW kW | 57 kV·A A |
| ACS580-01-213A-2+B056 | 213 A A | 211 A A | 169 A A | 45 kW kW | 85 kV·A A |
| ACS580-01-018A-2+B056 | 16.9 A A | 16.7 A A | 10.6 A A | 3.0 kW kW | 7.2 kV·A A |
| ACS580-01-04A7-2+B056 | 4.7 A A | 4.6 A A | 3.5 A A | 0.55 kW kW | 1.9 kV·A A |
| ACS580-01-047A-2+B056 | 46.7 A A | 46.2 A A | 30.8 A A | 7.5 kW kW | 19 kV·A A |
| ACS580-01-060A-2+B056 | 60 A A | 59.4 A A | 46.2 A A | 11.0 kW kW | 24 kV·A A |

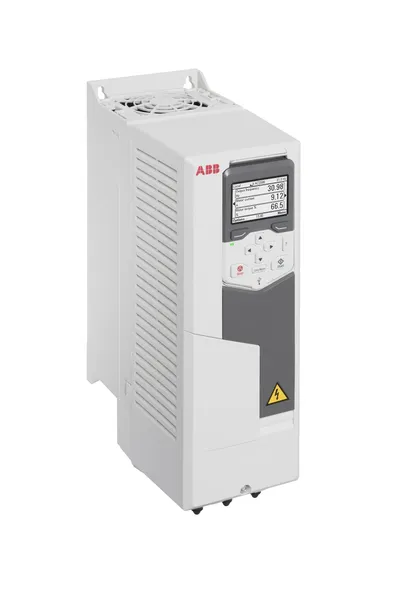

| ACS580-01-05A7-4+N7511+0J400+P944 | 5.6 A A | 5.3 A A | 4.0 A A | 1.5 kW kW | — |
| ACS580-01-12A7-4+N7511+0J400+P944 | 12.6 A A | 12.0 A A | 9.4 A A | 4.0 kW kW | — |
| ACS580-01-03A4-4+N7511+0J400+P944 | 3.3 A A | 3.1 A A | 2.6 A A | 0.8 kW kW | — |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Number of Phases | 3-phase |
| Frequency (f) | 47.5 ... 63 Hz Hz |
| Efficiency Level | IE2 |
