ACS380 Parts
ABB
ACS380-040C-02A6-4+K454+L515+L535ACS380-040C-02A6-4+K454 +L515+L535 – LV AC machinery drive module, IEC: Pn 0.75 kW
ABB
ACS380-040C-04A0-4+X1607+L535ACS380-040C-04A0-4 +X1607+L535 – LV AC machinery drive module, IEC: Pn 1.5 kW
Compare ACS380
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Output Current, Normal Use (In) | Output Current, Light-Overload Use (ILD) | Output Current, Heavy-Duty Use (IHD) | Output Power, Light-Overload Use (PLD) | Output Power, Heavy-Duty Use (PHD) |
|---|---|---|---|---|---|
| ACS380-040C-09A4-4+L538 | 9.4 A A | 8.9 A A | 7.2 A A | 4 kW kW | 3 kW kW |
| ACS380-040C-17A0-4+L538 | 17 A A | 16.2 A A | 12.6 A A | 7.5 kW kW | 5.5 kW kW |

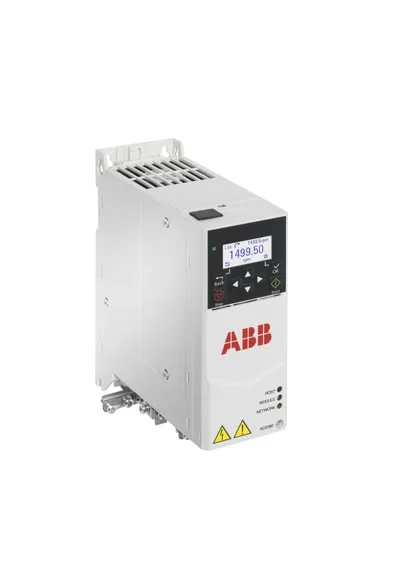

| ACS380-040C-07A2-4+L538 | 7.2 A A | 6.8 A A | 5.6 A A | 3 kW kW | 2.2 kW kW |

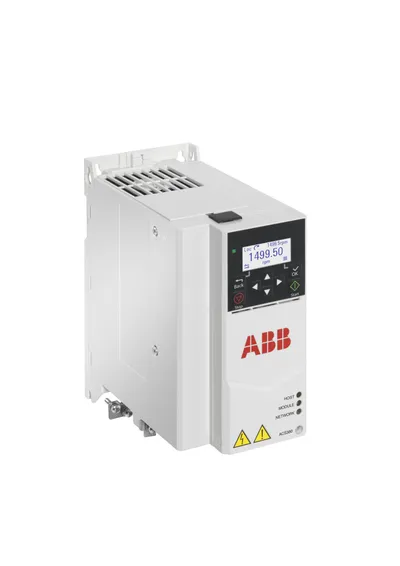

| ACS380-040C-12A6-4+L538 | 12.6 A A | 12 A A | 9.4 A A | 5.5 kW kW | 4 kW kW |

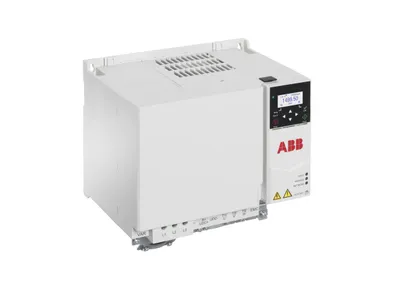

| ACS380-040C-050A-4+K469 | 50 A A | 48 A A | 45 A A | 22 kW kW | 22 kW kW |
| ACS380-040C-03A3-4+L538 | 3.3 A A | 3.1 A A | 2.6 A A | 1.1 kW kW | 0.75 kW kW |
| ACS380-040C-04A0-4+L538 | 4 A A | 3.8 A A | 3.3 A A | 1.5 kW kW | 1.1 kW kW |
| ACS380-040C-05A6-4+L538 | 5.6 A A | 5.3 A A | 4 A A | 2.2 kW kW | 1.5 kW kW |
| ACS380-040C-01A8-4+K469 | 1.8 A A | 1.7 A A | 1.2 A A | 0.55 kW kW | 0.37 kW kW |
| ACS380-040C-04A0-4+K469 | 4 A A | 3.8 A A | 3.3 A A | 1.5 kW kW | 1.1 kW kW |
| ACS380-042S-04A0-4 | 4 A A | 3.8 A A | 3.3 A A | 1.5 kW kW | 1.1 kW kW |
| ACS380-040C-02A6-4+K469 | 2.6 A A | 2.5 A A | 1.8 A A | 0.75 kW kW | 0.55 kW kW |
| ACS380-042S-01A8-4 | 1.8 A A | 1.7 A A | 1.2 A A | 0.55 kW kW | 0.37 kW kW |
| ACS380-040C-04A0-4+K491+L515+L535 | 4.0 A A | 3.8 A A | 3.3 A A | 1.5 kW kW | 1.1 kW kW |
| ACS380-040C-09A4-4+K491+L515+L535 | 9.4 A A | 8.9 A A | 7.2 A A | 4.0 kW kW | 3.0 kW kW |
| ACS380-040C-02A6-4+K454+L515+L535 | 2.6 A A | 2.5 A A | 1.8 A A | 0.75 kW kW | 0.55 kW kW |
| ACS380-040C-03A3-4+X1607+L535 | 3.3 A A | 3.1 A A | 2.6 A A | 1.1 kW kW | 0.75 kW kW |
| ACS380-040C-04A0-4+X1607+L535 | 4.0 A A | 3.8 A A | 3.3 A A | 1.5 kW kW | 1.1 kW kW |
| ACS380-042S-02A6-4 | 2.6 A A | 2.5 A A | 1.8 A A | 0.75 kW kW | 0.55 kW kW |
| ACS380-042S-03A3-4 | 3.3 A A | 3.1 A A | 2.6 A A | 1.1 kW kW | 0.75 kW kW |
| ACS380-040C-05A6-4+K469 | 5.6 A A | 5.3 A A | 4 A A | 2.2 kW kW | 1.5 kW kW |
| ACS380-040C-03A3-4+K469 | 3.3 A A | 3.1 A A | 2.6 A A | 1.1 kW kW | 0.75 kW kW |

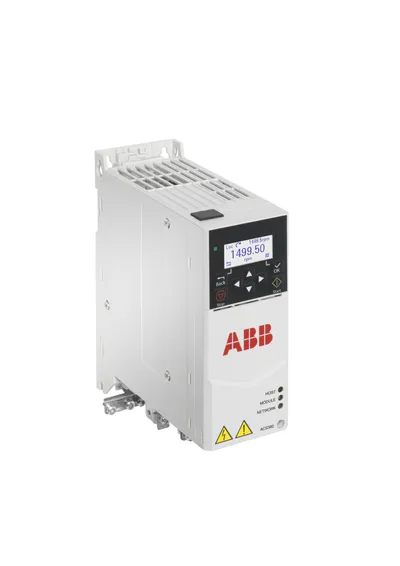

| ACS380-040C-01A8-4+K491+L515+L535 | 1.8 A A | 1.7 A A | 1.2 A A | 0.55 kW kW | 0.37 kW kW |

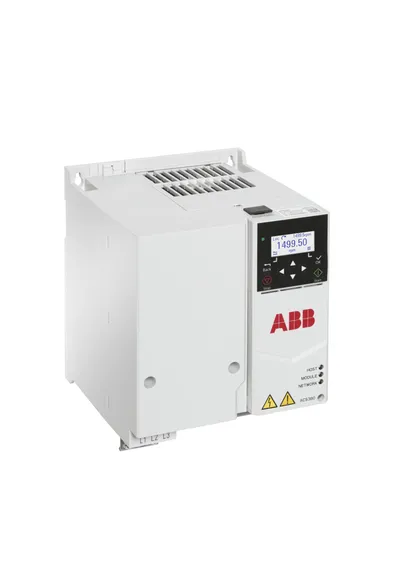

| ACS380-040C-25A0-4+K491+L515+L535 | 25.0 A A | 23.8 A A | 17.0 A A | 11.0 kW kW | 7.5 kW kW |
Common to all listed parts
| Customs Tariff Number | 85044087 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Depth / Length | 176 mm mm |
| Package Level 1 Height | 270 mm mm |
