Carrying plates Parts



Compare Carrying plates
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Workpiece pallet length [lWT] [mm] | Plate weight [mPL] [kg] | Workpiece pallet width [bWT] [mm] | Weight [kg] |
|---|---|---|---|---|

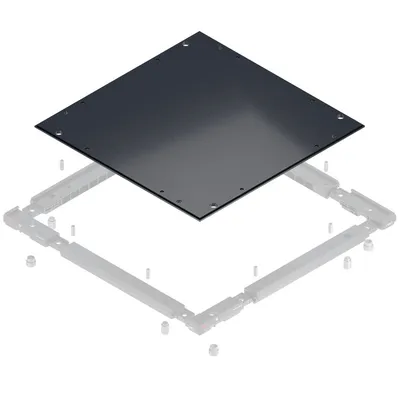

| 3842548687 | 1200 | 54.1 | 1200 | 49 |
| 3842548686 | 1200 | 46.9 | 1040 | 42.4 |
| 3842548685 | 1040 | 40.6 | 1040 | 36.7 |
Common to all listed parts
| Dimension [a] [mm] | 108.5 |
| Dimension [c] [mm] | 428.5 |
| Dimension [d] [mm] | 643.5 |
| Plate thickness [dPL] [mm] | 12.7 |
| Workpiece pallet total weight [mG] [kg] | 100 |
| Dimension b [mm] | 323.5 |
| Flatness [mm] | 1.2 |
| Material | Aluminum |
