Carrying plates Parts
Compare Carrying plates
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimension [c] [mm] | Dimension [d] [mm] | Plate weight [mPL] [kg] | Workpiece pallet width [bWT] [mm] | Weight [kg] |
|---|---|---|---|---|---|
| 3842548412 | 595 | 595 | 32.5 | 800 | 32.5 |
| 3842548693 | 595 | 595 | 21.6 | 800 | 21.63 |
| 3842548411 | 595 | 435 | 25.9 | 640 | 25.94 |
| 3842548692 | 595 | 435 | 17.3 | 640 | 17.26 |
| 3842548410 | 595 | 275 | 19.4 | 480 | 19.37 |
| 3842548691 | 595 | 275 | 12.9 | 480 | 12.88 |

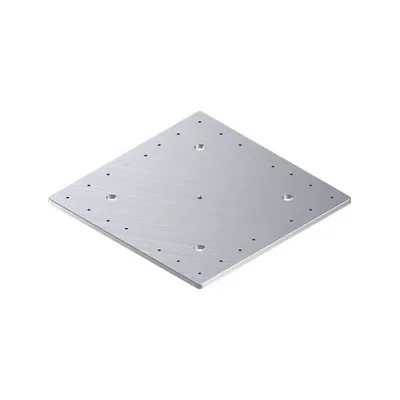

| 3842548439 | 595 | 195 | 16.1 | 400 | 16.09 |
| 3842548440 | 595 | 195 | 10.7 | 400 | 10.69 |
| 3842548409 | 435 | 435 | 20.7 | 640 | 20.69 |
| 3842548690 | 435 | 435 | 13.8 | 640 | 13.76 |
| 3842548408 | 435 | 275 | 15.4 | 480 | 15.44 |
| 3842548689 | 435 | 275 | 10.3 | 480 | 10.26 |
| 3842548426 | 435 | 195 | 12.8 | 400 | 12.83 |
| 3842548422 | 435 | 195 | 8.5 | 400 | 8.52 |
| 3842523381 | — | — | 16.3 | 640 | 15.3 |
| 3842174383 | — | — | 12.3 | 480 | 11.38 |

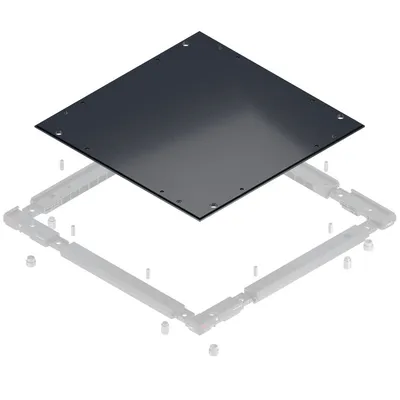

| 3842174378 | — | — | 10.4 | 400 | 9.3 |
| 3842548407 | 275 | 275 | 11.5 | 480 | 11.51 |
| 3842548688 | 275 | 275 | 7.6 | 480 | 7.64 |
| 3842548425 | 295 | 195 | 9.5 | 400 | 9.55 |
| 3842548421 | 295 | 195 | 6.3 | 400 | 6.34 |
| 3842174381 | — | — | 9.3 | 480 | 8.26 |
| 3842174376 | — | — | 7 | 400 | 6.98 |
| 3842174334 | — | — | 6.4 | 320 | 5.53 |
