Drive and return unit AL Parts

Showing 25–29 of 29 parts
Bosch Rexroth 3842546124 – BASE UNIT 240+ AL DIRECT
Bosch Rexroth
3842546124

BASE UNIT 240+ AL DIRECT

Bosch Rexroth 3842546123 – BASE UNIT 160+ AL DIRECT
Bosch Rexroth
3842546123

BASE UNIT 160+ AL DIRECT

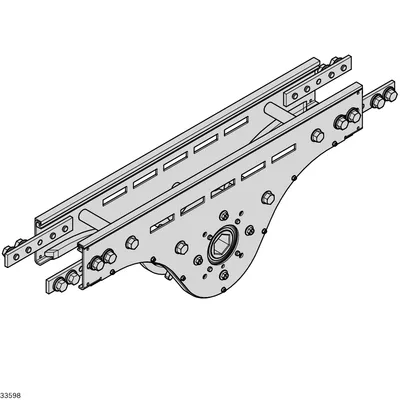

Bosch Rexroth 3842552942 – BASE UNIT 120+ CENTER
Bosch Rexroth
3842552942

BASE UNIT 120+ CENTER

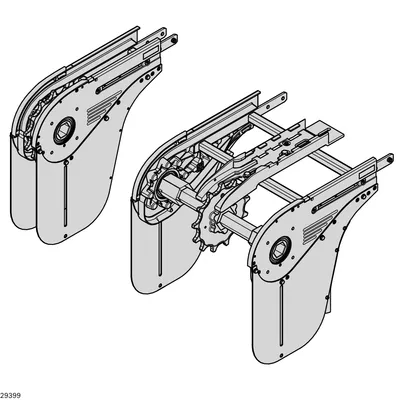

Bosch Rexroth 3842546122 – BASE UNIT 120+ AL DIRECT
Bosch Rexroth
3842546122

BASE UNIT 120+ AL DIRECT

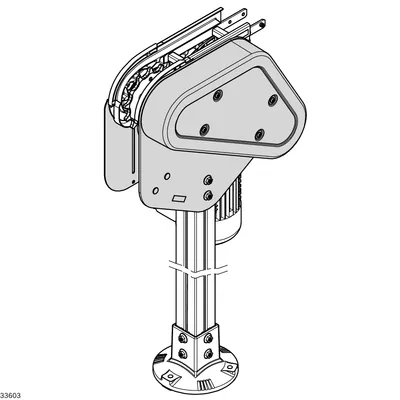

Bosch Rexroth 3842559108 – ADAPTER VF+ TRANSM. AL160-320
Bosch Rexroth
3842559108

ADAPTER VF+ TRANSM. AL160-320

Compare Drive and return unit AL

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNSize [b] [mm]Delivery informationActual chain length [m]Effective sliding rail length [m]Weight [kg]
3842546124240Assembled: chain guards enclosed0,8814x 0,25.58
3842546123160Assembled: chain guards enclosed0,8814x 0,25.13
3842552942120Assembled, profile connector enclosed——4.5
3842546122120Assembled: chain guards enclosed2x 0,20,8814.07
3842559108160; 240; 320Fully assembled——1

Common to all listed parts

Scope of deliveryIncl. fastening material
