BASE UNIT 160+ AL DIRECT
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Drive and return unit AL |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842546123 be shipped?
3842546123 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842546123 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842546123 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842546123, subject to availability and destination.

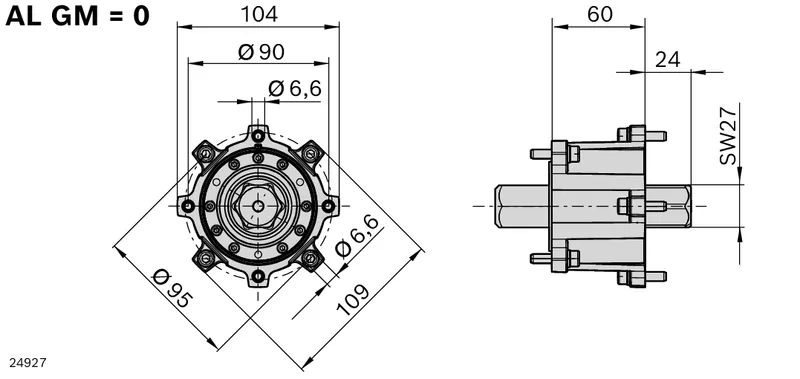

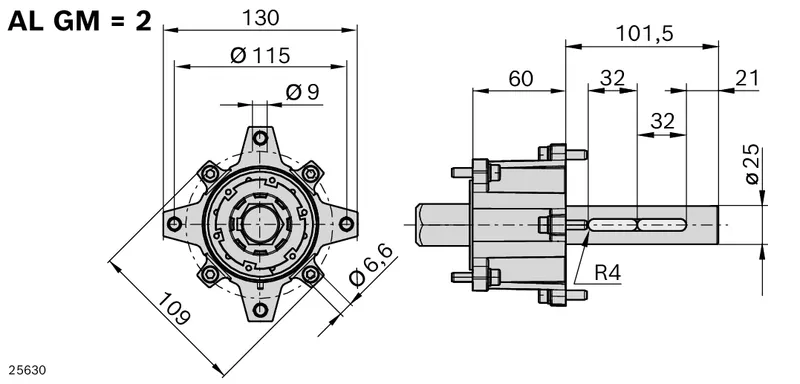

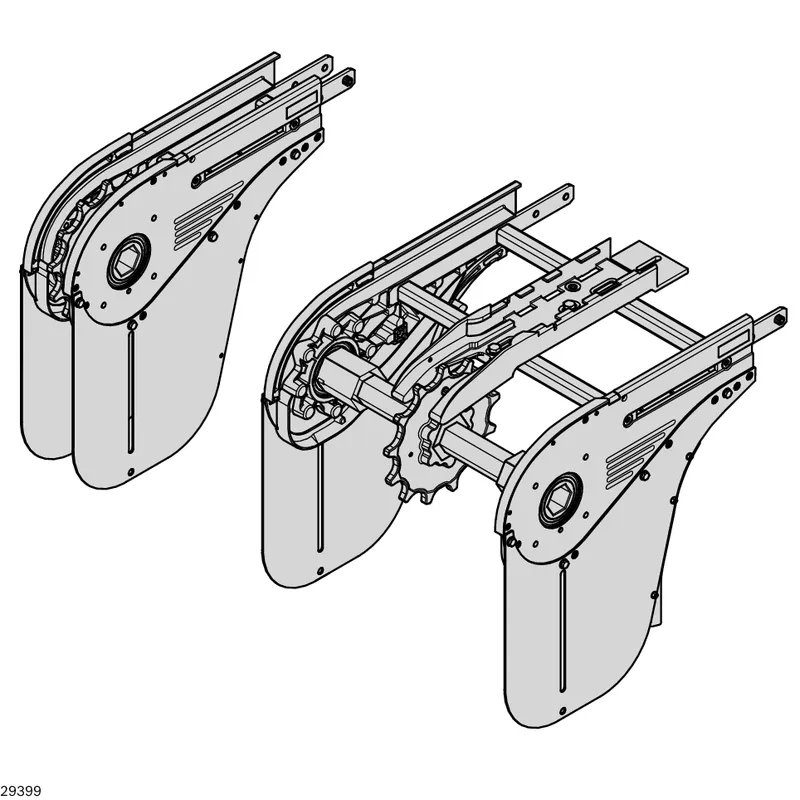

Base unit AL, VFplus 160 dir. Base unit AL direct + drive kit = a complete head drive Reduced noise emission due to slide rails guided in the head drive Installation of the drive kit possible on the right/left (motor, coupling, flange) Drive of a parallel conveyor section or bridge using a hexagonal hollow shaft integrated as standard Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling Implementation of parallel sections with gap dimension down to zero Side elements with slot to attach holders for lateral guides, or similar A chain sprocket must be used to limit the chain slipping back on inclined sections.
Specifications
Specifications

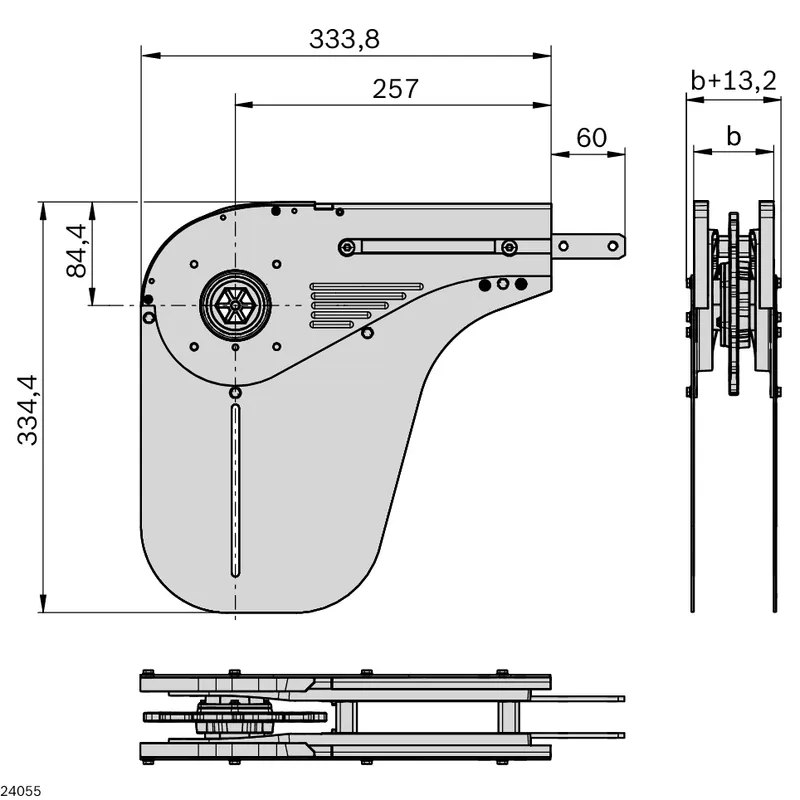

| Size [b] [mm] | 160 |
| Scope of delivery | Incl. fastening material |
| Delivery information | Assembled: chain guards enclosed |
| Material information | Ball bearing: Non-rusting steel 1.4301/FDA; Chain guide: PA; Chain wheel: PA; Connector: Steel, galvanized; Hexagonal shaft up to size 160: PA, from size 160: Non-rusting steel 1.4301 + PA; Housing: Diecast aluminum, powder-coated, silver |
| Actual chain length [m] | 0,881 |
| Effective sliding rail length [m] | 4x 0,2 |
| Required accessories | Drive kit; Motor support; Slide rail: Length calculation |
| Recommended accessories | Active or passive bridge connection kits; Synchronous drive connection kit |
| Weight [kg] | 5.13 |
