Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Guide rail cover | Minimum length Lmin [mm] | Number of sections | Dimension N7 (profiled rail systems) [mm] | Max. length Lmax [mm] |
|---|---|---|---|---|---|
| R184552378 | With cover strip and strip clamps | 160.0 | 8-piece | 14 | — |
| R184552377 | With cover strip and strip clamps | 160.0 | 7-piece | 14 | — |
| R184552376 | With cover strip and strip clamps | 160.0 | 6-piece | 14 | — |
| R184552375 | With cover strip and strip clamps | 160.0 | 5-piece | 14 | — |
| R184552374 | With cover strip and strip clamps | 160.0 | 4-piece | 14 | — |
| R184552373 | With cover strip and strip clamps | 160.0 | 3-piece | 14 | — |
| R184552372 | With cover strip and strip clamps | 160.0 | 2-piece | 14 | — |
| R184552371 | With cover strip and strip clamps | 160.0 | 1-piece | 14 | 5936.0 |

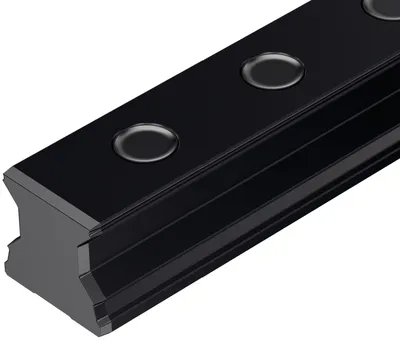

| R184551348 | Plastic caps | 156.0 | 8-piece | — | 3956.0 |
| R184551347 | Plastic caps | 156.0 | 7-piece | — | 3956.0 |
| R184551346 | Plastic caps | 156.0 | 6-piece | — | 3956.0 |
| R184551345 | Plastic caps | 156.0 | 5-piece | — | 3956.0 |
| R184551344 | Plastic caps | 156.0 | 4-piece | — | 3956.0 |
| R184551343 | Plastic caps | 156.0 | 3-piece | — | 3956.0 |
| R184551342 | Plastic caps | 156.0 | 2-piece | — | 3956.0 |
| R184551341 | Plastic caps | 156.0 | 1-piece | — | 5936.0 |

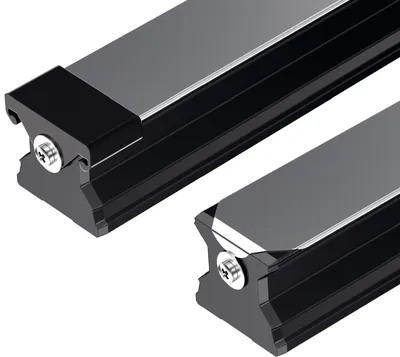

| R184555378 | With cover strip and protective caps | 160.0 | 8-piece | 30 | 3956.0 |
| R184555377 | With cover strip and protective caps | 160.0 | 7-piece | 30 | 3956.0 |
| R184555376 | With cover strip and protective caps | 160.0 | 6-piece | 30 | 3956.0 |
| R184555375 | With cover strip and protective caps | 160.0 | 5-piece | 30 | 3956.0 |
| R184555374 | With cover strip and protective caps | 160.0 | 4-piece | 30 | 3956.0 |
| R184555373 | With cover strip and protective caps | 160.0 | 3-piece | 30 | 3956.0 |
| R184555372 | With cover strip and protective caps | 160.0 | 2-piece | 30 | 3956.0 |
| R184555371 | With cover strip and protective caps | 160.0 | 1-piece | 30 | 5936.0 |
Common to all listed parts
| Version | Roller rail systems |
| Nominal size [mm] | 55 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Number of holes nB (profiled rail systems) | 66 |
| Mass m (kg/m) [kg/m] | 13.1 |
