Roller guide rails Parts
Compare Roller guide rails
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Guide rail mounting | Guide rail cover | Max. length Lmax [mm] | Number of sections |
|---|---|---|---|---|---|

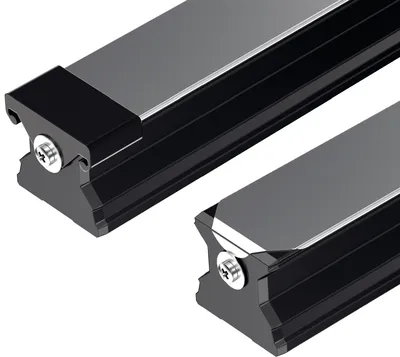

| R184565378 | 65 | For bolting from above | With cover strip and protective caps | 3971.0 | 8-piece |
| R184565377 | 65 | For bolting from above | With cover strip and protective caps | 3971.0 | 7-piece |
| R184565376 | 65 | For bolting from above | With cover strip and protective caps | 3971.0 | 6-piece |
| R184565375 | 65 | For bolting from above | With cover strip and protective caps | 3971.0 | 5-piece |
| R184565374 | 65 | For bolting from above | With cover strip and protective caps | 3971.0 | 4-piece |
| R184565373 | 65 | For bolting from above | With cover strip and protective caps | 3971.0 | 3-piece |
| R184565372 | 65 | For bolting from above | With cover strip and protective caps | 3971.0 | 2-piece |
| R184565371 | 65 | For bolting from above | With cover strip and protective caps | 5921.0 | 1-piece |

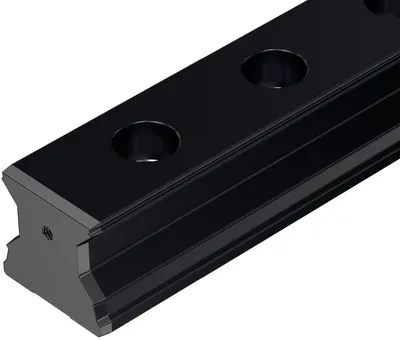

| R184568348 | 65 | For bolting from above | Without cover strip | 3971.0 | 8-piece |
| R184568347 | 65 | For bolting from above | Without cover strip | 3971.0 | 7-piece |
| R184568346 | 65 | For bolting from above | Without cover strip | 3971.0 | 6-piece |
| R184568345 | 65 | For bolting from above | Without cover strip | 3971.0 | 5-piece |
| R184568344 | 65 | For bolting from above | Without cover strip | 3971.0 | 4-piece |
| R184568343 | 65 | For bolting from above | Without cover strip | 3971.0 | 3-piece |
| R184568342 | 65 | For bolting from above | Without cover strip | 3971.0 | 2-piece |
| R184568341 | 65 | For bolting from above | Without cover strip | 5921.0 | 1-piece |

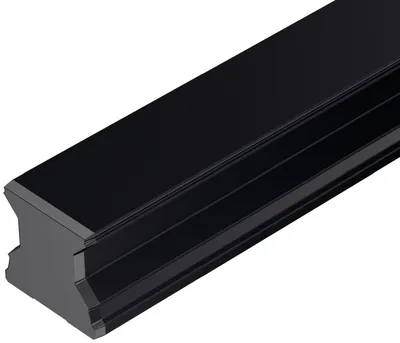

| R184751348 | 55 | For bolting from below | Without cover strip | 3956.0 | 8-piece |
| R184751347 | 55 | For bolting from below | Without cover strip | 3956.0 | 7-piece |
| R184751346 | 55 | For bolting from below | Without cover strip | 3956.0 | 6-piece |
| R184751345 | 55 | For bolting from below | Without cover strip | 3956.0 | 5-piece |
| R184751344 | 55 | For bolting from below | Without cover strip | 3956.0 | 4-piece |
| R184751343 | 55 | For bolting from below | Without cover strip | 3956.0 | 3-piece |
| R184751342 | 55 | For bolting from below | Without cover strip | 3956.0 | 2-piece |
| R184751341 | 55 | For bolting from below | Without cover strip | 3956.0 | 1-piece |
Common to all listed parts
| Version | Roller rail systems |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
