Roller runner blocks Parts
Compare Roller runner blocks
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Length of runner block [mm] | Weight [kg] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] | Dynamic torsional moment load capacity Mt100 [Nm] |
|---|---|---|---|---|---|

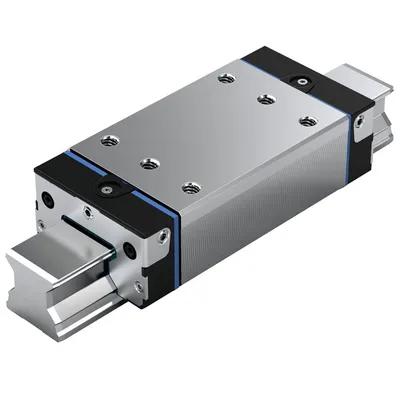

| R18232237X | 115.0 | 0.68 | 76400.0 | 590.0 | 480.0 |

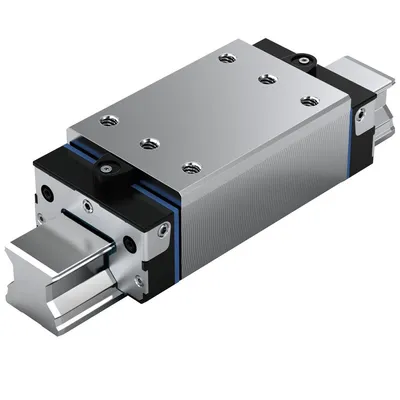

| R18242237X | 115.0 | 0.8 | 76400.0 | 590.0 | 480.0 |
| R18512237X | 97.0 | 0.73 | 59500.0 | 480.0 | 390.0 |

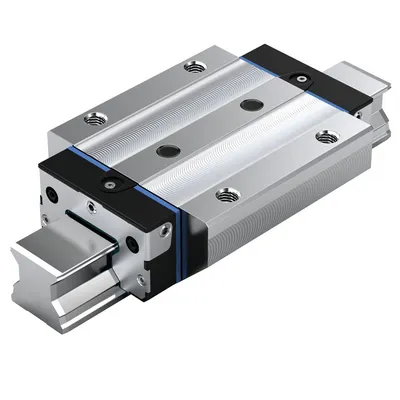

| R18532237X | 115.0 | 0.93 | 76400.0 | 590.0 | 480.0 |
| R186132360 | 371.0 | 62.1 | 1324000.0 | 67100.0 | 54520.0 |
| R186333360 | 476.0 | 89.8 | 1941900.0 | 92700.0 | 75350.0 |

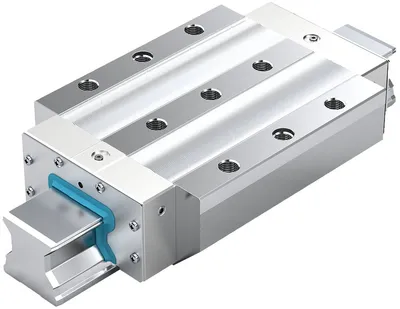

| R186332360 | 476.0 | 89.8 | 1941900.0 | 92700.0 | 75350.0 |
| R186123360 | 296.5 | 32 | 811700.0 | 31600.0 | 25720.0 |
| R186122360 | 296.5 | 32 | 811700.0 | 31600.0 | 25720.0 |
| R186323360 | 380.5 | 42 | 1218000.0 | 43400.0 | 35300.0 |
| R186322360 | 380.5 | 42 | 1218000.0 | 43400.0 | 35300.0 |

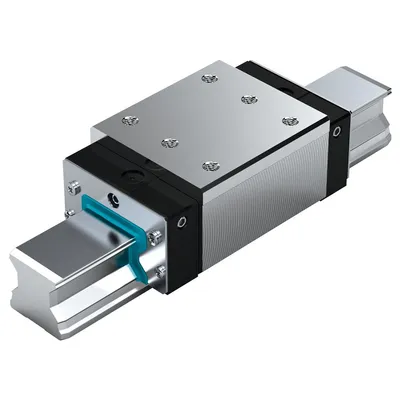

| R182122366 | 91.0 | 0.6 | 53200.0 | 430.0 | 348.0 |
| R18226392X | 207.3 | 8.1 | 456300.0 | 10400.0 | 8430.0 |
| R18226312X | 207.3 | 8.1 | 456300.0 | 10400.0 | 8430.0 |
| R18226322X | 207.3 | 8.1 | 456300.0 | 10400.0 | 8430.0 |
| R18226292X | 207.3 | 8.1 | 456300.0 | 10400.0 | 8430.0 |

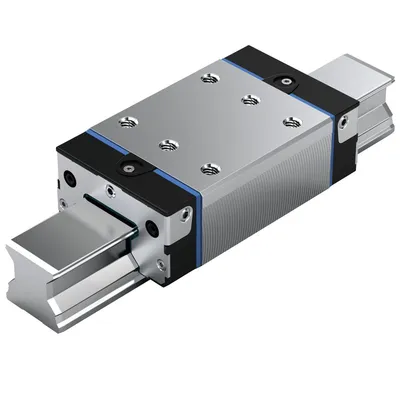

| R18226212X | 207.3 | 8.1 | 456300.0 | 10400.0 | 8430.0 |
| R18226222X | 207.3 | 9.16 | 456300.0 | 10400.0 | 8430.0 |
| R18226232X | 207.3 | 9.16 | 456300.0 | 10400.0 | 8430.0 |
| R18236392X | 255.3 | 10.7 | 606300.0 | 12900.0 | 10510.0 |
| R18236312X | 255.3 | 11.69 | 606300.0 | 12900.0 | 10510.0 |
| R18236322X | 255.3 | 11.65 | 606300.0 | 12900.0 | 10510.0 |
| R18236292X | 255.3 | 10.7 | 606300.0 | 12900.0 | 10510.0 |
| R18236212X | 255.3 | 10.7 | 606300.0 | 12900.0 | 10510.0 |
Common to all listed parts
| Version | Roller rail systems |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Friction coefficient μ | 0.0004 ... 0.001 |
| Note: friction coefficient μ | Without friction of seal |
