ROLLER RUNNER BLOCK RESIST CR RWA-025-SNH-C2-H-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Roller runner blocks |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R182122366 be shipped?
R182122366 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R182122366 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R182122366 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R182122366, subject to availability and destination.

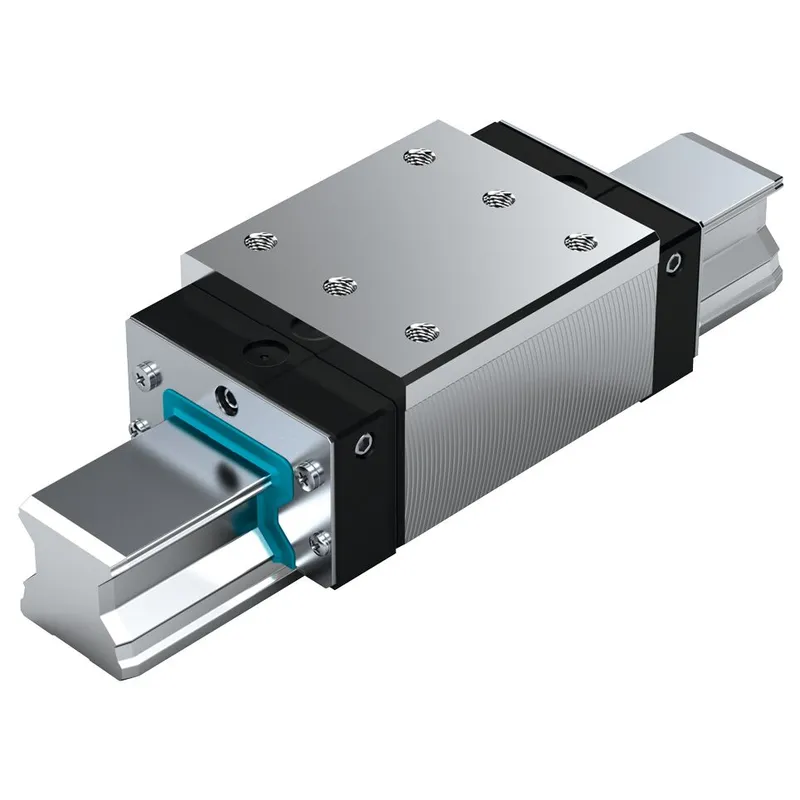

The roller runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:<br>Size 25<br>Format SNH: Width = slimline, length = normal, height = high<br>Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated<br>Preload class C2: Medium preload<br>Accuracy class H: High<br>Without roller chain<br>Preserved<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>No lube connection attached.<br>Runner block body in standard version<br>Overall length of the runner block = 97.0 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Specifications
Specifications
| Version | Roller rail systems |
| Nominal size [mm] | 25 |
| Format | SNH - slimline, normal, high |
| Model | High-precision roller runner block |
| Material (profiled rail systems) | Hard chrome plated |
| Preload class | C2 - Medium preload |
| Accuracy class | H - Highly accurate |
| Seal | SS - Standard seal |
| Width of runner block [mm] | 48.0 |
| Length of runner block [mm] | 91.0 |
| Height of runner block [mm] | 34.0 |
| Height runner block with guide rail [mm] | 40.0 |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: maximum permissible speed vmax | Possible speeds of up to 4 m/s. Service life is limited by heightened stress to plastic parts. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. For operation at lower minus temperatures, please consult us. |
| Friction coefficient μ | 0.0004 ... 0.001 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.6 |
| Dynamic load capacity C50 [N] | 33100.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 26900.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 53200.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 430.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 348.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 690 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 320.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 260.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 520 |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner block. |
| Product information | Oil and grease lubrication from above |

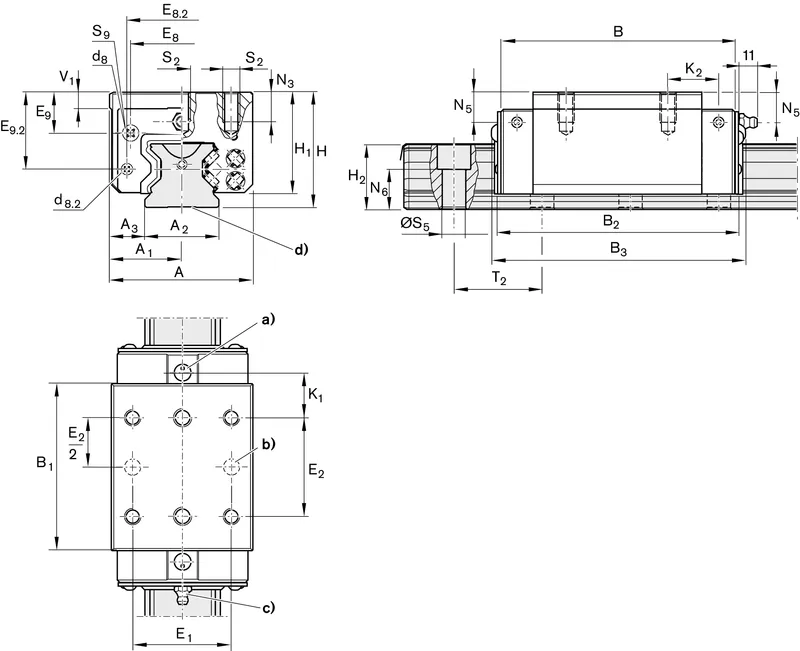

| Dimension A (profiled rail systems) [mm] | 48 |
| Dimension A1 (profiled rail systems) [mm] | 24 |
| Dimension A2 (profiled rail systems) [mm] | 23 |
| Dimension A3 (profiled rail systems) [mm] | 12.5 |
| Dimension B (profiled rail systems) [mm] | 91 |
| Dimension B1 [mm] | 63.5 |
| Dimension B2 (profiled rail systems) [mm] | 93 |
| Dimension B3 [mm] | 97 |
| Dimension diameter S5 (profiled rail systems) | 7 |
| Dimension E1 [mm] | 35 |
| Dimension E2 (profiled rail systems) [mm] | 35 |
| Dimension E8 (profiled rail systems) [mm] | 33.4 |
| Dimension E9 (profiled rail systems) [mm] | 12.4 |
| Dimension H [mm] | 40.0 |
| Dimension H1 (profiled rail systems) [mm] | 34 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 23.6 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 23.4 |
| Dimension K1 (profiled rail systems) [mm] | 19.1 |
| Dimension N3 (profiled rail systems) [mm] | 9 |
| Dimension N5 (profiled rail systems) [mm] | 9.5 |
| Dimension N6 (profiled rail systems) [mm] | 14.3 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M6 |
| Dimension S9 | M3 |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension T2 [mm] | 30 |
| Dimension V1 [mm] | 7.5 |
