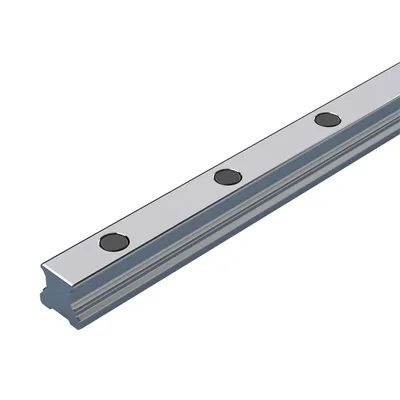

Ball guide rails Compact Line BSCL Parts
























Compare Ball guide rails Compact Line BSCL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Accuracy class | Max. length Lmax [mm] | Number of sections | Weight [kg] |
|---|---|---|---|---|---|
| R205530335 | 35 | H - Highly accurate | 3836.0 | 5-piece | 0 |
| R205530334 | 35 | H - Highly accurate | 3836.0 | 4-piece | 0 |
| R205530333 | 35 | H - Highly accurate | 3836.0 | 3-piece | 0 |
| R205530332 | 35 | H - Highly accurate | 3836.0 | 2-piece | 0 |
| R205530331 | 35 | H - Highly accurate | 3836.0 | 1-piece | 0 |
| R205530351 | 35 | H - Highly accurate | 4150.0 | — | 20.9 |
| R205570238 | 30 | P - Precise | 3836.0 | 8-piece | 0 |
| R205570237 | 30 | P - Precise | 3836.0 | 7-piece | 0 |
| R205570236 | 30 | P - Precise | 3836.0 | 6-piece | 0 |
| R205570235 | 30 | P - Precise | 3836.0 | 5-piece | 0 |
| R205570234 | 30 | P - Precise | 3836.0 | 4-piece | 0 |
| R205570233 | 30 | P - Precise | 3836.0 | 3-piece | 0 |
| R205570232 | 30 | P - Precise | 3836.0 | 2-piece | 0 |
| R205570231 | 30 | P - Precise | 3836.0 | 1-piece | 0 |
| R205570251 | 30 | P - Precise | 4150.0 | — | 14.5 |
| R205570438 | 30 | N - Normal | 3836.0 | 8-piece | 0 |
| R205570437 | 30 | N - Normal | 3836.0 | 7-piece | 0 |
| R205570436 | 30 | N - Normal | 3836.0 | 6-piece | 0 |
| R205570435 | 30 | N - Normal | 3836.0 | 5-piece | 0 |
| R205570434 | 30 | N - Normal | 3836.0 | 4-piece | 0 |
| R205570433 | 30 | N - Normal | 3836.0 | 3-piece | 0 |
| R205570432 | 30 | N - Normal | 3836.0 | 2-piece | 0 |
| R205570431 | 30 | N - Normal | 3836.0 | 1-piece | 0 |
| R205570451 | 30 | N - Normal | 4150.0 | — | 3.6 |
Common to all listed parts
| Version | Ball rail system |
| Format | SNS - Standard guide rail |
| Guide rail mounting | For bolting from above |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 80 |
| Dimension D [mm] | 15 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S5 (profiled rail system) [mm] | 9 |
