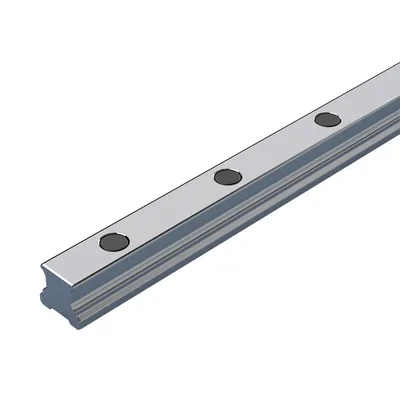

Ball guide rails Compact Line BSCL Parts
Compare Ball guide rails Compact Line BSCL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accuracy class | Max. length Lmax [mm] | Number of sections | Note: permissible ambient temperature (min. ... max.) | Weight [kg] |
|---|---|---|---|---|---|
| R205540238 | P - Precise | 3776.0 | 8-piece | 100°C admissible for a short time. | 0 |
| R205540237 | P - Precise | 3776.0 | 7-piece | 100°C admissible for a short time. | 0 |
| R205540236 | P - Precise | 3776.0 | 6-piece | 100°C admissible for a short time. | 0 |
| R205540235 | P - Precise | 3776.0 | 5-piece | 100°C admissible for a short time. | 0 |
| R205540234 | P - Precise | 3776.0 | 4-piece | 100°C admissible for a short time. | 0 |
| R205540233 | P - Precise | 3776.0 | 3-piece | 100°C admissible for a short time. | 0 |
| R205540232 | P - Precise | 3776.0 | 2-piece | 100°C admissible for a short time. | 0 |
| R205540231 | P - Precise | 3776.0 | 1-piece | 100 °C admissible for a short time. | 0 |
| R205540251 | P - Precise | 4150.0 | — | — | 31.6 |
| R205540438 | N - Normal | 3776.0 | 8-piece | 100°C admissible for a short time. | 0 |
| R205540437 | N - Normal | 3776.0 | 7-piece | 100°C admissible for a short time. | 0 |
| R205540436 | N - Normal | 3776.0 | 6-piece | 100°C admissible for a short time. | 0 |
| R205540435 | N - Normal | 3776.0 | 5-piece | 100°C admissible for a short time. | 0 |
| R205540434 | N - Normal | 3776.0 | 4-piece | 100°C admissible for a short time. | 0 |
| R205540433 | N - Normal | 3776.0 | 3-piece | 100°C admissible for a short time. | 0 |
| R205540432 | N - Normal | 3776.0 | 2-piece | 100°C admissible for a short time. | 0 |
| R205540431 | N - Normal | 3776.0 | 1-piece | 100 °C admissible for a short time. | 0 |
| R205540451 | N - Normal | 4150.0 | — | — | 10.5 |
| R205540338 | H - Highly accurate | 3776.0 | 8-piece | 100°C admissible for a short time. | 0 |
| R205540337 | H - Highly accurate | 3776.0 | 7-piece | 100°C admissible for a short time. | 0 |
| R205540336 | H - Highly accurate | 3776.0 | 6-piece | 100°C admissible for a short time. | 0 |
| R205540335 | H - Highly accurate | 3776.0 | 5-piece | 100°C admissible for a short time. | 0 |
| R205540334 | H - Highly accurate | 3776.0 | 4-piece | 100°C admissible for a short time. | 0 |
| R205540333 | H - Highly accurate | 3776.0 | 3-piece | 100°C admissible for a short time. | 0 |
Common to all listed parts
| Version | Ball rail system |
| Nominal size [mm] | 45 |
| Format | SNS - Standard guide rail |
| Guide rail mounting | For bolting from above |
| Mass m (kg/m) [kg/m] | 7.7 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 105 |
| Dimension A2 (profiled rail systems) [mm] | 45 |
