High-precision ball runner block BSHP Parts

Bosch Rexroth

R166271420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-SKS-C1-N-1

Bosch Rexroth

R166271321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-SKS-C1-H-1

Bosch Rexroth

R166271320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-SKS-C1-H-1

Bosch Rexroth

R166279421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-SKS-C0-N-1

Bosch Rexroth

R166279420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-SKS-C0-N-1

Bosch Rexroth

R166279321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-SKS-C0-H-1

Bosch Rexroth

R166279320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-SKS-C0-H-1

Bosch Rexroth

R166171421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

R166171420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C1-N-1

Bosch Rexroth

R166171321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

R166171320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C1-H-1

Bosch Rexroth

R166179421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C0-N-1

Bosch Rexroth

R166179420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C0-N-1

Bosch Rexroth

R166179321

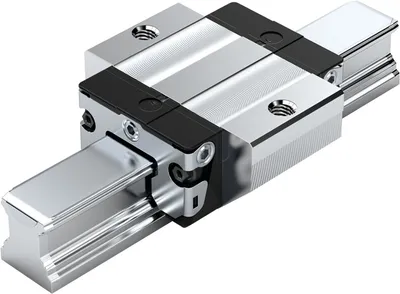

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C0-H-1

Bosch Rexroth

R166179320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-030-FKS-C0-H-1

Bosch Rexroth

R166221421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C1-N-1

Bosch Rexroth

R166221420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C1-N-1

Bosch Rexroth

R166221321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C1-H-1

Bosch Rexroth

R166221320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C1-H-1

Bosch Rexroth

R166229421

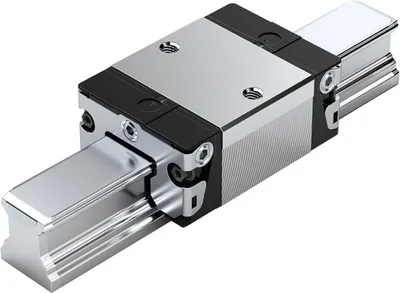

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C0-N-1

Bosch Rexroth

R166229420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C0-N-1

Bosch Rexroth

R166229321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C0-H-1

Bosch Rexroth

R166229320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-SKS-C0-H-1

Bosch Rexroth

R166121421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-025-FKS-C1-N-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Width of runner block [mm]	Weight [kg]	Dimension A (profiled rail systems) [mm]	Dimension A1 (profiled rail systems) [mm]	Dimension A3 (profiled rail systems) [mm]
R166271420	60.0	0.67	60	30	16
R166271321	60.0	0.6	60	30	16
R166271320	60.0	0.6	60	30	16
R166279421	60.0	0.6	60	30	16
R166279420	60.0	0.66	60	30	16
R166279321	60.0	0.6	60	30	16
R166279320	60.0	0.6	60	30	16
R166171421	90.0	0.8	90	45	31
R166171420	90.0	0.8	90	45	31
R166171321	90.0	0.8	90	45	31
R166171320	90.0	0.8	90	45	31
R166179421	90.0	0.8	90	45	31
R166179420	90.0	0.8	90	45	31
R166179321	90.0	0.8	90	45	31
R166179320	90.0	0.8	90	45	31
R166221421	48.0	0.35	48	24	12.5
R166221420	48.0	0.4	48	24	12.5
R166221321	48.0	0.35	48	24	12.5
R166221320	48.0	0.35	48	24	12.5
R166229421	48.0	0.35	48	24	12.5
R166229420	48.0	0.39	48	24	12.5
R166229321	48.0	0.35	48	24	12.5
R166229320	48.0	0.35	48	24	12.5
R166121421	70.0	0.5	70	35	23.5

Common to all listed parts

Version	Ball rail system
Model	Super ball runner block
Material (profiled rail systems)	Carbon steel
Ball chain	Without ball chain (standard)
Self-aligning for compensation of misalignments	With self-alignment
Lubrication	Pre-lubricated, preserved
Maximum acceleration rate amax [m/s²]	500.0
Maximum permissible linear speed vmax [m/s]	5.0
