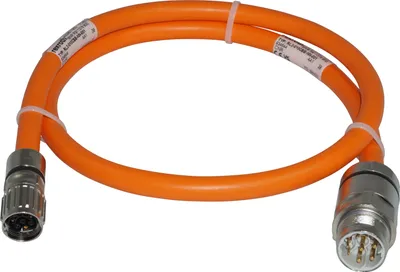

RL2 Motor Power Cables Parts
























Compare RL2 Motor Power Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Compatible Motors | Connection type of motor connector | cable length [m] | Cross Section | Weight [kg] |
|---|---|---|---|---|---|
| R911380009 | MS2x with terminal box T | T (M40) terminal box | 30.0 | 16 | 0 |
| R911380008 | MS2x with terminal box T | T (M40) terminal box | 20.0 | 16 | 0 |
| R911380007 | MS2x with terminal box T | T (M40) terminal box | 15.0 | 16 | 0 |
| R911380006 | MS2x with terminal box T | T (M40) terminal box | 10.0 | 16 | 0 |
| R911380005 | MS2x with terminal box T | T (M40) terminal box | 7.5 | 16 | 0 |
| R911380004 | MS2x with terminal box T | T (M40) terminal box | 5.0 | 16 | 0 |
| R911380002 | MS2x with terminal box T | T (M40) terminal box | 4.0 | 16 | 0 |
| R911380001 | MS2x with terminal box T | T (M40) terminal box | 3.0 | 16 | 0 |
| R911380000 | MS2x with terminal box T | T (M40) terminal box | 2.5 | 16 | 0 |
| R911379999 | MS2x with terminal box T | T (M40) terminal box | 2.0 | 16 | 0 |
| R911379998 | MS2x with terminal box T | T (M40) terminal box | 1.0 | 16 | 0 |
| R911381517 | MS2x with terminal box T | T (M40) terminal box | 30.0 | 10 | 0 |
| R911381516 | MS2x with terminal box T | T (M40) terminal box | 25.0 | 10 | 0 |
| R911381515 | MS2x with terminal box T | T (M40) terminal box | 20.0 | 10 | 0 |
| R911381514 | MS2x with terminal box T | T (M40) terminal box | 15.0 | 10 | 0 |
| R911381513 | MS2x with terminal box T | T (M40) terminal box | 10.0 | 10 | 0 |
| R911381512 | MS2x with terminal box T | T (M40) terminal box | 7.5 | 10 | 0 |
| R911375243 | MS2x with terminal box T | T (M40) terminal box | 5.0 | 10 | 4.8 |
| R911381511 | MS2x with terminal box T | T (M40) terminal box | 4.0 | 10 | 0 |
| R911381510 | MS2x with terminal box T | T (M40) terminal box | 3.0 | 10 | 0 |
| R911381509 | MS2x with terminal box T | T (M40) terminal box | 2.0 | 10 | 0 |
| R911381508 | MS2x with terminal box T | T (M40) terminal box | 1.0 | 10 | 0 |
| R911400422 | MS2x with plug A/B | M58 power connector | 15.0 | 35 | 0 |
| R911400421 | MS2x with plug A/B | M58 power connector | 10.0 | 35 | 0 |
Common to all listed parts
| Cable Variant | Power Cable |
| Cable Type | ready-made |
| Compatible Drives | IndraDrive |
| Cable Model | Basic |
| Motor-Drive-Connection | extension cable |
| Dynamic bending radius | 7.5xD |
| Static bending radius | 5xD |
| Bending cycles | 5 million |
