10 mm² motor cables Parts
Available on requestB&R 8BCM0012.1523A-0 – ACOPOSmulti motor cable, length 12 mMPN: 8BCM0012.1523A-0 · B&R
Price on request
Request a quote
Available on requestB&R 8BCM0014.1523A-0 – ACOPOSmulti motor cable, length 14 mMPN: 8BCM0014.1523A-0 · B&R
Price on request
Request a quote
Available on requestB&R 8BCM0011.1523A-0 – ACOPOSmulti motor cable, length 11 mMPN: 8BCM0011.1523A-0 · B&R
Price on request
Request a quote
Available on requestB&R 8BCM0008.1523A-0 – ACOPOSmulti motor cable, length 8 mMPN: 8BCM0008.1523A-0 · B&R
Price on request
Request a quote
Compare 10 mm² motor cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power lines – Wire insulation | Temperature – Moving | Temperature – Static | Dimensions – Length | Weight |
|---|---|---|---|---|---|
| 8BCM0004.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 4 m | 2.2 kg |
| 8BCM0009.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 9 m | 4.9 kg |
| 8BCM0012.1523A-0 | Special thermoplastic material | -10 to 80°C | -40 to 90°C | 12 m | 9.96 kg |
| 8BCM0014.1523A-0 | Special thermoplastic material | -10 to 80°C | -40 to 90°C | 14 m | 11.48 kg |
| 8BCM0011.1523A-0 | PP | -20°C to 80°C | -20°C to 90°C | 11 m | 6 kg |
| 8BCM0008.1523A-0 | PP | -20°C to 80°C | -20°C to 90°C | 8 m | 4.3 kg |
| 8BCM0005.1525B-0 | PP | -20°C to +80°C | -20°C to +90°C | 5 m | 2.7 kg |
| 8BCM0006.1525B-0 | PP | -20°C to +80°C | -20°C to +90°C | 6 m | 3.2 kg |

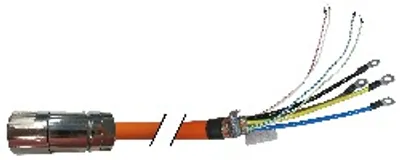

| 8BCM0007.1525B-0 | PP | -20°C to +80°C | -20°C to +90°C | 7 m | 3.7 kg |
| 8BCM0010.1525B-0 | PP | -20°C to +80°C | -20°C to +90°C | 10 m | 5.4 kg |
| 8BCM0015.1525B-0 | PP | -20°C to +80°C | -20°C to +90°C | 15 m | 8.1 kg |
| 8BCM0020.1525B-0 | PP | -20°C to +80°C | -20°C to +90°C | 20 m | 10.8 kg |
| 8BCM0025.1525B-0 | PP | -20°C to +80°C | -20°C to +90°C | 25 m | 13.5 kg |
| 8BCM0002.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 2 m | 1.1 kg |
| 8BCM0003.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 3 m | 1.6 kg |
| 8BCM0005.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 5 m | 2.7 kg |
| 8BCM0006.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 6 m | 3.2 kg |
| 8BCM0007.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 7 m | 3.8 kg |
| 8BCM0010.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 10 m | 5.4 kg |
| 8BCM0015.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 15 m | 8.1 kg |
| 8BCM0020.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 20 m | 10.8 kg |
| 8BCM0025.1523A-0 | PP | -20°C to +80°C | -20°C to +90°C | 25 m | 13.5 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4x 10 mm² + (2x 0.75 mm²)C + (2x 1.5 mm²)C |
| Power lines – Quantity | 4 |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
| Power lines – Cross section | 10 mm² |
