B&R 8BCM0014.1523A-0 – ACOPOSmulti motor cable, length 14 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 10 mm² motor cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 11.48 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8BCM0014.1523A-0 be shipped?
8BCM0014.1523A-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCM0014.1523A-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCM0014.1523A-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCM0014.1523A-0, subject to availability and destination.

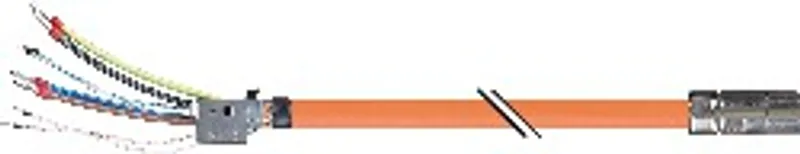

ACOPOSmulti motor cable, length 14 m, 4x 10 mm² + 2x 0.75 mm² + 2x 1.5 mm², 8-pin female speedtec motor connector size 1.5, integrated shield plate, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4x 10 mm² + (2x 0.75 mm²)C + (2x 1.5 mm²)C |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
Cable construction
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | Special thermoplastic material |
| Power lines – Wire colors | Black, brown, blue, yellow/green |
| Power lines – Variant | Tinned copper stranded wire |
| Power lines – Cross section | 10 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | White, white/red, white/blue, white/green |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Cross section | 1.5 mm² |
| Signal line – Shield | Individually shielded in pairs, tinned copper braiding, optical coverage >85% and foil shield |
| Signal line – Stranding | White with white/red and white/blue with white/green |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage >85% and foil shield |
Connector
| Type | 8-pin female speedtec motor connector, size 1.5 |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Degree of protection per EN 60529 | IP67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 3 kV |
| Test voltage – Wire - Shield | 3 kV |
| Conductor resistance – Power lines | ≤0.01 Ω |
| Conductor resistance – Signal line | ≤0.07 Ω |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 64.6 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 54.6 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 68.3 A |
| Insulation resistance | >40 GΩ |
Ambient conditions
| Temperature – Moving | -10 to 80°C |
| Temperature – Static | -40 to 90°C |
Mechanical properties
| Dimensions – Length | 14 m |
| Dimensions – Diameter | 20.1 mm ±0.7 mm |
| Bend radius – Single bend | >62 mm |
| Bend radius – Moving | ≥156 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles " data-placement="top" data-html="true" data-container="body" data-content="At an ambient temperature of 20°C and bend radius of 200 mm."> | ≥3000000 |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 11.48 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8BCM0014.1523A-0 | PDF · 216 KB · 1.1 (12/06/2023) - EN |
Certificates (3)
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| UK Declaration ACOPOSmicro | PDF · 109 KB · 2022-09 (09/12/2022) |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
