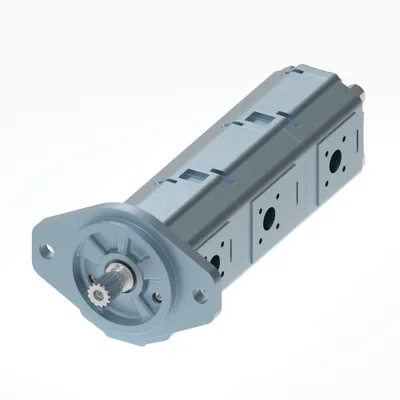

GearMe modular three stage Parts
Compare GearMe modular three stage
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | B: 1st stage displacement | C: 2nd stage displacement | D: 3rd stage displacement | M: 2nd stage inlet size | P: 3rd stage inlet size |
|---|---|---|---|---|---|
| 181.20.F44.00 | Displacement 11 cc | Displacement 11 cc | Displacement 11 cc | 3/4 GAS | 3/4 GAS |
| 181.20.F41.00 | Displacement 22 cc | Displacement 6,0 cc | Displacement 1,2cc | 13,5x30xM6 | 12x26xM5 |
| 181.20.F40.00 | Displacement 25 cc | Displacement 6,0 cc | Displacement 1,2cc | 13,5x30xM6 | 12x26xM5 |
| 181.20.F39.00 | Displacement 25 cc | Displacement 4,0 cc | Displacement 1,2cc | 13,5x30xM6 | 12x26xM5 |
| 181.20.F38.00 | Displacement 25cc | Displacement 3,2cc | Displacement 1,2cc | 12x26xM5 | 12x26xM5 |
| 181.20.F31.00 | Displacement 19 cc | Displacement 8,0 cc | Displacement 8,0 cc | 20x40xM6 | 20x40xM6 |
| 181.20.F29.00 | Displacement 22 cc | Displacement 22 cc | Displacement 8,0 cc | 20x40xM6 | 20x40xM6 |
| 181.20.F26.00 | Displacement 14 cc | Displacement 6,0 cc | Displacement 6,0 cc | 15x40xM6 | 15x40xM6 |
| 181.20.F24.00 | Displacement 11 cc | Displacement 6,0 cc | Displacement 6,0 cc | 15x40xM6 | 15x40xM6 |
| 181.20.F18.00 | Displacement 17 cc | Displacement 11 cc | Displacement 11 cc | 20x40xM6 | 20x40xM6 |
| 181.20.F14.00 | Displacement 11 cc | Displacement 11 cc | Displacement 4,0 cc | 20x40xM6 | 15x40xM6 |
| 181.20.F13.00 | Displacement 14 cc | Displacement 14 cc | Displacement 11 cc | 20x40xM8 | 13,5x30xM6 |
| 181.20.F10.00 | Displacement 19 cc | Displacement 19 cc | Displacement 11 cc | 20x40xM8 | 13,5x30xM6 |
| 181.20.F08.00 | Displacement 19 cc | Displacement 19 cc | Displacement 11 cc | 20x40xM8 | 13,5x30xM6 |
| 181.20.E96.00 | Displacement 25 cc | Displacement 19 cc | Displacement 6,0 cc | 20x40xM8 | 13,5x30xM6 |
| 181.20.E91.00 | Displacement 14 cc | Displacement 4,0 cc | Displacement 4,0 cc | 15x40xM6 | 15x40xM6 |
| 181.20.E89.00 | Displacement 11 cc | Displacement 8,0 cc | Displacement 8,0 cc | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.E88.00 | Displacement 19 cc | Displacement 6,0 cc | Displacement 4,3cc | 13,5x30xM6 | 12x26xM5 |
| 181.20.E87.00 | Displacement 14 cc | Displacement 14 cc | Displacement 14 cc | 20x40xM8 | 20x40xM8 |
| 181.20.E83.00 | Displacement 22 cc | Displacement 8,0 cc | Displacement 2,2cc | 20x40xM6 | M18x1,5 |
| 181.20.E81.00 | Displacement 19 cc | Displacement 19 cc | Displacement 8,0 cc | 20x40xM8 | 13,5x30xM6 |
| 181.20.E74.00 | Displacement 22 cc | Displacement 22 cc | Displacement 22 cc | 20x40xM6 | 20x40xM6 |
| 181.20.E71.00 | Displacement 11 cc | Displacement 6,0 cc | Displacement 6,0 cc | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.E70.00 | Displacement 25 cc | Displacement 8,0 cc | Displacement 17 cc | 20x40xM6 | 20x40xM6 |
Common to all listed parts
| G_FLANGE GR1+1+1 | Slash |
| O-Ring, Inside Diameter | Slash |
| O: 2nd stage ports position | Std from catalogue |
| OC DELIMITER (-) | - |
| Proposition 65 | Cancer and Reproductive Harm |
| R: 3rd stage ports position | Std from catalogue |
| S: Seals | Std seal |
| Slash separator | Slash |
