Danfoss orbital motor quick selector Parts

Showing 49–72 of 11,614 parts
Danfoss H-100D22F-J – MOTOR-ORBITAL,H SERIES 100 [6.1]
Danfoss
H-100D22F-J

MOTOR-ORBITAL,H SERIES 100 [6.1]

Danfoss H-100CC2XJ – MOTOR-ORBITAL,H SERIES 100 [6.1]
Danfoss
H-100CC2XJ

MOTOR-ORBITAL,H SERIES 100 [6.1]

Danfoss H-100CC2FXJ – MOTOR-ORBITAL,H SERIES 100 [6.1]
Danfoss
H-100CC2FXJ

MOTOR-ORBITAL,H SERIES 100 [6.1]

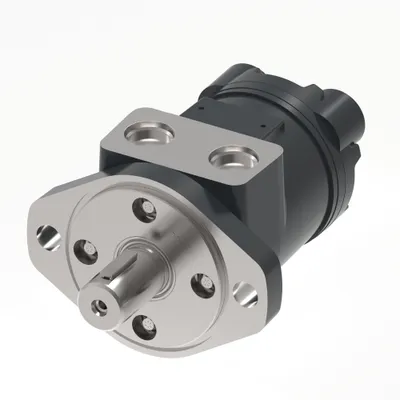

Danfoss H-070DB2XJ – MOTOR-ORBITAL,H SERIES 70 [4.2]
Danfoss
H-070DB2XJ

MOTOR-ORBITAL,H SERIES 70 [4.2]

Danfoss H-070DA4MXJ – MOTOR-ORBITAL,H SERIES 70 [4.2]
Danfoss
H-070DA4MXJ

MOTOR-ORBITAL,H SERIES 70 [4.2]

Danfoss H-070DA4-J – MOTOR-ORBITAL,H SERIES 70 [4.2]
Danfoss
H-070DA4-J

MOTOR-ORBITAL,H SERIES 70 [4.2]

Danfoss H-070BB4M-J – MOTOR-ORBITAL,H SERIES 70 [4.2]
Danfoss
H-070BB4M-J

MOTOR-ORBITAL,H SERIES 70 [4.2]

Danfoss H-070BB2MXJ – MOTOR-ORBITAL,H SERIES 70 [4.2]
Danfoss
H-070BB2MXJ

MOTOR-ORBITAL,H SERIES 70 [4.2]

Danfoss H-070BA2MZXJ – MOTOR-ORBITAL,H SERIES 70 [4.2]
Danfoss
H-070BA2MZXJ

MOTOR-ORBITAL,H SERIES 70 [4.2]

Danfoss H-070AD4-J – MOTOR-ORBITAL,H SERIES 70 [4.2]
Danfoss
H-070AD4-J

MOTOR-ORBITAL,H SERIES 70 [4.2]

Danfoss H-050DB4-J – MOTOR-ORBITAL,H SERIES 50 [3.0]
Danfoss
H-050DB4-J

MOTOR-ORBITAL,H SERIES 50 [3.0]

Danfoss H-050DB2-J – MOTOR-ORBITAL,H SERIES 50 [3.0]
Danfoss
H-050DB2-J

MOTOR-ORBITAL,H SERIES 50 [3.0]

Danfoss H-050BD2M-J – MOTOR-ORBITAL,H SERIES 50 [3.0]
Danfoss
H-050BD2M-J

MOTOR-ORBITAL,H SERIES 50 [3.0]

Danfoss H-050BA2MZXJ – MOTOR-ORBITAL,H SERIES 50 [3.0]
Danfoss
H-050BA2MZXJ

MOTOR-ORBITAL,H SERIES 50 [3.0]

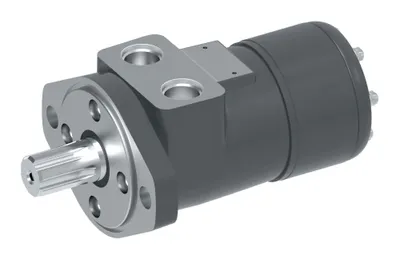

Danfoss H-040CD2XJ – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040CD2XJ

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss H-040BD4M-J – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040BD4M-J

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss H-040BD4-J – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040BD4-J

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss H-040BA2M-J – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040BA2M-J

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss H-040AD4-J – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040AD4-J

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss H-040AD2XJ – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040AD2XJ

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss H-040AD2-J – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040AD2-J

MOTOR-ORBITAL,H SERIES 40 [2.4]

Danfoss H-040AA2ZXJ – MOTOR-ORBITAL,H SERIES 40 [2.4]
Danfoss
H-040AA2ZXJ

MOTOR-ORBITAL,H SERIES 40 [2.4]

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNDisplacementFlangeOutput shaft typePort Type
H-100CC2XJ96 cm3/r (5.8583 in3/r)2 bolt flange1" Straight W-key1/2 NPTF port
H-100CC2FXJ96 cm3/r (5.8583 in3/r)2 bolt flange1" Straight W-key1/2 NPTF port
H-070DB2XJ69 cm3/r (4.2106 in3/r)2 bolt flange6B SplineRc1/2 port
H-070DA4MXJ69 cm3/r (4.2106 in3/r)4 bolt (equal interval)27MM Straight key 7x7x31.7Rc1/2 port
H-070DA4-J69 cm3/r (4.2106 in3/r)4 bolt (equal interval)27MM Straight key 7x7x31.7Rc1/2 port
H-070BB4M-J69 cm3/r (4.2106 in3/r)4 bolt (equal interval)6B SplineMan port
H-070BB2MXJ69 cm3/r (4.2106 in3/r)2 bolt flange6B SplineMan port
H-070AD4-J69 cm3/r (4.2106 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7G1/2 O-ring port
H-050DB4-J51 cm3/r (3.1122 in3/r)4 bolt (equal interval)6B SplineRc1/2 port
H-050DB2-J51 cm3/r (3.1122 in3/r)2 bolt flange6B SplineRc1/2 port
H-050BD2M-J51 cm3/r (3.1122 in3/r)2 bolt flange27MM Straight key 8x7x31.7Man port
H-040CD2XJ40 cm3/r (2.4409 in3/r)2 bolt flange27MM Straight key 8x7x31.71/2 NPTF port
H-040BD4M-J40 cm3/r (2.4409 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7Man port
H-040BD4-J40 cm3/r (2.4409 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7Man port
H-040BA2M-J40 cm3/r (2.4409 in3/r)2 bolt flange27MM Straight key 7x7x31.7Man port
H-040AD4-J40 cm3/r (2.4409 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7G1/2 O-ring port
H-040AD2XJ40 cm3/r (2.4409 in3/r)2 bolt flange27MM Straight key 8x7x31.7G1/2 O-ring port
H-040AD2-J40 cm3/r (2.4409 in3/r)2 bolt flange27MM Straight key 8x7x31.7G1/2 O-ring port
H-040AA2ZXJ40 cm3/r (2.4409 in3/r)2 bolt flange27MM Straight key 7x7x31.7G1/2 O-ring port

Common to all listed parts

Design CodeNinth
Product SeriesH Series
