Home / Motors / Mobile motors / Low-speed high-torque motors / Orbital motors / Danfoss orbital motor quick selector

Danfoss orbital motor quick selector Parts

Showing 25–48 of 11,614 parts

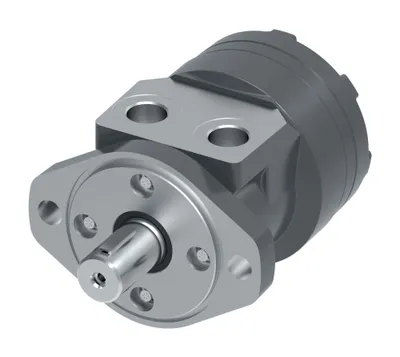

Danfoss SBA07DB2XD – MOTOR-ORBITAL,S SERIES 70 [4.2]
Danfoss
SBA07DB2XD

MOTOR-ORBITAL,S SERIES 70 [4.2]

Danfoss SBA07AB2XD – MOTOR-ORBITAL,S SERIES 70 [4.2]
Danfoss
SBA07AB2XD

MOTOR-ORBITAL,S SERIES 70 [4.2]

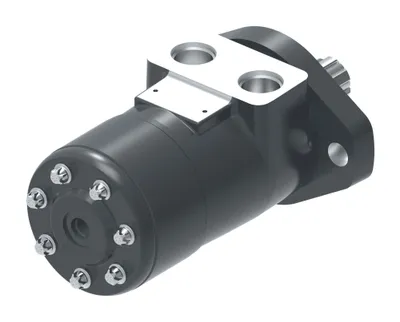

Danfoss H-390CC2XJ – MOTOR-ORBITAL,H SERIES 390 [23.7]
Danfoss
H-390CC2XJ

MOTOR-ORBITAL,H SERIES 390 [23.7]

Danfoss H-390BB2M-J – MOTOR-ORBITAL,H SERIES 390 [23.7]
Danfoss
H-390BB2M-J

MOTOR-ORBITAL,H SERIES 390 [23.7]

Danfoss H-390AB2XJ – MOTOR-ORBITAL,H SERIES 390 [23.7]
Danfoss
H-390AB2XJ

MOTOR-ORBITAL,H SERIES 390 [23.7]

Danfoss H-290DB2XJ – MOTOR-ORBITAL,H SERIES 290 [16.5]
Danfoss
H-290DB2XJ

MOTOR-ORBITAL,H SERIES 290 [16.5]

Danfoss H-290BD4MXJ – MOTOR-ORBITAL,H SERIES 290 [16.5]
Danfoss
H-290BD4MXJ

MOTOR-ORBITAL,H SERIES 290 [16.5]

Danfoss H-290AC2XJ – MOTOR-ORBITAL,H SERIES 290 [16.5]
Danfoss
H-290AC2XJ

MOTOR-ORBITAL,H SERIES 290 [16.5]

Danfoss H-240DB2XJ – MOTOR-ORBITAL,H SERIES 240 [14.6]
Danfoss
H-240DB2XJ

MOTOR-ORBITAL,H SERIES 240 [14.6]

Danfoss H-240DB2F-J – MOTOR-ORBITAL,H SERIES 240 [14.6]
Danfoss
H-240DB2F-J

MOTOR-ORBITAL,H SERIES 240 [14.6]

Danfoss H-240DB2-J – MOTOR-ORBITAL,H SERIES 240 [14.6]
Danfoss
H-240DB2-J

MOTOR-ORBITAL,H SERIES 240 [14.6]

Danfoss H-240BB4-J – MOTOR-ORBITAL,H SERIES 240 [14.6]
Danfoss
H-240BB4-J

MOTOR-ORBITAL,H SERIES 240 [14.6]

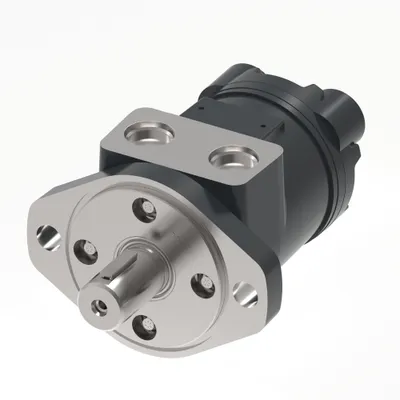

Danfoss H-200DD4XJ – MOTOR-ORBITAL,H SERIES 200 [12.2]
Danfoss
H-200DD4XJ

MOTOR-ORBITAL,H SERIES 200 [12.2]

Danfoss H-200DD4-J – MOTOR-ORBITAL,H SERIES 200 [12.2]
Danfoss
H-200DD4-J

MOTOR-ORBITAL,H SERIES 200 [12.2]

Danfoss H-200DB2B-J – MOTOR-ORBITAL,H SERIES 200 [12.2]
Danfoss
H-200DB2B-J

MOTOR-ORBITAL,H SERIES 200 [12.2]

Danfoss H-200BD4-J – MOTOR-ORBITAL,H SERIES 200 [12.2]
Danfoss
H-200BD4-J

MOTOR-ORBITAL,H SERIES 200 [12.2]

Danfoss H-200BD2-J – MOTOR-ORBITAL,H SERIES 200 [12.2]
Danfoss
H-200BD2-J

MOTOR-ORBITAL,H SERIES 200 [12.2]

Danfoss H-200AB2-J – MOTOR-ORBITAL,H SERIES 200 [12.2]
Danfoss
H-200AB2-J

MOTOR-ORBITAL,H SERIES 200 [12.2]

Danfoss H-170BD4M-J – MOTOR-ORBITAL,H SERIES 170 [10.4]
Danfoss
H-170BD4M-J

MOTOR-ORBITAL,H SERIES 170 [10.4]

Danfoss H-170BD2M-J – MOTOR-ORBITAL,H SERIES 170 [10.4]
Danfoss
H-170BD2M-J

MOTOR-ORBITAL,H SERIES 170 [10.4]

Danfoss H-170BC2M-J – MOTOR-ORBITAL,H SERIES 170 [10.4]
Danfoss
H-170BC2M-J

MOTOR-ORBITAL,H SERIES 170 [10.4]

Danfoss H-170AB2XJ – MOTOR-ORBITAL,H SERIES 170 [10.4]
Danfoss
H-170AB2XJ

MOTOR-ORBITAL,H SERIES 170 [10.4]

Danfoss H-130AD2XJ – MOTOR-ORBITAL,H SERIES 130 [7.9]
Danfoss
H-130AD2XJ

MOTOR-ORBITAL,H SERIES 130 [7.9]

Danfoss H-130AA2FXJ – MOTOR-ORBITAL,H SERIES 130 [7.9]
Danfoss
H-130AA2FXJ

MOTOR-ORBITAL,H SERIES 130 [7.9]

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNDisplacementFlangeOutput shaft typePort TypeProduct Series
SBA07DB2XD76 cm3/r (4.6 in3/r)2 bolt flange6B SplineRc1/2 portS Series with brake
SBA07AB2XD76 cm3/r (4.6 in3/r)2 bolt flange6B SplineG1/2 O-ring portS Series with brake
H-390CC2XJ369 cm3/r (23.7993 in3/r)2 bolt flange1" Straight W-key1/2 NPTF portH Series
H-390BB2M-J369 cm3/r (23.7993 in3/r)2 bolt flange6B SplineMan portH Series
H-390AB2XJ369 cm3/r (23.7993 in3/r)2 bolt flange6B SplineG1/2 O-ring portH Series
H-290DB2XJ277 cm3/r (17.6969 in3/r)2 bolt flange6B SplineRc1/2 portH Series
H-290BD4MXJ277 cm3/r (17.6969 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7Man portH Series
H-290AC2XJ277 cm3/r (17.6969 in3/r)2 bolt flange1" Straight W-keyG1/2 O-ring portH Series
H-240DB2XJ230 cm3/r (14.6457 in3/r)2 bolt flange6B SplineRc1/2 portH Series
H-240DB2F-J230 cm3/r (14.6457 in3/r)2 bolt flange6B SplineRc1/2 portH Series
H-240DB2-J230 cm3/r (14.6457 in3/r)2 bolt flange6B SplineRc1/2 portH Series
H-240BB4-J230 cm3/r (14.6457 in3/r)4 bolt (equal interval)6B SplineMan portH Series
H-200DD4XJ184 cm3/r (11.2284 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7Rc1/2 portH Series
H-200DD4-J184 cm3/r (11.2284 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7Rc1/2 portH Series
H-200DB2B-J184 cm3/r (11.2284 in3/r)2 bolt flange6B SplineRc1/2 portH Series
H-200BD4-J184 cm3/r (11.2284 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7Man portH Series
H-200BD2-J184 cm3/r (11.2284 in3/r)2 bolt flange27MM Straight key 8x7x31.7Man portH Series
H-200AB2-J184 cm3/r (11.2284 in3/r)2 bolt flange6B SplineG1/2 O-ring portH Series
H-170BD4M-J159 cm3/r (9.7028 in3/r)4 bolt (equal interval)27MM Straight key 8x7x31.7Man portH Series
H-170BD2M-J159 cm3/r (9.7028 in3/r)2 bolt flange27MM Straight key 8x7x31.7Man portH Series
H-170BC2M-J159 cm3/r (9.7028 in3/r)2 bolt flange1" Straight W-keyMan portH Series
H-170AB2XJ159 cm3/r (9.7028 in3/r)2 bolt flange6B SplineG1/2 O-ring portH Series
H-130AD2XJ129 cm3/r (7.8721 in3/r)2 bolt flange27MM Straight key 8x7x31.7G1/2 O-ring portH Series
H-130AA2FXJ129 cm3/r (7.8721 in3/r)2 bolt flange27MM Straight key 7x7x31.7G1/2 O-ring portH Series
