Schneider Electric
NSYS3D121030DPWall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1200x1000x300mm, IP55, IK10
PanelSeT S3D Parts
Schneider Electric
NSYS3D121030DWall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1200x1000x300mm, IP55, IK10
Schneider Electric
NSYS3D121030Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1200x1000x300mm, IP66, IK10
Schneider Electric
NSYS3D10840TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x800x400mm, IP66, IK08
Schneider Electric

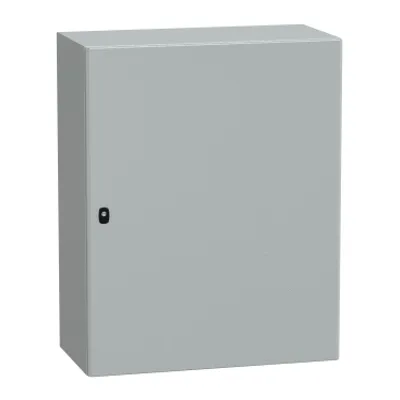

NSYS3D10840PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x800x400mm, IP66, IK10
Schneider Electric
NSYS3D10840Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x800x400mm, IP66, IK10
Schneider Electric

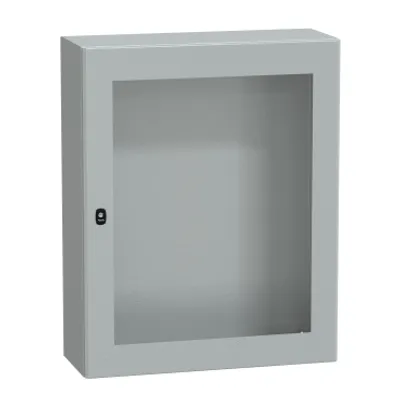

NSYS3D10830TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x800x300mm, IP66, IK08
Schneider Electric
NSYS3D10830PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x800x300mm, IP66, IK10
Schneider Electric
NSYS3D10830Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x800x300mm, IP66, IK10
Schneider Electric

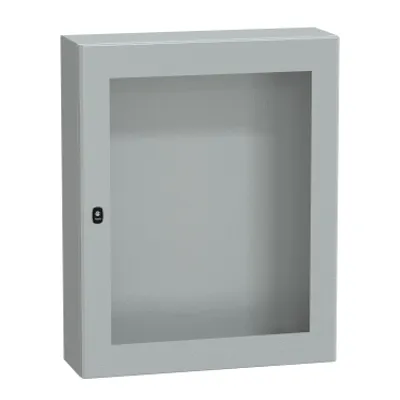

NSYS3D10825TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x800x250mm, IP66, IK08
Schneider Electric
NSYS3D10825PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x800x250mm, IP66, IK10
Schneider Electric

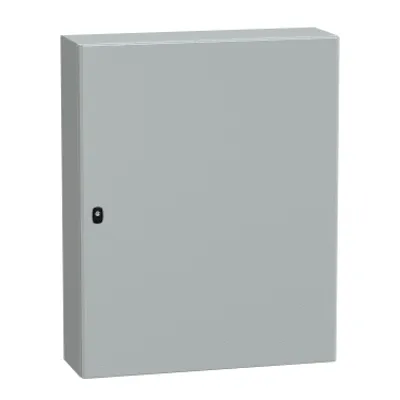

NSYS3D10825Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x800x250mm, IP66, IK10
Schneider Electric
NSYS3D10640TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x600x400mm, IP66, IK08
Schneider Electric
NSYS3D10640PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x600x400mm, IP66, IK10
Schneider Electric
NSYS3D10640Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x600x400mm, IP66, IK10
Schneider Electric
NSYS3D10630TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x600x300mm, IP66, IK08
Schneider Electric

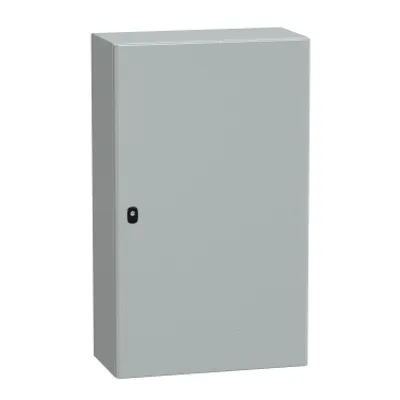

NSYS3D10630PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x600x300mm, IP66, IK10
Schneider Electric
NSYS3D10630Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x600x300mm, IP66, IK10
Schneider Electric
NSYS3D10625TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x600x250mm, IP66, IK08
Schneider Electric
NSYS3D10625PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x600x250mm, IP66, IK10
Schneider Electric
NSYS3D10625Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x600x250mm, IP66, IK10
Schneider Electric

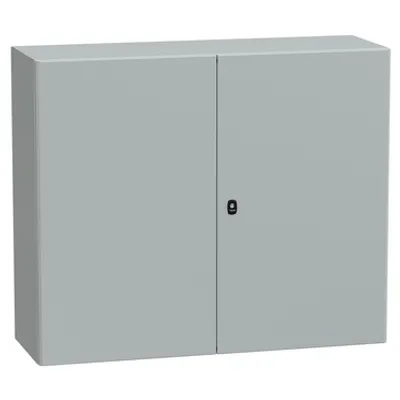

NSYS3D101240DPWall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1200x400mm, IP55, IK10
Schneider Electric

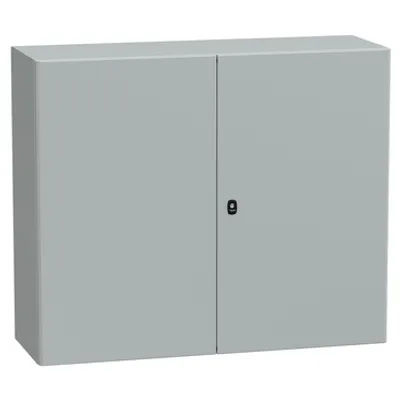

NSYS3D101240DWall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1000x1200x400mm, IP55, IK10
Schneider Electric

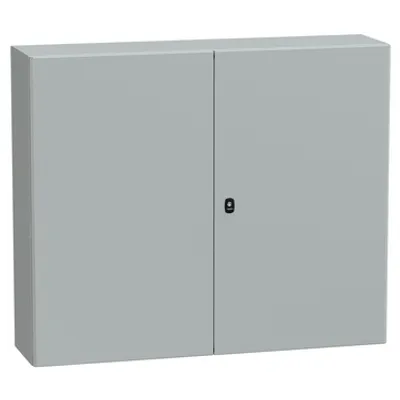

NSYS3D101230DPWall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1200x300mm, IP55, IK10
Compare PanelSeT S3D
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Enclosure nominal height | Enclosure nominal width | Enclosure nominal depth | Product certifications | Net weight |
|---|---|---|---|---|---|
| NSYS3D121030DP | 1200 mm | 1000 mm | 300 mm | BV, DNV, UL, GL, cUL | 77 kg |
| NSYS3D121030D | 1200 mm | 1000 mm | 300 mm | BV, UL, cUL, GL, DNV | 53 kg |
| NSYS3D121030 | 1200 mm | 1000 mm | 300 mm | BV, GL, cUL, DNV, UL | 53 kg |
| NSYS3D10840T | 1000 mm | 800 mm | 400 mm | UL, DNV, GL, cUL, BV | 41 kg |
| NSYS3D10840P | 1000 mm | 800 mm | 400 mm | GL, BV, UL, DNV, cUL | 57 kg |
| NSYS3D10840 | 1000 mm | 800 mm | 400 mm | DNV, cUL, UL, BV, GL | 42 kg |
| NSYS3D10830T | 1000 mm | 800 mm | 300 mm | DNV, cUL, BV, UL, GL | 37 kg |
| NSYS3D10830P | 1000 mm | 800 mm | 300 mm | cUL, DNV, GL, UL, BV | 52 kg |
| NSYS3D10830 | 1000 mm | 800 mm | 300 mm | BV, GL, cUL, DNV, UL | 33 kg |
| NSYS3D10825T | 1000 mm | 800 mm | 250 mm | UL, cUL, BV, DNV, GL | 34 kg |
| NSYS3D10825P | 1000 mm | 800 mm | 250 mm | UL, GL, cUL, DNV, BV | 49 kg |
| NSYS3D10825 | 1000 mm | 800 mm | 250 mm | GL, BV, cUL, DNV, UL | 35 kg |
| NSYS3D10640T | 1000 mm | 600 mm | 400 mm | UL, BV, GL, DNV, cUL | 34 kg |
| NSYS3D10640P | 1000 mm | 600 mm | 400 mm | UL, GL, DNV, BV, cUL | 45 kg |
| NSYS3D10640 | 1000 mm | 600 mm | 400 mm | UL, DNV, GL, BV, cUL | 33 kg |
| NSYS3D10630T | 1000 mm | 600 mm | 300 mm | DNV, GL, cUL, BV, UL | 29 kg |
| NSYS3D10630P | 1000 mm | 600 mm | 300 mm | DNV, GL, BV, cUL, UL | 41 kg |
| NSYS3D10630 | 1000 mm | 600 mm | 300 mm | UL, cUL, GL, BV, DNV | 29.5 kg |
| NSYS3D10625T | 1000 mm | 600 mm | 250 mm | DNV, BV, cUL, GL, UL | 28 kg |
| NSYS3D10625P | 1000 mm | 600 mm | 250 mm | UL, BV, DNV, GL, cUL | 38 kg |
| NSYS3D10625 | 1000 mm | 600 mm | 250 mm | BV, GL, UL, cUL, DNV | 28 kg |
| NSYS3D101240DP | 1000 mm | 1200 mm | 400 mm | UL, GL, cUL, BV, DNV | 90 kg |
| NSYS3D101240D | 1000 mm | 1200 mm | 400 mm | cUL, UL, DNV, BV, GL | 68 kg |
| NSYS3D101230DP | 1000 mm | 1200 mm | 300 mm | DNV, cUL, GL, BV, UL | 75 kg |
Common to all listed parts
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
