Schneider Electric

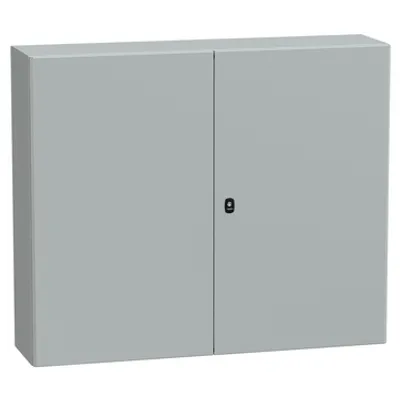

NSYS3D101230DWall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1000x1200x300mm, IP55, IK10
PanelSeT S3D Parts
Schneider Electric

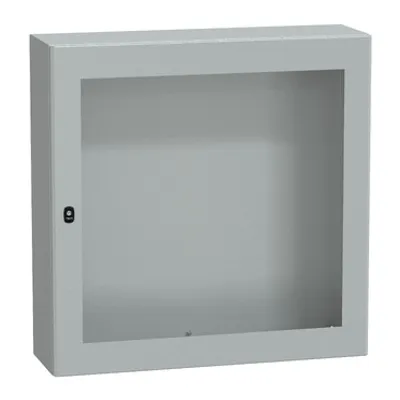

NSYS3D101030TWall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 1000x1000x300mm, IP66, IK08
Schneider Electric

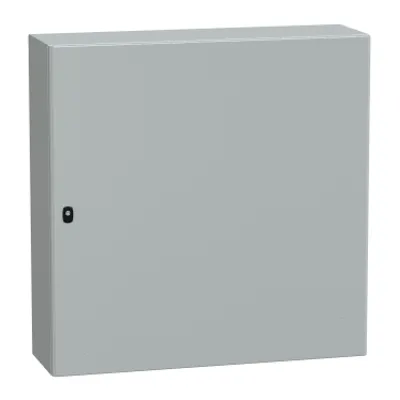

NSYS3D101030PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000x1000x300mm, IP66, IK10
Schneider Electric

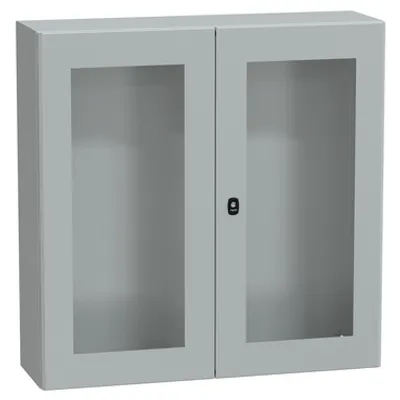

NSYS3D101030DTWall mounted steel enclosure, PanelSeT S3D, double transparent door, without mounting plate, 1000x1000x300mm, IP55, IK08
Schneider Electric

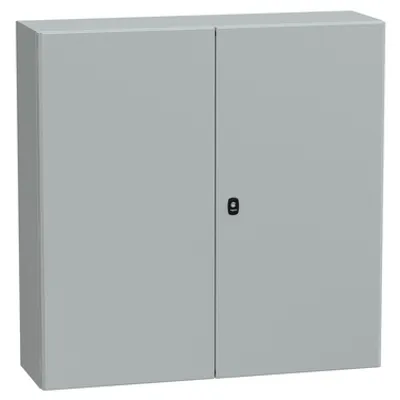

NSYS3D101030DPWall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1000x300mm, IP55, IK10
Schneider Electric
NSYS3D101030DWall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1000x1000x300mm, IP55, IK10
Schneider Electric
NSYS3D101030Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x1000x300mm, IP66, IK10
Schneider Electric
NSYAEDL610S3DKey handle with key 610E for PanelSeT S3D encl, attractive and ergonomic design
Schneider Electric
NSYAEDL3131AS3DKey handle with key 3131 A for PanelSeT S3D encl, attractive and ergonomic design
Schneider Electric
NSYAEDL455K33Locking system for enclosure PanelSeT S3D 6G - 3-point closure - universal 455E
Schneider Electric
NSYAEDL405K33Locking system for enclosure PanelSeT S3D 6G - 3-point closure - universal 405E
Schneider Electric
NSYAEDL1242K33Locking system for enclosure PanelSeT S3D 6G - 3-point closure - universal 1242E
Schneider Electric
NSYAEDLEDF14K33Locking system for enclosure PanelSeT S3D 6G - 3-point closure - EDF 1400
Schneider Electric

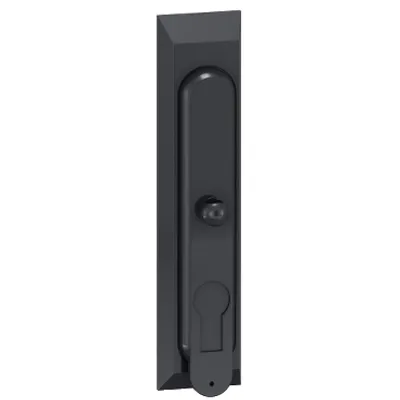

NSYAEDLEDF13K33Locking system for enclosure PanelSeT S3D 6G - 3-point closure - EDF 1300
Schneider Electric
NSYAEDLEDF9K33Locking system for enclosure PanelSeT S3D 6G - 3-point closure - EDF 900
Schneider Electric

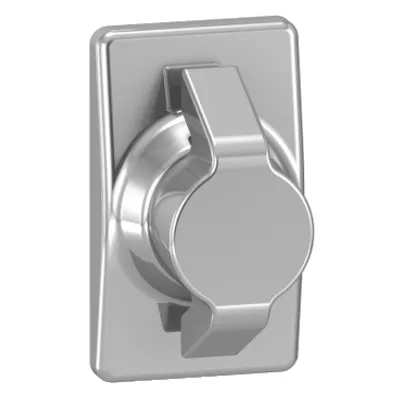

NSYAEDL455K31Locking system for enclosure PanelSeT S3D 6G - 1-point closure - universal 455E
Schneider Electric
NSYAEDL1242K31Locking system for enclosure PanelSeT S3D 6G - 1-point closure - universal 1242E
Compare PanelSeT S3D
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Enclosure nominal height | Lock type | Net weight | Product or component type | Range compatibility |
|---|---|---|---|---|---|
| NSYS3D101230D | 1000 mm | 3 points lock, 3 mm double-bar | 53 kg | — | — |
| NSYS3D101030T | 1000 mm | 3 points lock, 3 mm double-bar | 43 kg | — | — |
| NSYS3D101030P | 1000 mm | 3 points lock, 3 mm double-bar | 63 kg | — | — |
| NSYS3D101030DT | 1000 mm | 3 points lock, 3 mm double-bar | 45 kg | — | — |
| NSYS3D101030DP | 1000 mm | 3 points lock, 3 mm double-bar | 64 kg | — | — |
| NSYS3D101030D | 1000 mm | 3 points lock, 3 mm double-bar | 46 kg | — | — |
| NSYS3D101030 | 1000 mm | 3 points lock, 3 mm double-bar | 46 kg | — | — |

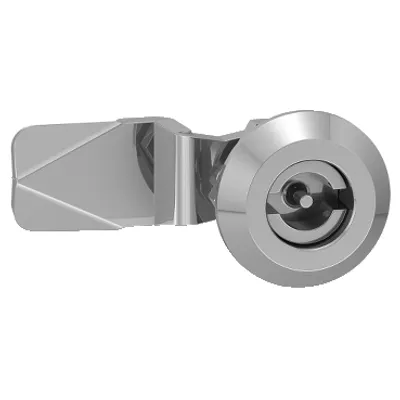

| NSYAEDLB3MS3D | — | 3 mm double-bar lock | 0.182 kg | Lock | PanelSeT |

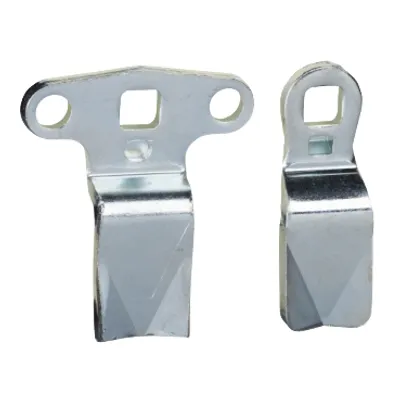

| NSYAEDLMETS3D | — | — | 0.074 kg | Metal cam kit | PanelSeT |
| NSYAEDDINS3D | — | — | 0.204 kg | Barrel lock kit | PanelSeT |

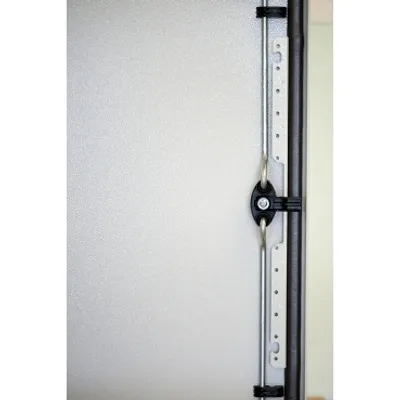

| NSYBTAS3D90 | 900 mm | 3 points lock, 3 mm double-bar | 0.375 kg | Linkage | PanelSeT S3D |
| NSYBTAS3D65 | 650 mm | 3 points lock, 3 mm double-bar | 0.271 kg | Linkage | PanelSeT S3D |
| NSYAEDL610S3D | — | Key lock | — | Handle | PanelSeT S3D PanelSeT S3D |
| NSYAEDL3131AS3D | — | Key lock | — | Handle | PanelSeT S3D |
| NSYAEDL3524S3D | — | Key lock | 0.052 kg | Handle | PanelSeT S3D |

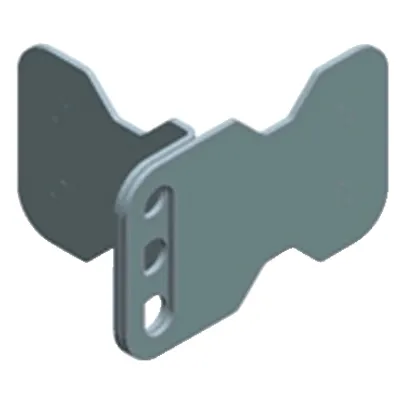

| NSYAEDLPADS3DK3 | — | — | 0.26 kg | Padlocking device | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDL455K33 | 700 mm, 1200 mm, 800 mm | 3-point closure | 0.752 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDL405K33 | 700 mm, 800 mm, 1200 mm | 3-point closure | 0.000752 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDL1242K33 | 1200 mm, 800 mm, 700 mm | 3-point closure | 0.000752 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDLEDF14K33 | 1200 mm, 800 mm, 700 mm | 3-point closure | 0.000752 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDLEDF13K33 | 800 mm, 700 mm, 1200 mm | 3-point closure | 0.752 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDLEDF9K33 | 700 mm, 800 mm, 1200 mm | 3-point closure | 0.752 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDL455K31 | 600 mm, 400 mm, 300 mm | 1-point closure | 0.62 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
| NSYAEDL1242K31 | 400 mm, 600 mm, 300 mm | 1-point closure | 0.00062 kg | Locking system | PanelSeT S3D 6G K3, PanelSeT S3D 6G |
Common to all listed parts
| Range | PanelSeT |
