Time monitoring Parts

Pilz

777538

PNOZ XV3.1P 300/24-240VACDC 3no 1nc 2no

Pilz

777518

PNOZ XV3P 300/24VDC 3n/o 2n/o t

Pilz

777532

PNOZ XV3.1P 3/24-240VACDC 3no 1nc 2no t

Pilz

777522

PNOZ XV3.1P 3/24VDC 3n/o 1n/c 2n/o t

Pilz

777530

PNOZ XV3.1P 30/24-240VACDC 3no 1nc 2no t

Pilz

777502

PNOZ XV2P 3/24VDC 2n/o 2n/o t

Pilz

777510

PNOZ XV3P 30/24 VDC 3n/o 2n/o t

Pilz

777514

PNOZ XV3P 0.5/24VDC 3n/o 2n/o t fix

Pilz

777500

PNOZ XV2P 30/24VDC 2n/o 2n/o t

Pilz

777512

PNOZ XV3P 3/24 VDC 3n/o 2n/o t

Pilz

777511

PNOZ XV3.3P 30/24VDC 3n/o 2n/o t

Pilz

787601

PNOZ XV1P C 3/24VDC 2n/o 1n/o t

Pilz

787602

PNOZ XV1P C 30/24VDC 2n/o 1n/o t

Pilz

787510

PNOZ XV3P C 30/24 VDC 3n/o 2n/o t

Pilz

787520

PNOZ XV3.1P C 30/24VDC 3n/o 1n/c 2n/o t

Pilz

774610

PNOZ XV3.1 30/24-240VACDC 3no 1nc 2no t

Pilz

774618

PNOZ XV3.1 300/24-240VACDC 3no 1nc 2no t

Pilz

774532

PNOZ XV3.1 3/24VDC 3n/o 1n/c 2n/o t

Pilz

774544

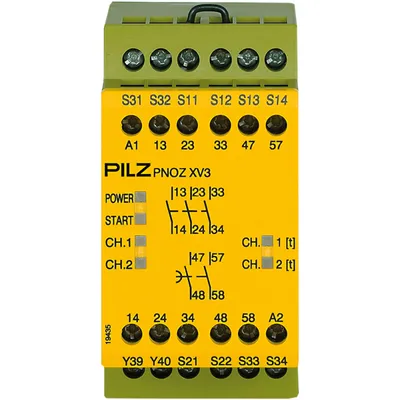

PNOZ XV3 0.5/24VDC 3n/o 2n/o t fix

Pilz

774540

PNOZ XV3 30/24VDC 3n/o 2n/o t

Pilz

774548

PNOZ XV3 300/24VDC 3n/o 2n/o t

Pilz

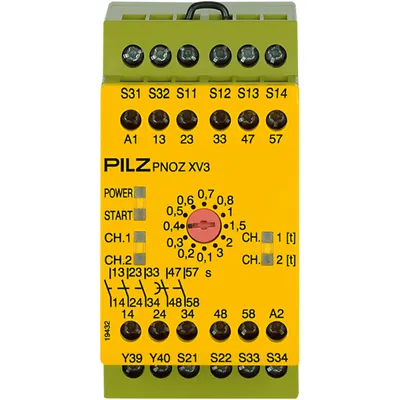

774542

PNOZ XV3 3/24VDC 3n/o 2n/o t

Pilz

774552

PNOZ XV2.1 3/24-240VACDC 2n/o 2n/o t

Pilz

774550

PNOZ XV2.1 30/24-240VACDC 2n/o 2n/o t

Compare Time monitoring

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product ID (Pilz order number)	Net weight	Gross weight	GTIN	Volume
777538	777538	540 g	550 g	4046548009453	0.605 dm3
777518	777518	370 g	380 g	4046548009514	0.605 dm3
777532	777532	540 g	550 g	4046548009460	0.605 dm3
777522	777522	510 g	520 g	4046548009491	0.605 dm3
777530	777530	540 g	550 g	4046548009477	0.605 dm3
777502	777502	360 g	370 g	4046548009620	0.605 dm3
777510	777510	370 g	380 g	4046548009576	0.605 dm3
777514	777514	360 g	370 g	4046548009545	0.605 dm3
777500	777500	360 g	370 g	4046548009637	0.605 dm3
777512	777512	370 g	380 g	4046548009552	0.605 dm3
777511	777511	370 g	375 g	4046548009569	0.605 dm3
787601	787601	230 g	235 g	4046548008036	0.300 dm3
787602	787602	230 g	235 g	4046548008029	0.300 dm3
787510	787510	370 g	380 g	4046548008265	0.605 dm3
787520	787520	510 g	520 g	4046548008227	1.249 dm3
774610	774610	520 g	530 g	4046548010640	1.024 dm3
774618	774618	520 g	530 g	4046548010626	1.024 dm3
774532	774532	500 g	505 g	4046548011067	1.024 dm3
774544	774544	350 g	360 g	4046548010992	0.563 dm3
774540	774540	360 g	370 g	4046548011029	0.563 dm3
774548	774548	360 g	370 g	4046548010954	0.563 dm3
774542	774542	360 g	370 g	4046548011005	0.545 dm3
774552	774552	510 g	520 g	4046548010923	1.113 dm3
774550	774550	510 g	520 g	4046548010930	1.113 dm3

Common to all listed parts

Lifecycle	Active (current Pilz product)
Number of inputs	2
Number of semicond. outputs	0
Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Voltage DC1 safety cont.	24 V
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
