Home / Relay modules / Safety relays / protection relays / PNOZ X - safety relays / Time monitoring

Time monitoring Parts

Pilz

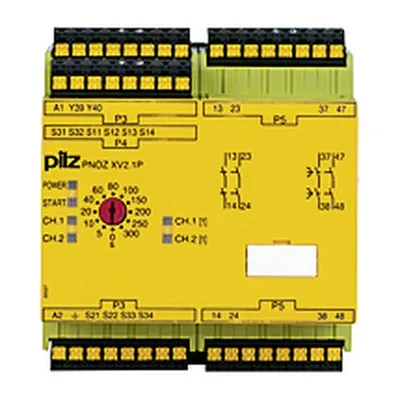

787548

PNOZ XV2.1P C 300/24-240VACDC 2n/o 2n/o

Pilz

787542

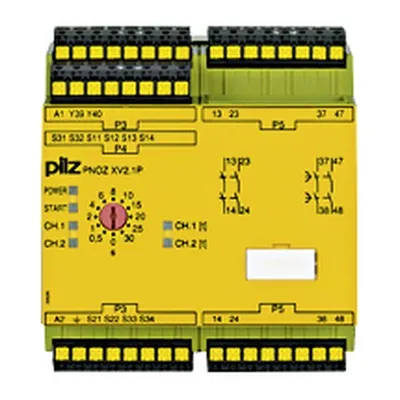

PNOZ XV2.1P C 3/24-240VACDC 2n/o 2n/o t

Pilz

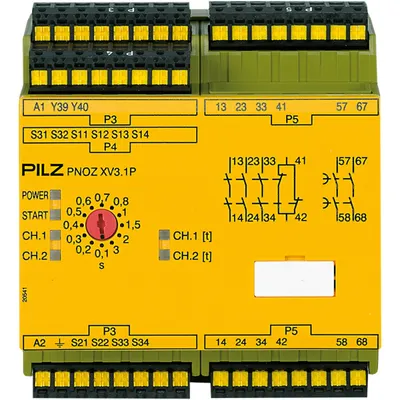

787532

PNOZ XV3.1P C 3/24-240VACDC 3no 1nc 2no

Pilz

787522

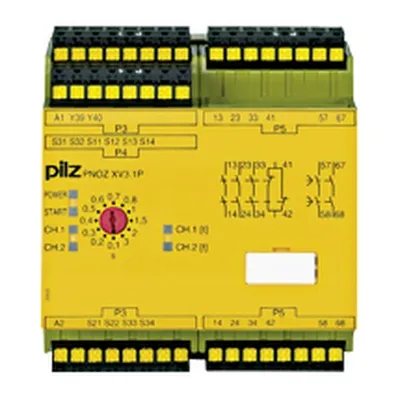

PNOZ XV3.1P C 3/24VDC 3n/o 1n/c 2n/o t

Pilz

787518

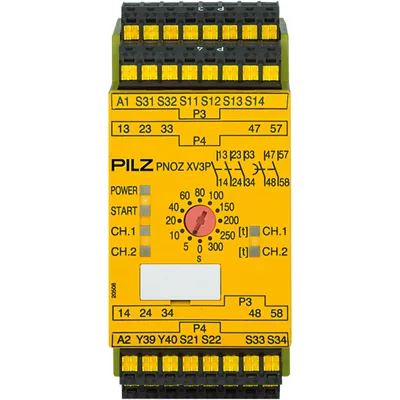

PNOZ XV3P C 300/24VDC 3n/o 2n/o t

Pilz

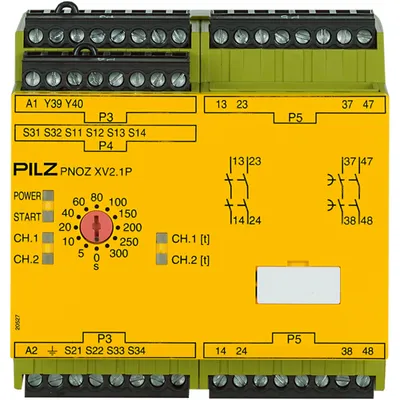

777548

PNOZ XV2.1P 300/24-240VACDC 2n/o 2n/o t

Pilz

777542

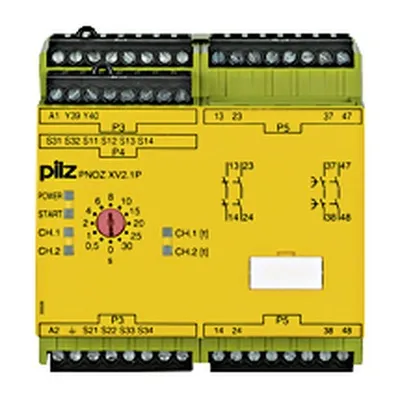

PNOZ XV2.1P 3/24-240VACDC 2n/o 2n/o t

Pilz

777540

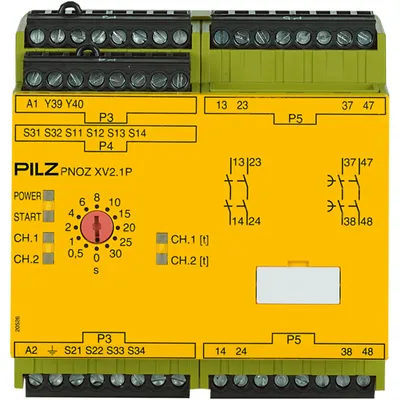

PNOZ XV2.1P 30/24-240VACDC 2n/o 2n/o t

Pilz

777504

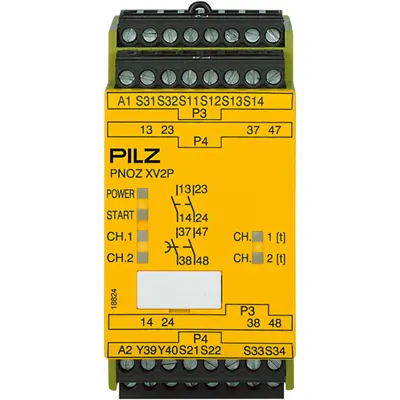

PNOZ XV2P 0.5/24VDC 2n/o 2n/o fix

Pilz

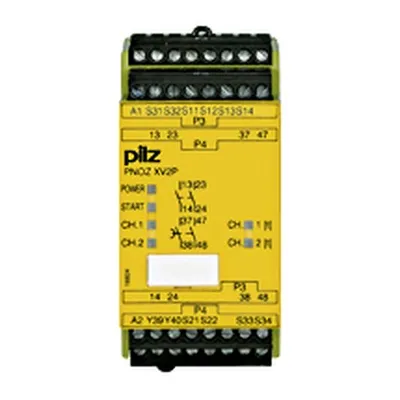

777503

PNOZ XV2P 1/24VDC 2n/o 2n/o fix

Pilz

774612

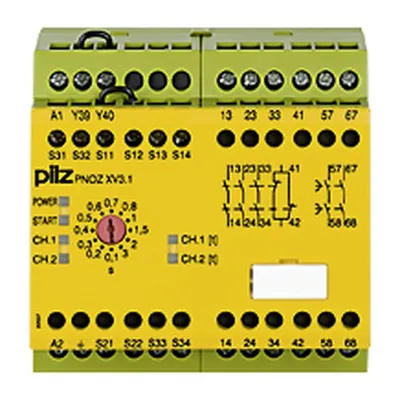

PNOZ XV3.1 3/24-240VACDC 3no 1nc 2no t

Pilz

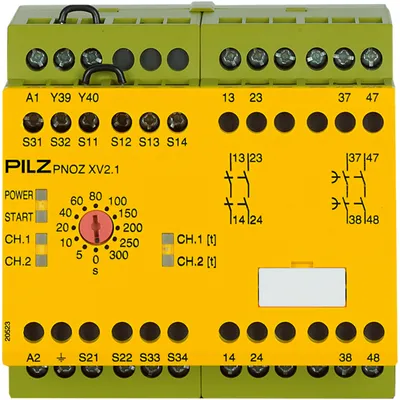

774558

PNOZ XV2.1 300/24-240VACDC 2n/o 2n/o t

Pilz

774545

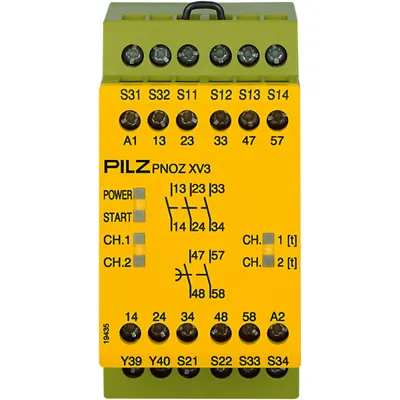

PNOZ XV3 3/24VDC 3n/o 2n/o t fix

Pilz

774538

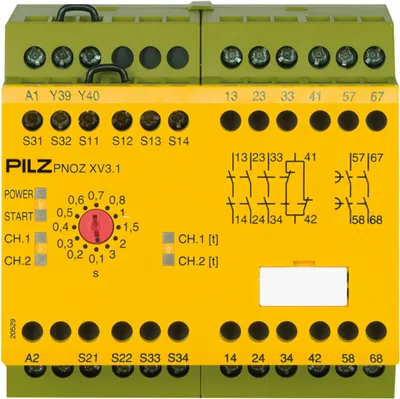

PNOZ XV3.1 300/24VDC 3n/o 1n/c 2n/o t

Pilz

774044

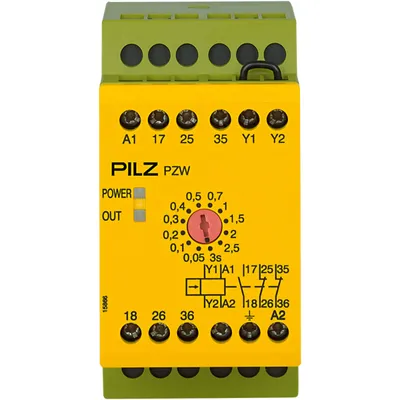

PZW 3/110-120VAC 1n/o 2n/c

Pilz

774038

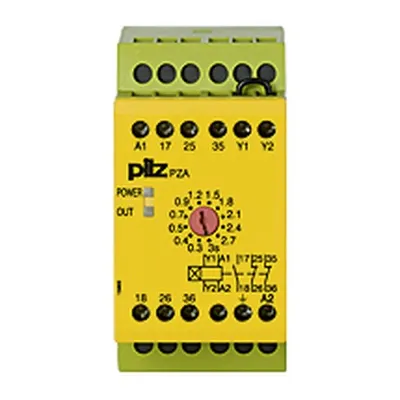

PZA 3/230VAC 1n/o 2n/c

Pilz

774035

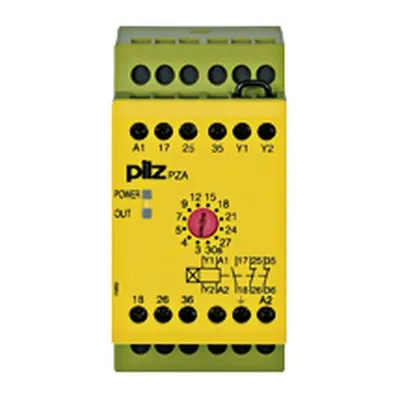

PZA 30/110-120VAC 1n/o 2n/c

Pilz

774023

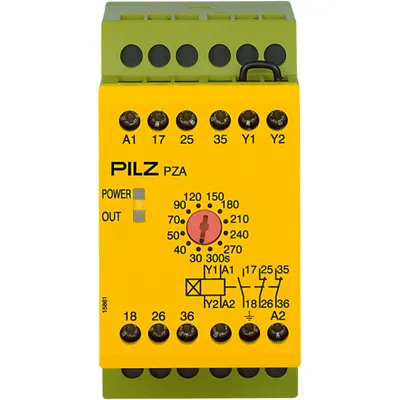

PZA 300/110-120VAC 1n/o 2n/c

Pilz

787530

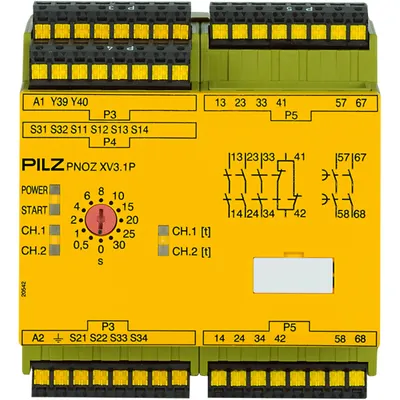

PNOZ XV3.1P C 30/24-240VACDC 3no 1nc 2no

Pilz

787512

PNOZ XV3P C 3/24 VDC 3n/o 2n/o t

Pilz

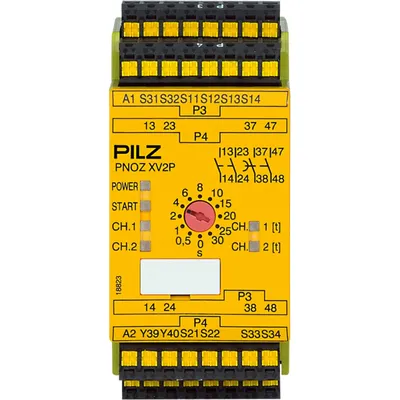

787500

PNOZ XV2P C 30/24VDC 2n/o 2n/o t

Pilz

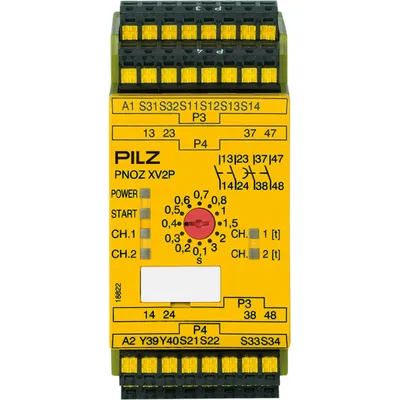

787502

PNOZ XV2P C 3/24VDC 2n/o 2n/o t

Pilz

777602

PNOZ XV1P 30/24VDC 2n/o 1n/o t

Pilz

777601

PNOZ XV1P 3/24VDC 2n/o 1n/o t

Compare Time monitoring

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product ID (Pilz order number)	Net weight	Gross weight	GTIN	Volume
787548	787548	515 g	525 g	4046548008142	0.605 dm3
787542	787542	515 g	525 g	4046548008159	0.605 dm3
787532	787532	535 g	545 g	4046548008180	1.249 dm3
787522	787522	510 g	520 g	4046548008210	1.249 dm3
787518	787518	370 g	380 g	4046548008234	0.605 dm3
777548	777548	520 g	530 g	4046548009392	0.605 dm3
777542	777542	520 g	530 g	4046548009439	0.605 dm3
777540	777540	520 g	530 g	4046548009446	0.605 dm3
777504	777504	350 g	360 g	4046548009606	0.605 dm3
777503	777503	350 g	360 g	4046548009613	0.605 dm3
774612	774612	520 g	530 g	4046548010633	1.024 dm3
774558	774558	510 g	520 g	4046548010893	1.113 dm3
774545	774545	350 g	360 g	4046548010985	0.563 dm3
774538	774538	500 g	505 g	4046548011036	1.024 dm3
774044	774044	350 g	360 g	4046548012415	0.540 dm3
774038	774038	255 g	265 g	4046548012453	0.540 dm3
774035	774035	350 g	360 g	4046548012477	0.540 dm3
774023	774023	350 g	360 g	4046548012545	0.510 dm3
787530	787530	535 g	545 g	4046548008197	1.249 dm3
787512	787512	370 g	380 g	4046548008241	0.605 dm3
787500	787500	355 g	365 g	4046548008302	0.605 dm3
787502	787502	355 g	365 g	4046548008296	0.605 dm3
777602	777602	230 g	235 g	4046548009279	0.285 dm3
777601	777601	230 g	235 g	4046548009286	0.285 dm3

Common to all listed parts

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Voltage DC1 safety cont.	24 V
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Voltage DC13 safety cont.	24 V
Safety contacts: AC at UL	240 VAC G. P.
Relay contact material	AgSnO2
