Touch Panel 600; 14.5 cm (5.7"); 640 x 480 pixels; 2 x ETHERNET, 2 x USB, Audio; Visu Panel
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Touch Panels |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 762-6202/8000-001 be shipped?
762-6202/8000-001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 762-6202/8000-001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 762-6202/8000-001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 762-6202/8000-001, subject to availability and destination.
PIO2 hardware configuration<br/><ul><li>2 x ETHERNET port for connecting to field devices and the engineering tool</li><li>2 x USB port for optional connection of a USB stick, mouse or keyboard</li><li>Audio interface for connecting a headphone or loudspeaker</li></ul>
Specifications
Technical data
| Display diagonal | 14.5 cm (5.7 inches) |
| Display | Resistive touchscreen (black front) |
| Display colors | 262,000 colors |
| Graphics resolution | (640 x 480) px |
| Contrast ratio | 300:1 |
| Viewing angle (horizontal/vertical) | 80° / 80° |
| Brightness | 630 cd/m<sup>2</sup> |
| Visualization | Web server, Web-Visu |
| ETHERNET protocols | DHCP, DNS, FTP, FTPS, HTTP, HTTPS, SSH |

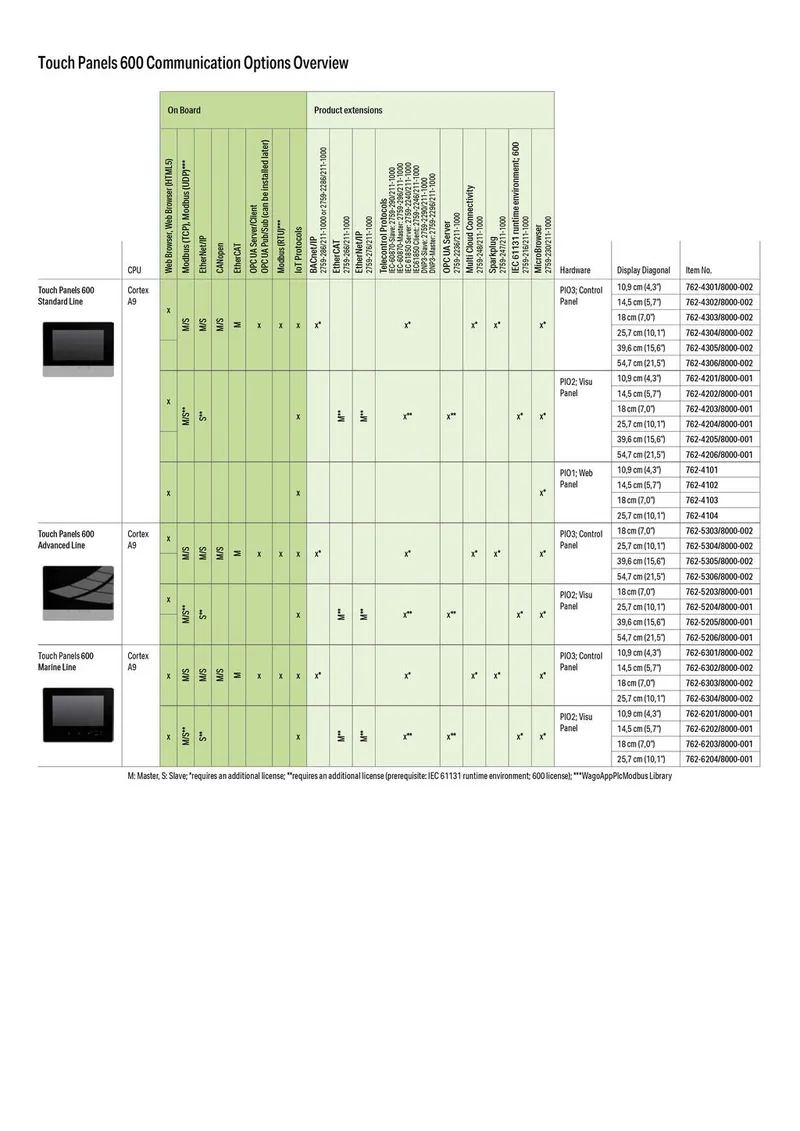

| Communications | Web browser, Web browser (HTML5), Modbus TCP master/slave, Modbus (UDP), WagoAppPlcModbus Library, ETHERNET, EtherNet/IPTM Adapter (slave), EtherNet/IPTM Scanner, EtherCAT® Master, OPC UA Server/Client, OPC UA Pub/Sub (can be installed later), MQTT, Telecontrol protocols, requires an additional license, MicroBrowser (including visualization of CODESYS V2.3), requires an additional license, EtherNet/IPTM Adapter (slave), library for e!RUNTIME (prerequisite: e!RUNTIME PLC 600 license), Modbus TCP Master/Slave (prerequisite: e!RUNTIME PLC 600 license), EtherCAT Master, requires an additional license (prerequisite: e!RUNTIME PLC 600 license), BACnet/IP, requires an additional license (e!RUNTIME PLC 600 license is required) |
| Operating system | Real-time Linux (with PREEMPT_RT patch) |
| Processor | ARM® Cortex® A9 Quad-Core 1.0 GHz |
| Programming environment | CODESYS V3.5, Firmware Release 24 or higher, e!COCKPIT (based on CODESYS V3) up to Firmware Release 22, e!COCKPIT (based on CODESYS V3) |
| Main memory (RAM) | 2,048 MB |
| Internal memory (flash) | 4096 MB |
| Program memory | 32 MB |
| Data memory | 128 MB |
| Type of memory card | microSD (max. 2 GB); microSDHC (max. 32 GB) |
| Indicators | Three-color LED (red, green, blue) |
| Control Elements | Resistive touch panel, two capacitive keys, proximity sensor |
| Supply voltage | 24 VDC, SELV (18 … 31.2 V); with reverse voltage protection |
| Operating power | 6.8 W, without USB load; 11.8 W, with USB load |
Connection data
| Connection technology: communication/fieldbus | Modbus (TCP): 2 x RJ-45; 2 x USB 2.0 host (type A) |
| Connection technology: supply | 1 x Included female connector (734-103/037-000) with three CAGE CLAMP® connections |
Physical data
| Width | 172 mm / 6.772 inches |
| Height | 163 mm / 6.417 inches |
| Depth | 58 mm / 2.283 inches |
| Panel cutout (W x H) | (157 x 148) mm |
Mechanical data
| Mounting type | Clamping elements (included) or VESA mount (4 x M4x8) |
Material data
| Fire load | 0.003 MJ |
| Weight | 850 g |
Environmental requirements
| Ambient temperature (operation) | -20 … +55 °C (Vertical mounting position; -20 … +50 °C, other mounting positions) |
| Ambient temperature (storage) | -20 … +80 °C |
| Protection type | IP65 |
| Note on protection type | IP65 (front side); IP20 (rear side), per EN 60529 |
| Relative humidity (without condensation) | 90 % |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143839471 |
| Customs tariff number | 84714100000 |
Product Classification
| UNSPSC | 43211903 |
| ETIM 9.0 | EC001414 |
| ETIM 10.0 | EC001414 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
