M12 sensor/actuator box; 8-way; 5-pole; M23 connector; Without LED
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Sensor/Actuator Boxes |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 757-185/100-000 be shipped?
757-185/100-000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 757-185/100-000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 757-185/100-000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 757-185/100-000, subject to availability and destination.

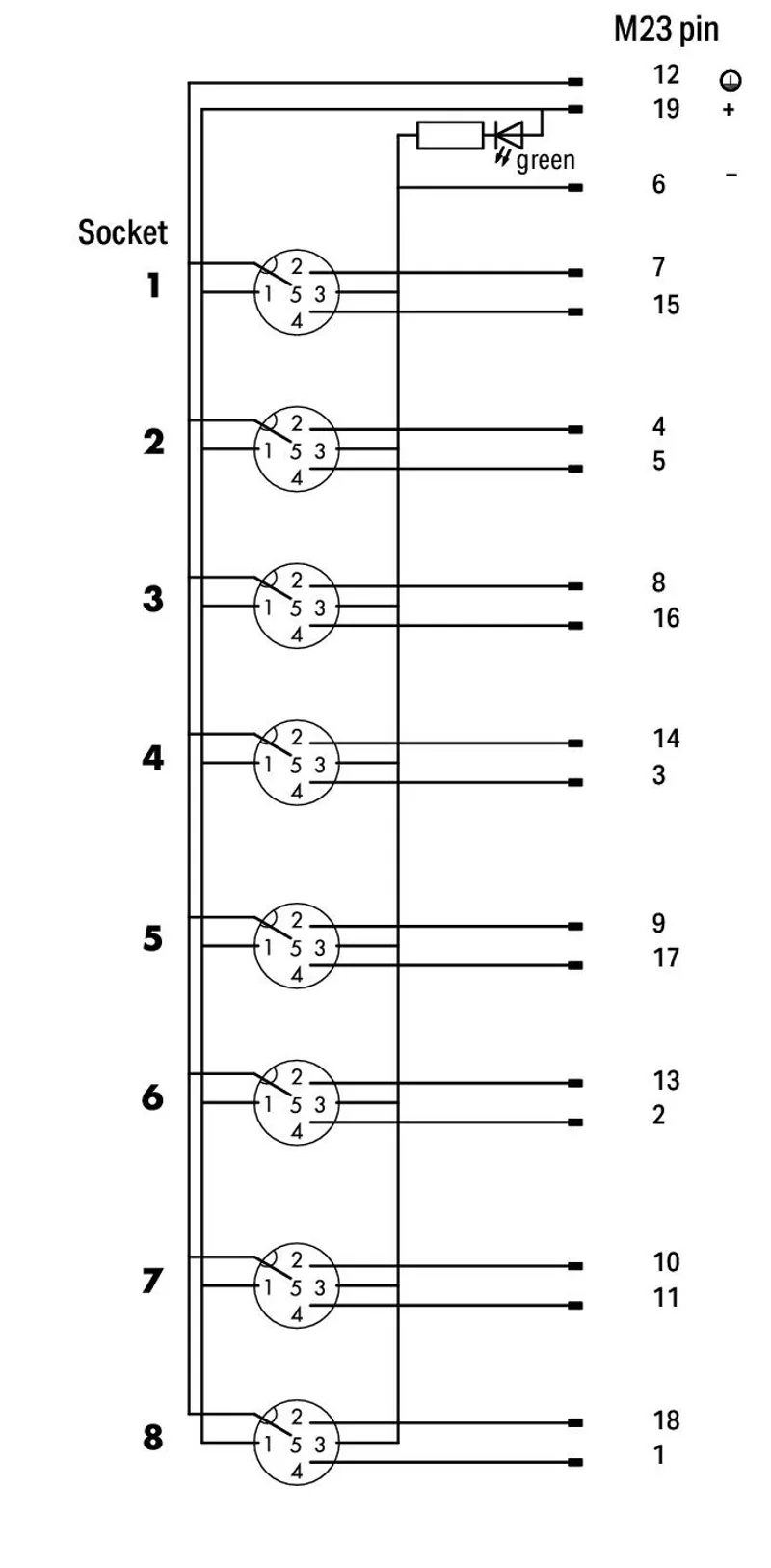

<ul><li>M12 sensor/actuator box, 8-way</li><li>5‐pole (2 signals per contact)</li><li>M23 connector (19‑pole)</li><li>Green LED operating indicator</li><li>incl. markers (10 pcs)</li><li>incl. M12 protective caps (2 pcs)</li></ul><br/><p>Module ohne Status‑LED können auch zur Übertragung analoger Signale verwendet werden!</p>
Specifications
Technical data
| Contact resistance (max.) | 0.01 Ω |
| Supply voltage | 10 … 30 VDC; Rated voltage: 32 V ~ rms |
| Current carrying capacity (signal connections) | 2 A |
| Current carrying capacity (supply connections) | 9 A |
| Rated value of electrical isolation | 500 V |
| Functionally separated potential groups | Kontakt/Kontakt |
| Insulation resistance | >109 Ω |
| Signal characteristics | PNP |
| Indicators | LED (U) green: sensor/actuator box status |
Connection data
| Connection technology: I/O | 8 x M12 socket; 5-pole; incl. ground |
| Connection technology: trunk cable | 1 x M23 plug; 19-pole |
Physical data
| Width | 60 mm / 2.362 inches |
| Height | 34 mm / 1.339 inches |
| Depth | 152 mm / 5.984 inches |
Mechanical data
| Mounting type | Screw mounting |
| Weight | 240 g |
Material data
| Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free |
| Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
| Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) |
Environmental requirements
| Ambient temperature (operation) | -25 … +80 °C |
| Protection type | IP67 |
| Note on protection type | Per EN 60529 (NEMA 6 & 6P) in the fully locked position with its plugs or protective caps |
| Pollution degree | 3 per VDE 0110 |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454515348 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121528 |
| eCl@ss 10.0 | 27-44-01-11 |
| eCl@ss 9.0 | 27-44-01-08 |
| ETIM 9.0 | EC003558 |
| ETIM 10.0 | EC003558 |
| ECCN | NO US CLASSIFICATION |
