Available on request
Connecting cable; 12-pole; Length: 5 m
MPN: 756-3201/120-050 · Brand: Wago
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor/Actuator Boxes |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-3201/120-050 be shipped?
756-3201/120-050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-3201/120-050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-3201/120-050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-3201/120-050, subject to availability and destination.
Connecting cable; 12-pole; Length: 5 m 756-3201/120-050
Specifications
Technical data

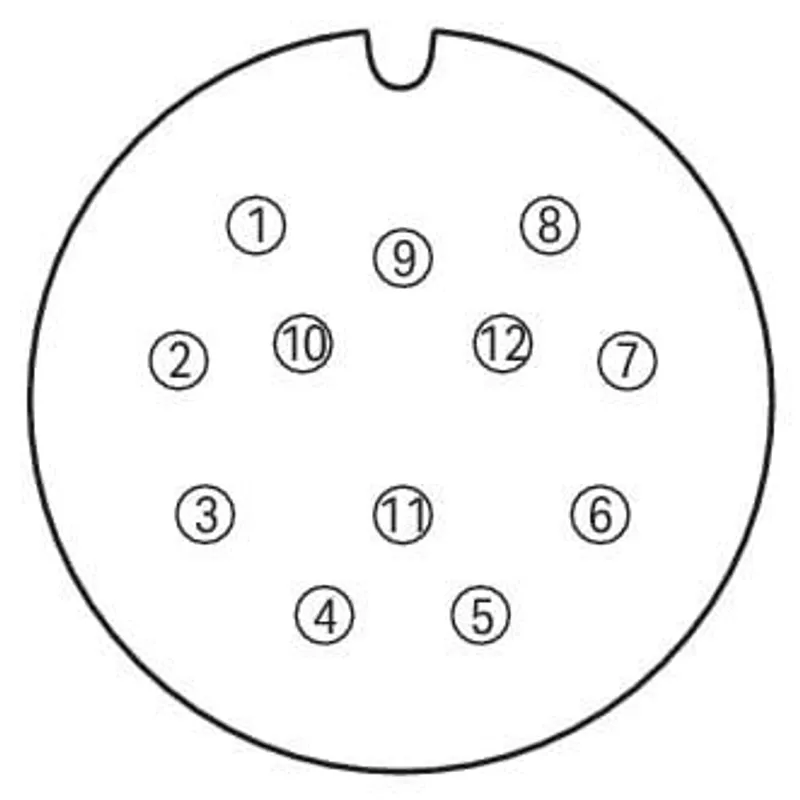

| Connection type | M23 socket - free end |
| Pole number | 12 |
| Cable connection direction to mating direction | 0 ° |
| Cable length | 5 m |
| Operating voltage | ≤ 300 V |
| Operating current | 8 A |
| Rated impulse withstand voltage | ≥ 2.0 kV rms |
Mechanical data
| Bending cycles | 2 Mio. |
| Drag chain capability | yes |
| Weight | 522 g |
| Color | black |
Environmental requirements
| Ambient (operating) temperature (dynamic) | -25 … +80 °C |
| Ambient (operating) temperature (static) | -40 … +90 °C |
| Protection type | IP67 |
Commercial data
| Product Group | 23 (I/O passive and accessories) |
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918568883 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
