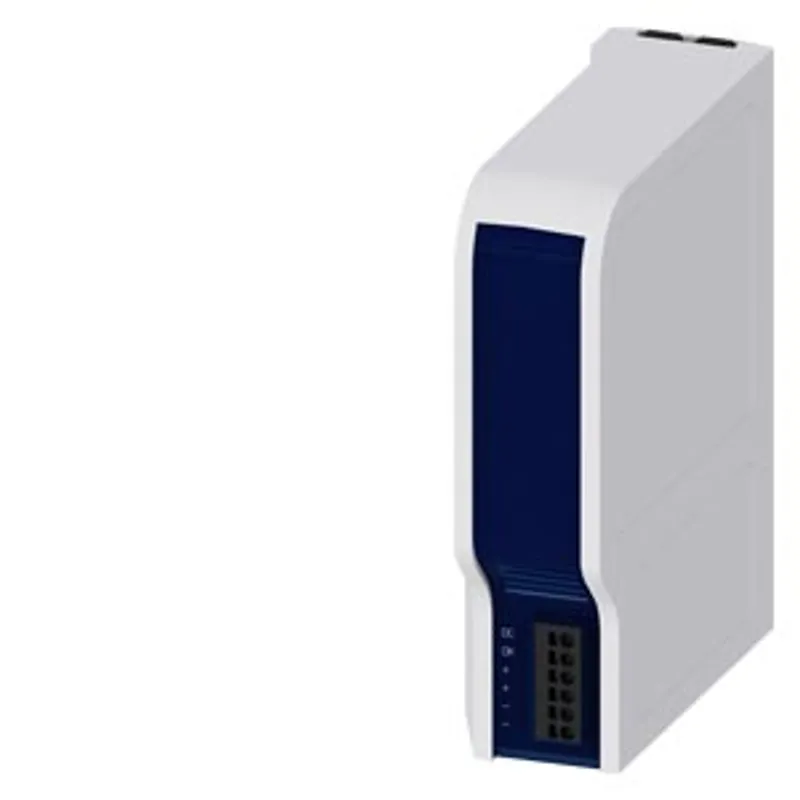

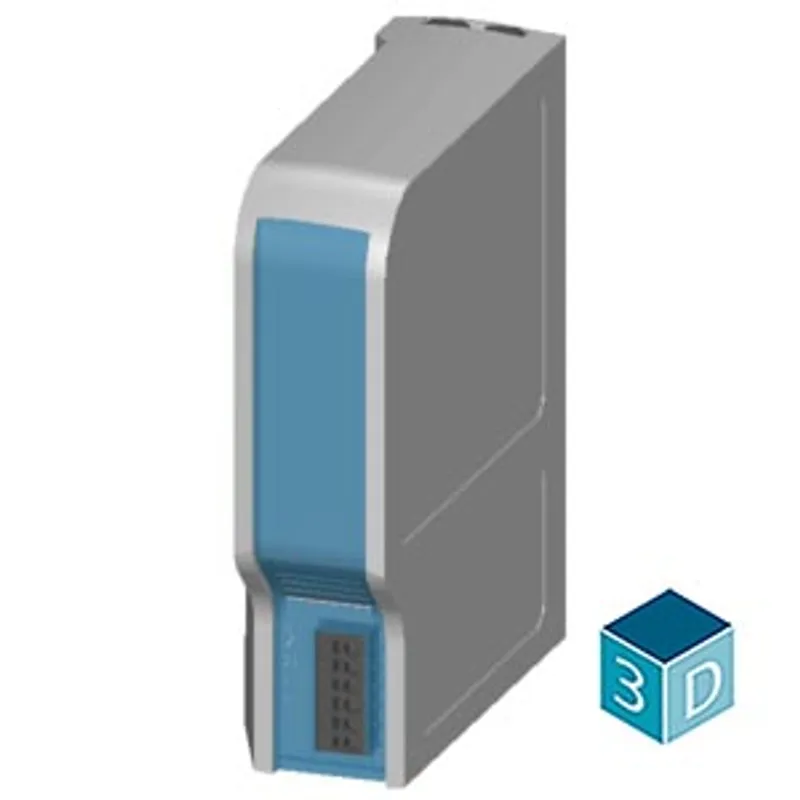

Siemens 8US2830-2BE01

Busbar system 8US2, power supply unit 24 V DC, 10 A

MPN: 8US2830-2BE01
Category: SENTRON 8US2 CrossBoard Busbar System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8US2830-2BE01?

busbar system 8US2, power supply unit 24 V DC, 10 A

Specifications

Model

product brand name	SENTRON
product designation	Power supply unit
type of voltage	AC
operating voltage at AC rated value	380 ... 480 V
output voltage at DC	24 V
insulation voltage rated value	800 V
surge voltage resistance rated value	6 kV
output current rated range full-scale value	10 A
protection class IP	IP30
power loss [W] maximum	13.2 W
property of the output short-circuit proof	Yes
type of electrical connection	spring-loaded terminals

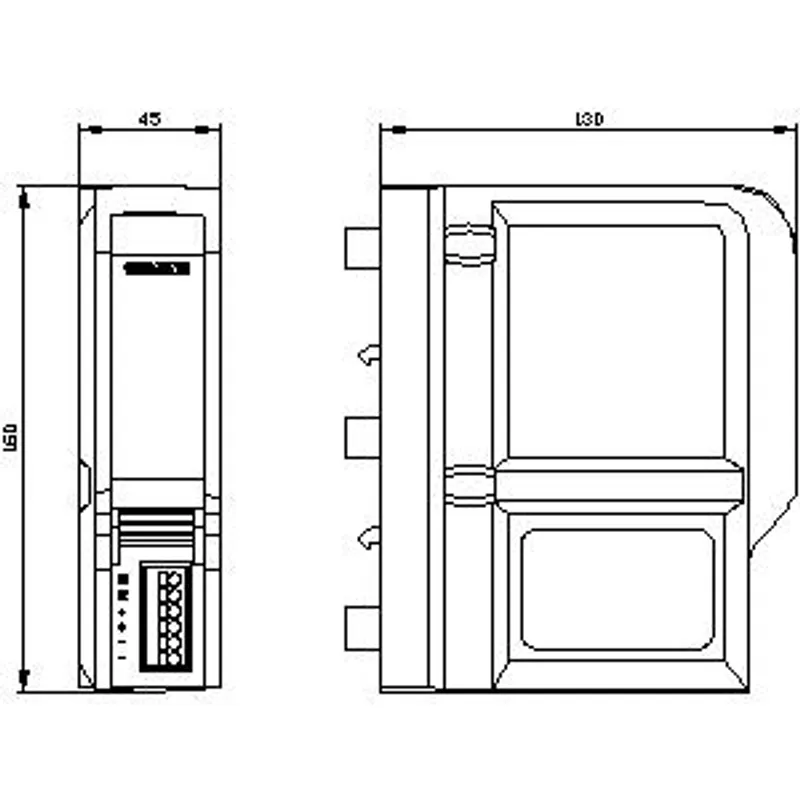

height	160 mm
width	45 mm
depth	130 mm
fastening method	for snapping onto 8US2 busbar system
Net Weight	703 g
reference code according to IEC 81346-2	TB

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8US2830-2BE01PDF

8US2830-2BE01: frequently asked questions

When can 8US2830-2BE01 be shipped?

8US2830-2BE01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8US2830-2BE01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8US2830-2BE01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8US2830-2BE01, subject to availability and destination.
