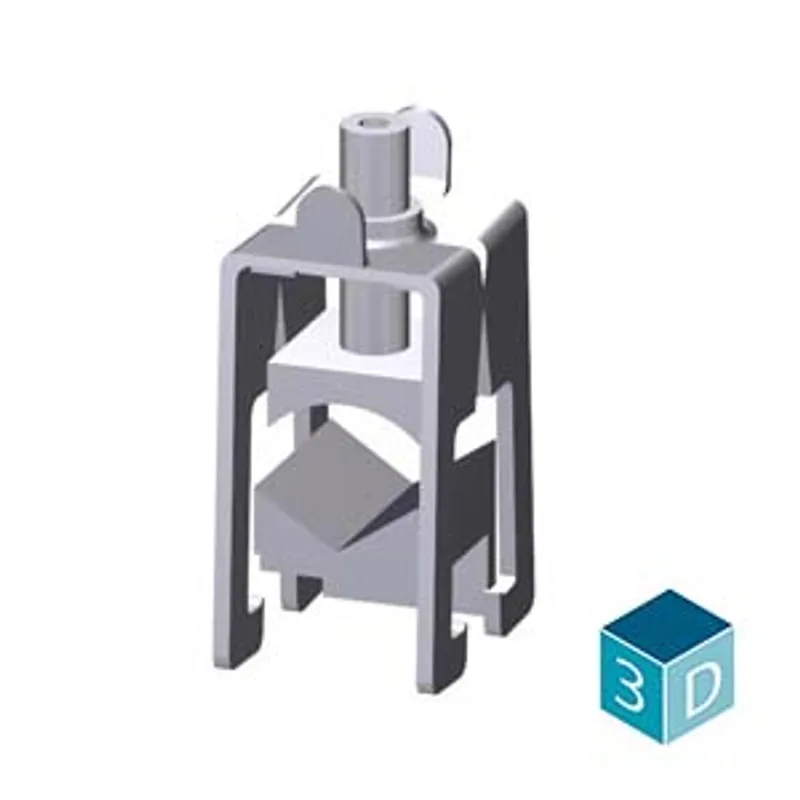

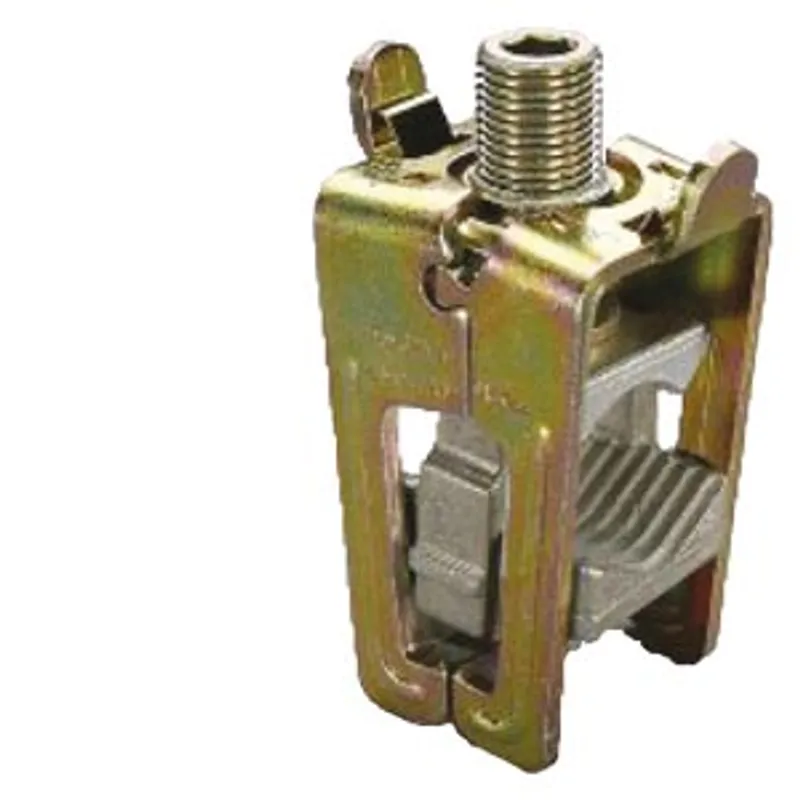

Siemens 8US1941-2AA02
Busbar system, accessories Connecting terminal CU/Al 95...300 mm2 Rail section 20, 25, 30 x 5
- MPN
- 8US1941-2AA02
- Category
- SENTRON 8US1 Busbar System
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 8US1941-2AA02?
Busbar system, accessories Connecting terminal CU/Al 95...300 mm2 Rail section 20, 25, 30 x 5, 10 mm and for TT-profile
Specifications
Model
| product brand name | SENTRON |
| product designation | Connecting terminal |
| design of the product | Accessories |
Supply voltage
| operating voltage at AC rated value | 690 V |
| suitability for use | for busbars 20, 25, 30 x 5, 10 mm and mounting rails |
according UL
| operational current according to UL 508 rated value | 420 A |
Connections
| installation or assembly note | Suitable for aluminum conductors. For use of aluminum conductors, follow the maintenance instructions. |
| type of connectable conductor cross-sections for AWG cables | AWG 3/0 - MCM 600 |
| type of connectable conductor cross-sections for aluminum conductor — solid | Al 120 - 240 mm² sector-shaped conductor, solid |
| type of connectable conductor cross-sections for aluminum conductor — stranded | Al 120 - 300 mm² circular conductor, stranded and sector-shaped conductor, stranded |
| type of connectable conductor cross-sections for copper conductor stranded | 95 to 300 mm² circular conductor, sector-shaped conductor, stranded |
| type of connectable conductor cross-sections of the laminated conductor rails | circular conductor, sector-shaped conductor, stranded |
Mechanical Design
| height | 51 mm |
| width | 41 mm |
| depth | 86 mm |
| Net Weight | 406 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8US1941-2AA02: frequently asked questions
When can 8US1941-2AA02 be shipped?
8US1941-2AA02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8US1941-2AA02 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8US1941-2AA02 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8US1941-2AA02, subject to availability and destination.
