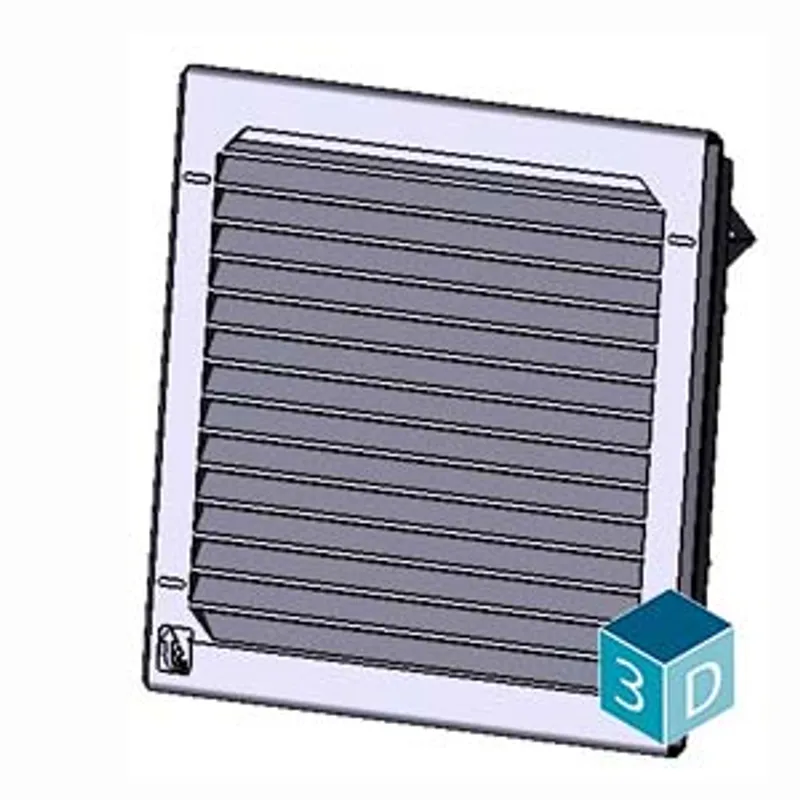

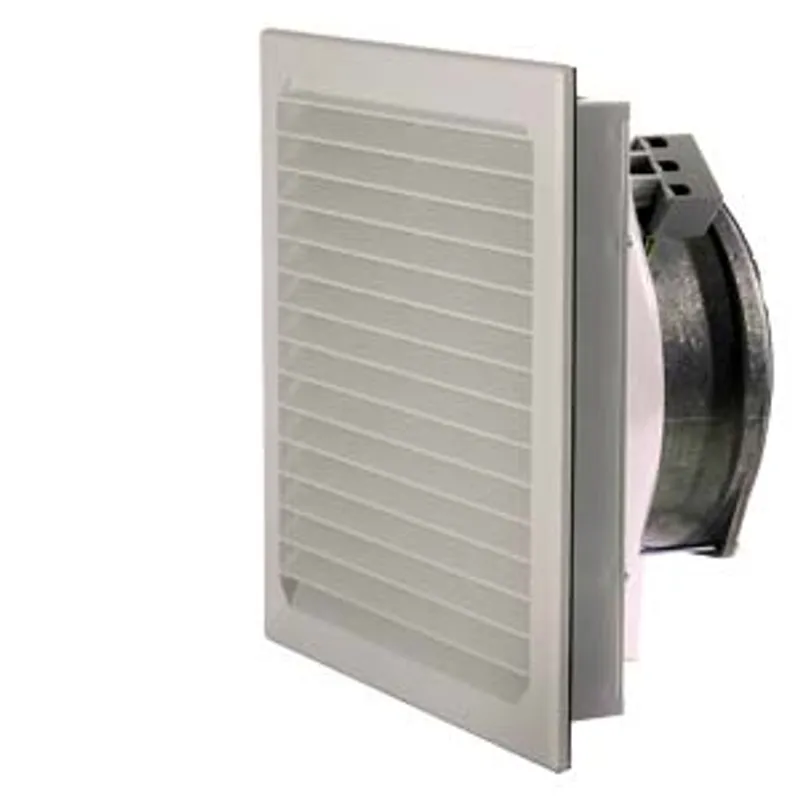

Siemens 8MR6523-6LV45

Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP55, EMC, Airflow: 147 m3/h, Ue AC: 230 V

MPN: 8MR6523-6LV45
Category: Air-Conditioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MR6523-6LV45?

Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7035, IP55, EMC, Airflow: 147 m3/h, Ue AC: 230 V

Specifications

Model

product brand name	SIVACON
product designation	filter fan
type of ventilation	ventilation
fan design withdrawable fan	No
design of the product EMC version	Yes

General technical data

A-rated sound power level maximum	44 dB
consumed active power rated value	18 W
cutout width	223 mm
cutout height	223 mm
operating period	40 000 h
rotor speed at 50 Hz rated value	2 760 1/min
rotor speed at 60 Hz rated value	3 100 1/min
type of voltage of the operating voltage	AC
operating voltage — at AC at 50 Hz rated value maximum	230 V
operating voltage — at AC at 60 Hz rated value maximum	230 V

Protection class

protection class IP

IP55

Appearance

RAL color number	7 035
color	light grey

Product details

product component fan

Number

number of ventilators

Mechanical Design

height	250 mm
width	250 mm
depth	102 mm
installation location	Control cabinet side panels, door, vertical
fastening method	screw fixing
fastening method — 19-inch installation	No
fastening method — wall mounting	Yes
Net Weight	1.577 kg
material	plastic
ambient temperature during operation — minimum	-10 °C
ambient temperature during operation — maximum	55 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 8MR6523-6LV45PDF
