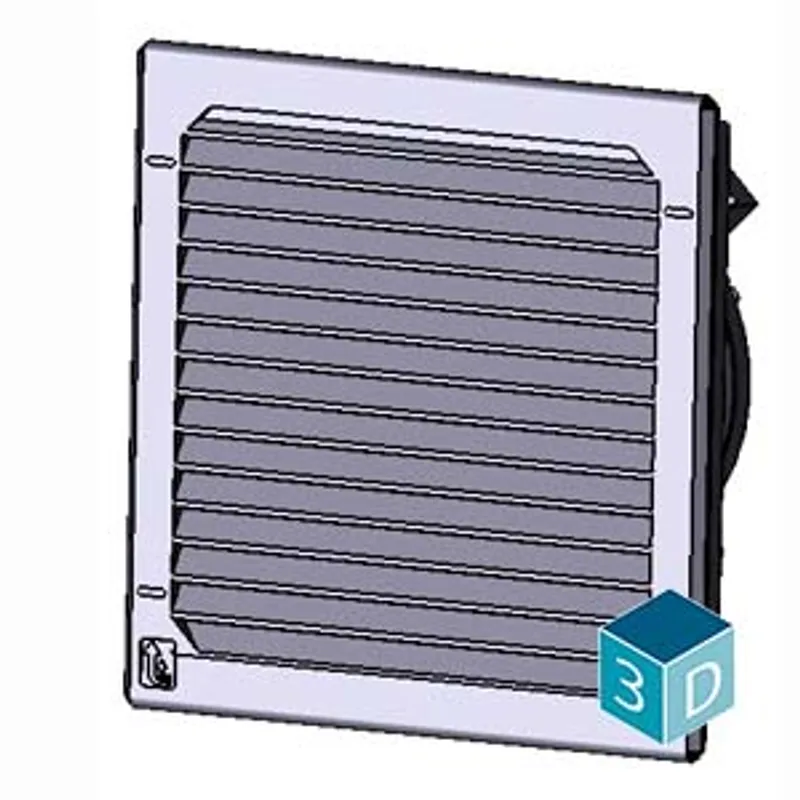

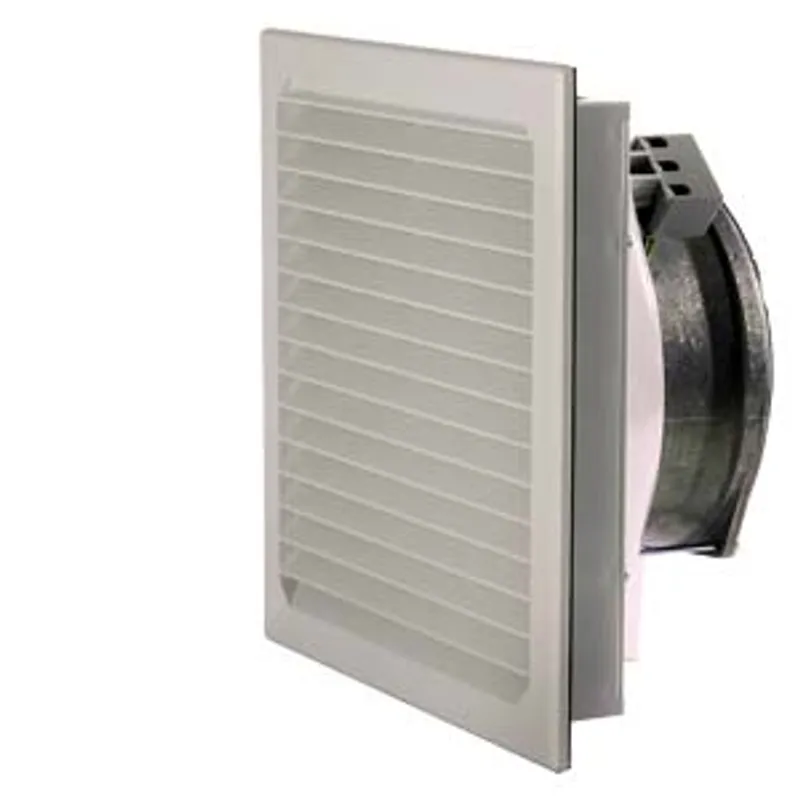

Siemens 8MR6402-2LV41
Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7032, IP54, Airflow: 250 m3/h, Ue DC: 24 V
- MPN
- 8MR6402-2LV41
- Category
- Air-Conditioning
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 8MR6402-2LV41?
Filter fan, Extract: W: 223 mm, H: 223 mm, RAL 7032, IP54, Airflow: 250 m3/h, Ue DC: 24 V
Specifications
Model
| product brand name | SIVACON |
| product designation | filter fan |
| type of ventilation | ventilation |
| fan design withdrawable fan | No |
| design of the product EMC version | No |
General technical data
| A-rated sound power level maximum | 52 dB |
| consumed active power rated value | 16 W |
| cutout width | 223 mm |
| cutout height | 223 mm |
| operating period | 40 000 h |
| rotor speed at 50 Hz rated value | 2 950 1/min |
| type of voltage of the operating voltage | DC |
| operating voltage — at DC rated value | 24 V |
Protection class
| protection class IP | IP54 |
Appearance
| RAL color number | 7 032 |
| color | pebble grey |
Product details
| product component fan | No |
Number
| number of ventilators | 1 |
Mechanical Design
| height | 250 mm |
| width | 250 mm |
| depth | 126 mm |
| installation location | Control cabinet side panels, door, vertical |
| fastening method | snap-on mounting |
| fastening method — 19-inch installation | No |
| fastening method — wall mounting | Yes |
| Net Weight | 1.676 kg |
| material | plastic |
| ambient temperature during operation — minimum | -10 °C |
| ambient temperature during operation — maximum | 55 °C |
