Home / Siemens / Air-Conditioning / Siemens 8MR2132-5A

Siemens

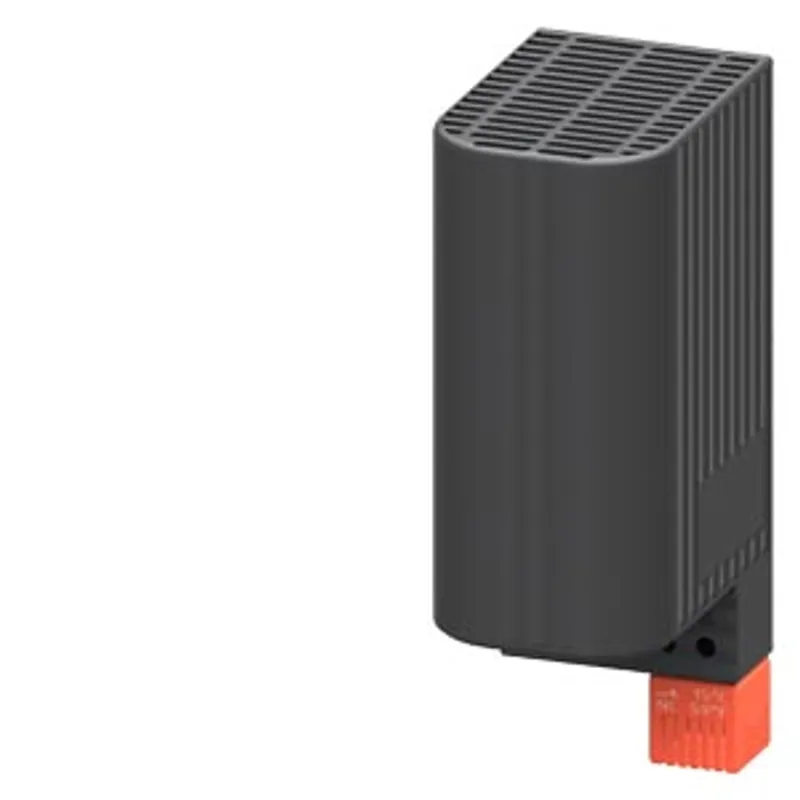

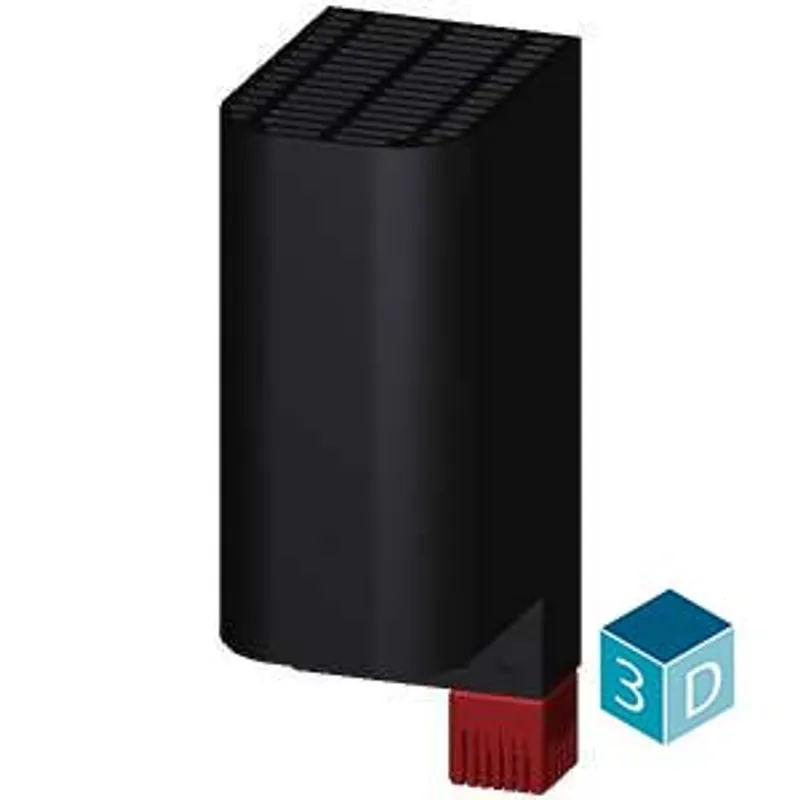

Siemens 8MR2132-5A

120-240V, 150WATTS, 15DEGR. CSF060, 06021.0-00

MPN: 8MR2132-5A
Category: Air-Conditioning

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8MR2132-5A?

120-240V, 150WATTS, 15DEGR. CSF060, 06021.0-00,

Specifications

Model

product brand name	SIVACON
product designation	heater unit
design of the product	Semiconductor

General technical data

consumed active power rated value	150 W
switch-off temperature	15 °C
operating temperature — minimum	-40 °C
operating temperature — maximum	70 °C

Voltage

type of voltage of the operating voltage	AC
continuous heating power at 20 °C	150 W
inrush current typical	8 A
operating voltage — rated value minimum	120 V
operating voltage — rated value maximum	240 V
operating voltage — at AC at 50 Hz rated value minimum	120 V
operating voltage — at AC at 50 Hz rated value maximum	240 V
operating voltage — at AC at 60 Hz rated value minimum	120 V
operating voltage — at AC at 60 Hz rated value maximum	240 V

Protection class

protection class IP

IP20

Main circuit

operational current of the slow-blow fuse link

8 A

Product details

product component — blower	No
product component — thermostat	Yes

Connections

tightening torque with screw-type terminals maximum	0.8 N·m
type of connection technology	2-pole terminal 2.5 mm2

Mechanical Design

height	150 mm
width	60 mm
depth	90 mm
fastening method	Clip for 35 mm DIN rail
mounting position	air flow direction vertical (air exits on top/connection at bottom)
Net Weight	581 g
material of the enclosure	plastic

Environmental conditions

relative humidity reference value	90 %
ambient temperature during storage — minimum	-45 °C
ambient temperature during storage — maximum	70 °C
