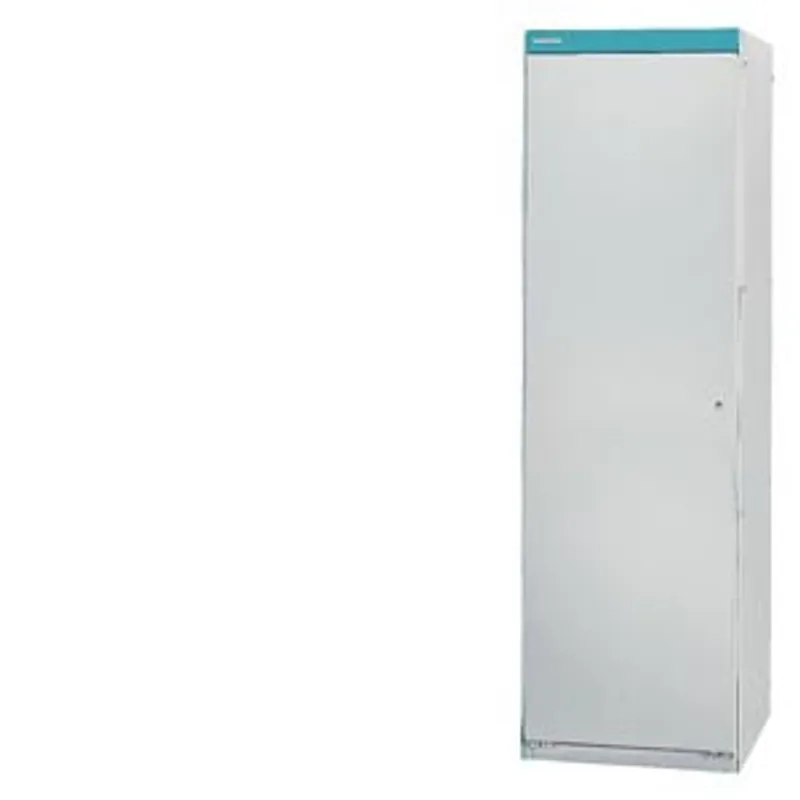

Siemens 8MF5896-4E
Standard cabinet 8MF5 HxWxD=1800x 900x 600 Installation: single non-ventilated, not mounted, screwed IP40
- MPN
- 8MF5896-4E
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 8MF5896-4E?
Standard cabinet 8MF5 HxWxD=1800x 900x 600 Installation: single non-ventilated, not mounted, screwed IP40
Specifications
Model
| product brand name | SIVACON |
| product designation | standard system cubicle |
| design of the product | Non-ventilated |
| type of installation | stand-alone installation |
| design of the surface | powdered |
| design of the product EMC version | No |
| design of the control cabinet PC design | No |
| design of the control cabinet console design | No |
Protection class
| protection class IP | IP40 |
| suitability for installation for inch dimensions | 10-inch, 17-inch, 19-inch, 21-inch, 23-inch, 24-inch |
| suitability for installation for metric dimensions | M8 |
| suitability for use for outside use | No |
Appearance
| RAL color number | 7 035 |
| color | pebble grey |
| product component – removable frame | No |
| product component – ventilation door | No |
| product component – mounting plate | No |
| product component – rear door | No |
| product component – pitched roof | No |
| product component – viewing door | No |
| product component – height-adjustable mounting plate | No |
| number of locking devices | 1 |
| number of doors | 1 |
Mechanical Design
| height | 1 800 mm |
| width | 900 mm |
| depth | 600 mm |
| number of modular height units for installation height | 34 |
| fastening method | standing |
| fastening method 19-inch installation | Yes |
| Net Weight | 110 kg |
| material | steel |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8MF5896-4E: frequently asked questions
When can 8MF5896-4E be shipped?
8MF5896-4E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8MF5896-4E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8MF5896-4E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8MF5896-4E, subject to availability and destination.
