Siemens 8GB1371-3

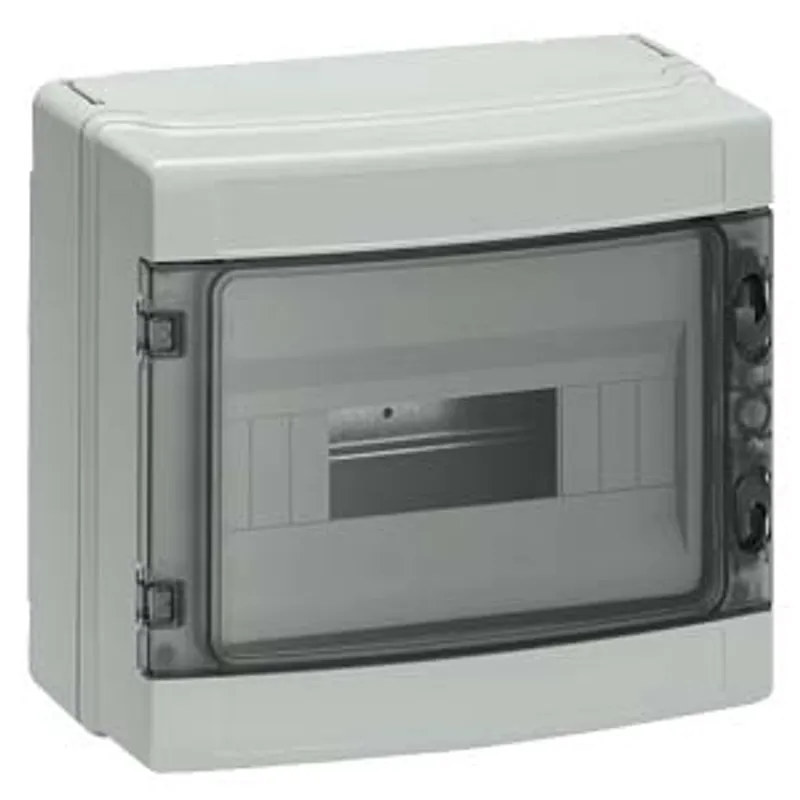

SIMBOX Universal WP Wall-mounted distribution board FM, IP65 1-tier, 18 MW, without Terminal strip

MPN: 8GB1371-3
Category: ALPHA SIMBOX WP IP65 - Surface-mounting

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 8GB1371-3?

SIMBOX Universal WP Wall-mounted distribution board FM, IP65 1-tier, 18 MW, without Terminal strip

Specifications

Model

product brand name	ALPHA
product designation	SIMBOX WP
design of the product	Surface mounting
design of the cap/top cover	closed
design of the product EMC version	No

Protection class

protection class IP

IP65

Appearance

RAL color number	7 035
color	grey

Product details

product component — DIN mounting bar	Yes
product component — mounting plate	No
product component — transparent cover	Yes
product extension optional side-by-side mounting	No

Number

number of rows

Mechanical Design

height	285 mm
width	410 mm
depth	140 mm
installation depth	70 mm
number of modular width units	18
fastening method	Surface mounting
Net Weight	2.165 kg
material of the enclosure	others
