What is the Siemens 7MH5001-0AD20?

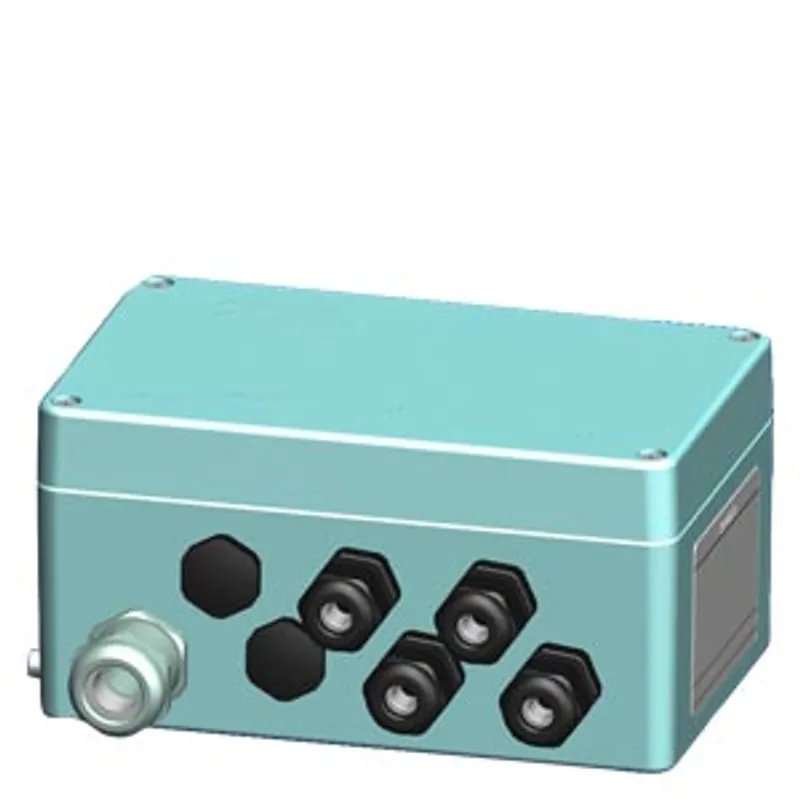

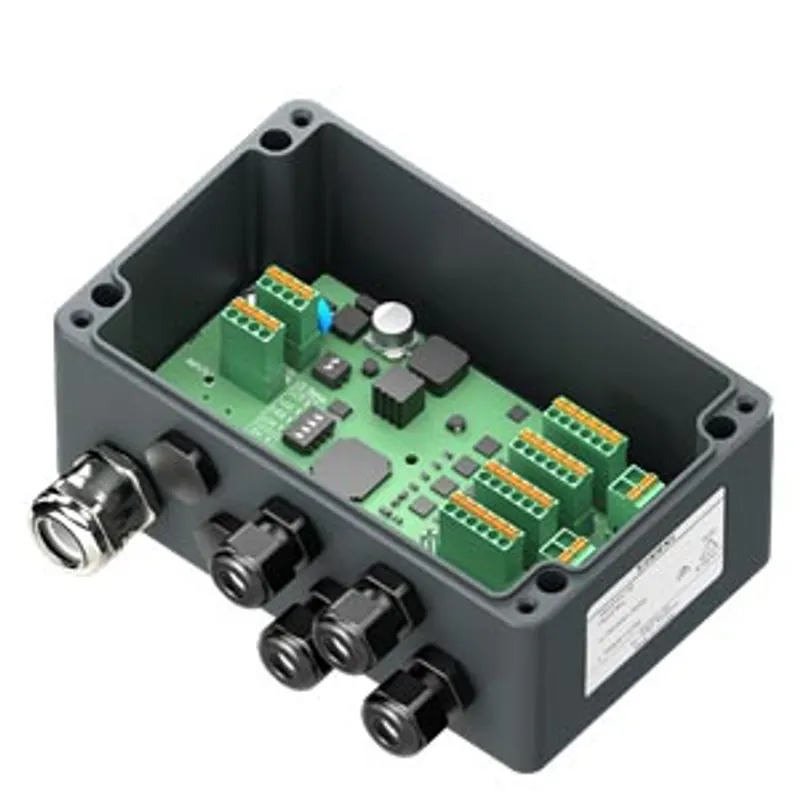

SIWAREX DB, four-channel digital junction box for additional diagnostic options for analog load cells / strain gauges (full bridges) for SIWAREX WP weighing module, 1xRS485, 4xLC load cell interface (1-4mV/V), aluminum die-cast housing, protection class: IP66

Specifications

General information

Product type designationSIWAREX DB

Supply voltage

Type of supply voltage24 V DC

Digital inputs

Number of digital inputs0

Degree and class of protection

IP degree of protectionIP66, Nema 4X for devices without explosion protection; IP65 for devices with explosion protection

Standards, approvals, certificates

CE markYes
UKCA markYes
UL approvalYes
RoHS conformityYes
Use in hazardous areas — ATEX markingII 3 G Ex ec IIC T4 Gc and II 3 D Ex tc IIIC T120 °C Dc
Use in hazardous areas — ATEX certificateDEKRA 21 ATEX 0025X

Ambient conditions

Ambient temperature during operation — min.-20 °C
Ambient temperature during operation — max.80 °C
Ambient temperature during storage/transportation — min.-50 °C
Ambient temperature during storage/transportation — max.100 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.2 000 m

Connection method

Connection I/O signals — Connection methodScrew terminals
Connection I/O signals — Conductor cross-section in mm² — Connectable cable cross-sections for flexible cables with end sleeve, min.0.25 mm²
Connection I/O signals — Conductor cross-section in mm² — Connectable cable cross-sections for flexible cables with end sleeve, max.1.5 mm²
Connection I/O signals — Conductor cross-section acc. to AWG — Connectable cable cross-sections for flexible cables with end sleeve, min.24
Connection I/O signals — Conductor cross-section acc. to AWG — Connectable cable cross-sections for flexible cables with end sleeve, max.16

Mechanics/material

Design of housingDie-cast aluminum

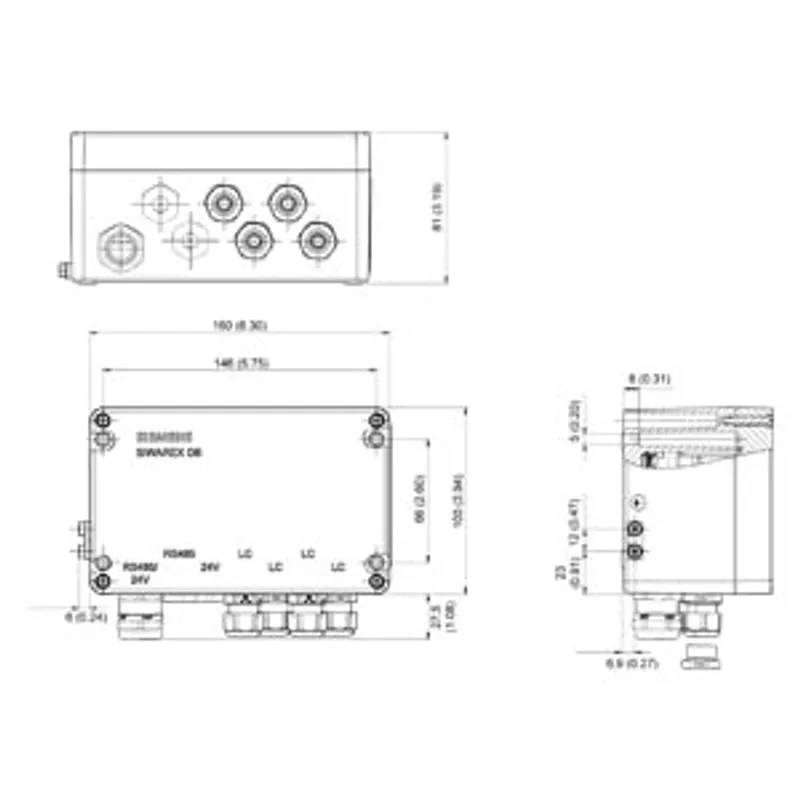

Dimensions

Width160 mm
Height100 mm
Depth81 mm

Weights

Weight, approx.0.95 kg

Scope of supply

Delivery quantity in pieces1

Other

Usable in the following products — Product 1SIWAREX WP2x1
Usable in the following products — Product 2SIWAREX WP3x1

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

7MH5001-0AD20: frequently asked questions

When can 7MH5001-0AD20 be shipped?

7MH5001-0AD20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 7MH5001-0AD20 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 7MH5001-0AD20 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7MH5001-0AD20, subject to availability and destination.
