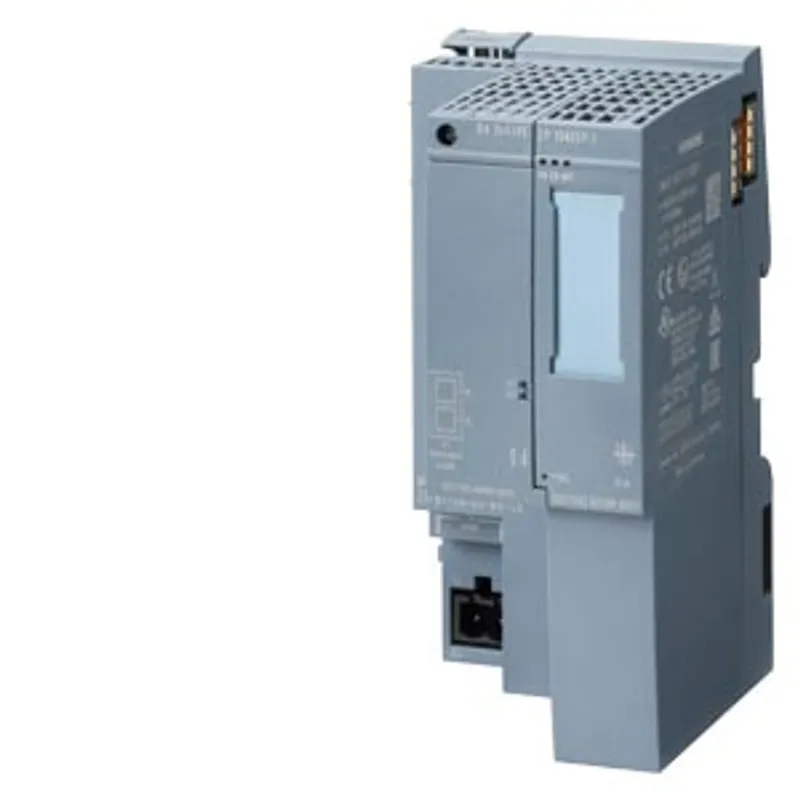

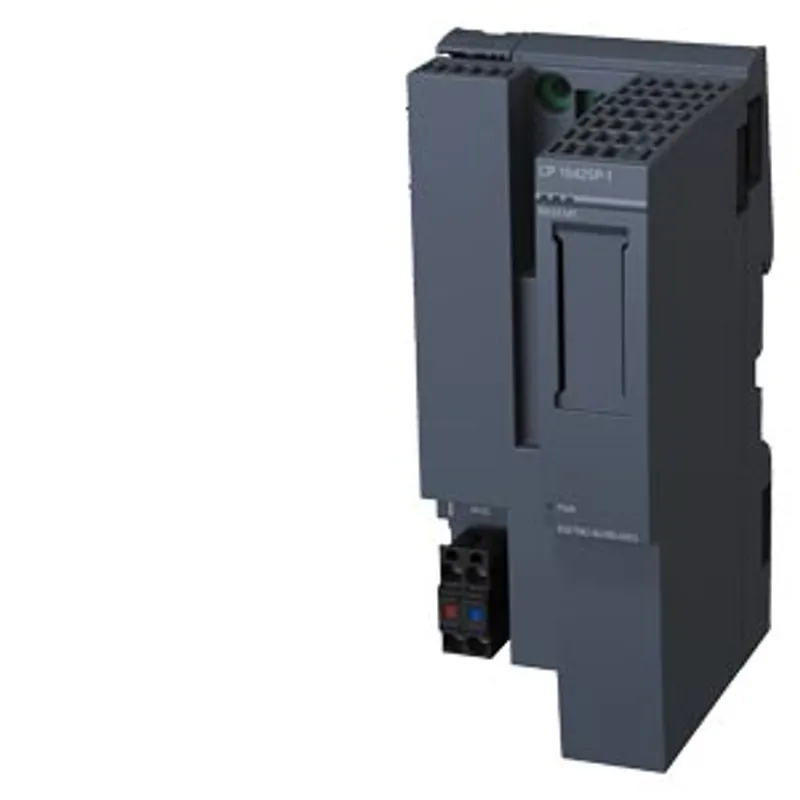

Siemens 6GK7542-6UX00-0XE0

Communications processor CP 1542SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet

MPN
6GK7542-6UX00-0XE0
Category
CP 1542SP-1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK7542-6UX00-0XE0?

Communications processor CP 1542SP-1 for connection of an SIMATIC S7-ET 200SP to Industrial Ethernet; open IE communication (TCP/IP, ISO-on-TCP, UDP), PG/OP, S7 routing, IP broadcast/multicast, SNMPV1, DHCP, Email, IPV4/IPV6, time-of-day synchronization via NTP, access to web server of CPU, bus adapter required.

Specifications

General

product brand nameSIMATIC NET
Technical Product Detail Pagehttps://i.siemens.com/1P6GK7542-6UX00-0XE0

transfer rate

transfer rate — at the 1st interface10 ... 100 Mbit/s

interfaces

number of interfaces / according to Industrial Ethernet1
number of electrical connections — at the 1st interface / according to Industrial Ethernet2
type of electrical connection — at the 1st interface / according to Industrial Ethernetvia ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage19.2 ... 28.8 V
power loss [W]6 W

ambient conditions

ambient temperature — for vertical installation / during operation-30 ... +50 °C
ambient temperature — for horizontally arranged busbars / during operation-30 ... +60 °C
ambient temperature — during storage-40 ... +70 °C
ambient temperature — during transport-40 ... +70 °C
relative humidity — at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

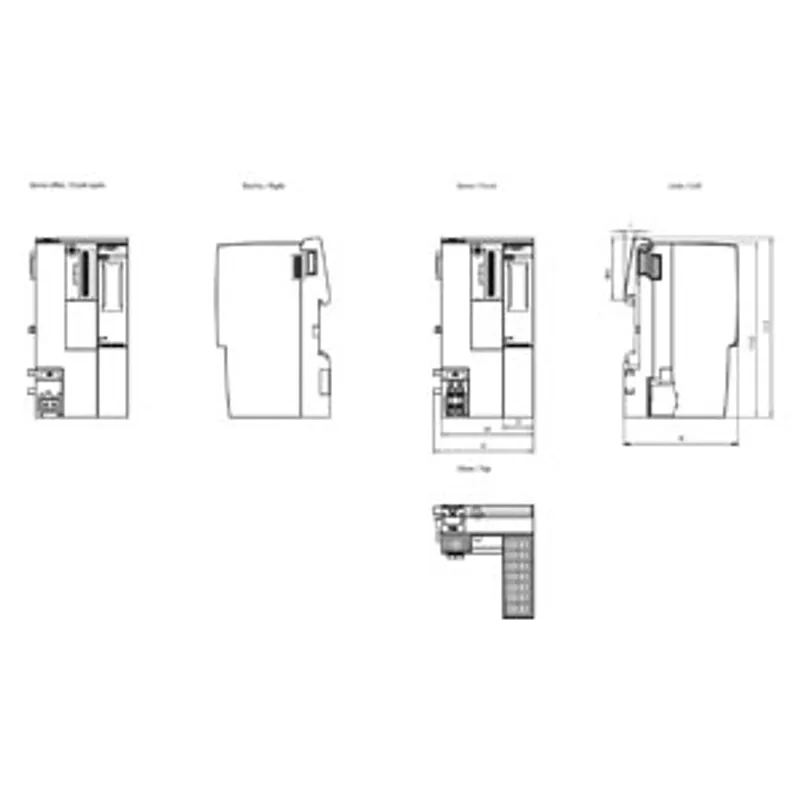

design, dimensions and weights

width60 mm
height117 mm
depth74 mm
net weight0.18 kg
fastening method — 35 mm DIN-rail mountingYes

product features, product functions, product components / general

number of units — per CPU / maximum2
number of units — note2 CPs can be pluged in per CPU, simultaneous operation with BA Send and CM DP is possible

performance data / open communication

number of possible connections / for open communication — by means of T blocks / maximum32
data volume — as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum65536 byte

performance data / S7 communication

number of possible connections / for S7 communication — maximum16
number of possible connections / for S7 communication — with OP connections / maximum16

performance data / multi-protocol mode

number of active connections / with multi-protocol mode32

product functions / management, configuration, engineering

product function / MIB supportYes
protocol / is supported — SNMP v1Yes
protocol / is supported — SNMP v3No
protocol / is supported — DCPYes
protocol / is supported — LLDPYes
configuration software — requiredSTEP 7 Professional V14 (TIA Portal) or higher
identification & maintenance function — I&M0 - device-specific informationYes
identification & maintenance function — I&M1 - higher level designation/location designationYes
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function / web-based diagnosticsYes; via ET 200SP CPU

product functions / security

product function — blocking of communication via physical portsYes

product functions / time

product function / SICLOCK supportYes
product function / pass on time synchronizationNo
protocol / is supported — NTPYes
protocol / is supported — NTP (secure)No
time synchronization — from NTP-serverYes

standards, specifications, approvals

certificate of suitability / CE markingYes
certificate of suitability / UKCA markingYes
certificate of suitability / Regulatory Compliance Mark (RCM)Yes
certificate of suitability / RoHS conformityYes
certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes
certificate of suitability / IECExYes
certificate of suitability / CCC / for hazardous zone according to GB standardYes
certificate of suitability / FM registrationYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes
global warming potential [CO2 eq] — total207.05 kg
global warming potential [CO2 eq] — during manufacturing19.13 kg
global warming potential [CO2 eq] — during operation187.74 kg
global warming potential [CO2 eq] — after end of life0.18 kg

further information / internet links

internet link — to website: Selection guide for cables and connectorshttps://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to website: Industrial communicationhttps://www.siemens.com/simatic-net
internet link — to web page: SiePortalhttps://sieportal.siemens.com/
internet link — to website: Image databasehttps://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Managerhttps://siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6GK7542-6UX00-0XE0: frequently asked questions

When can 6GK7542-6UX00-0XE0 be shipped?

6GK7542-6UX00-0XE0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GK7542-6UX00-0XE0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GK7542-6UX00-0XE0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK7542-6UX00-0XE0, subject to availability and destination.
