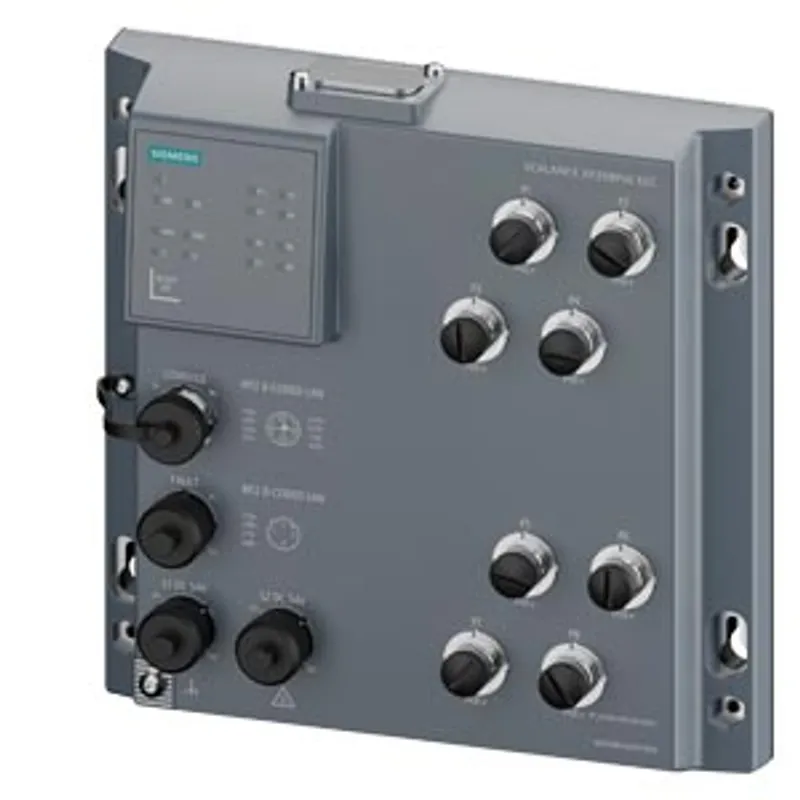

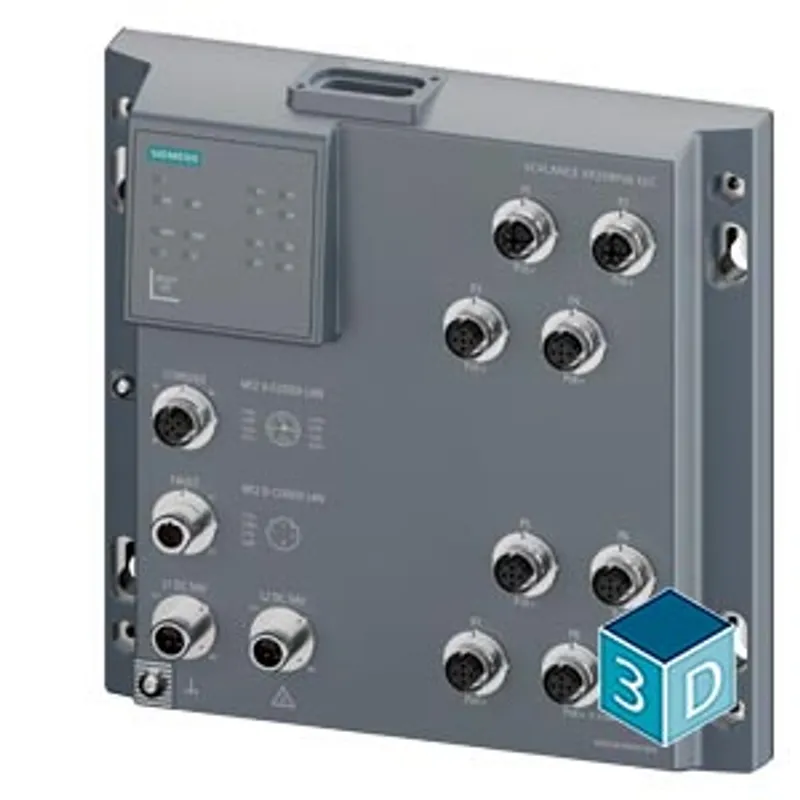

What is the Siemens 6GK5208-0UA10-5ES6?

SCALANCE XP208PoE EEC, IP65, managed layer 2 IE switch, IEC 6 2443-4-2 certified; 6x 10/10 0 Mbps, 2x 1000 Mbps, M12 ports, 802.3 at 8x30 W (max. 240 W) LED diagnostics, error signaling contact, redundant power supply, PROFINET IO device, network management, can be operated in redundant ring, dust caps, including -40 °C to +70 °C, C-PLUG optional.

Specifications

product type designation

product brand nameSCALANCE
product type designationXP208 PoE EEC
Technical Product Detail Pagehttps://i.siemens.com/1P6GK5208-0UA10-5ES6

transfer rate

transfer rate10, 100, 1000 Mbit/s

interfaces / for communication / integrated

number of electrical connections — for network components or terminal equipment8; M12
number of 10/100 Mbit/s M12-ports (D-coded) — with PoE6
number of 10/100/1000 Mbit/s M12-ports (X-coded) — with PoE2

interfaces / other

number of electrical connections — for operator console1
number of electrical connections — for signaling contact1
number of electrical connections — for power supply2
type of electrical connection — for operator console5-pole M12 socket (A-coded)
type of electrical connection — for signaling contact5-pole M12 plug (B-coded)
type of electrical connection — for power supply4-pole M12 plug (L-coded)
design of the removable storage — C-PLUGYes
product function / device replacement with replacement of the storage mediumYes
operating voltage / of the signaling contacts — at DC / rated value54 V
operational current / of the signaling contacts — at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes
supplied active power / of PSE / with PoE — per port / maximum30 W
supplied active power / of PSE / with PoE — total / maximum240 W
type of voltage / 1 / of the supply voltageDC
type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value54 V; XP-200EEC with EN 50155 supports the voltage range 52 ... 57 V DC
type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value10 W
type of voltage / 1 / of the supply voltage — consumed current / 1 / at rated supply voltage / maximum5.2 A
type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range52 ... 57
type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum5.2 A
type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply4-pole M12 plug (L-coded)
type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply inputYes
type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltage15 A / 60 V

ambient conditions

ambient temperature — during operation-40 ... +70 °C
ambient temperature — during storage-40 ... +85 °C
ambient temperature — during transport-40 ... +85 °C
ambient temperature — noteEEC variants with EN 50155 support for 10 minutes: -40 °C ... +85 °C
relative humidity — at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP65

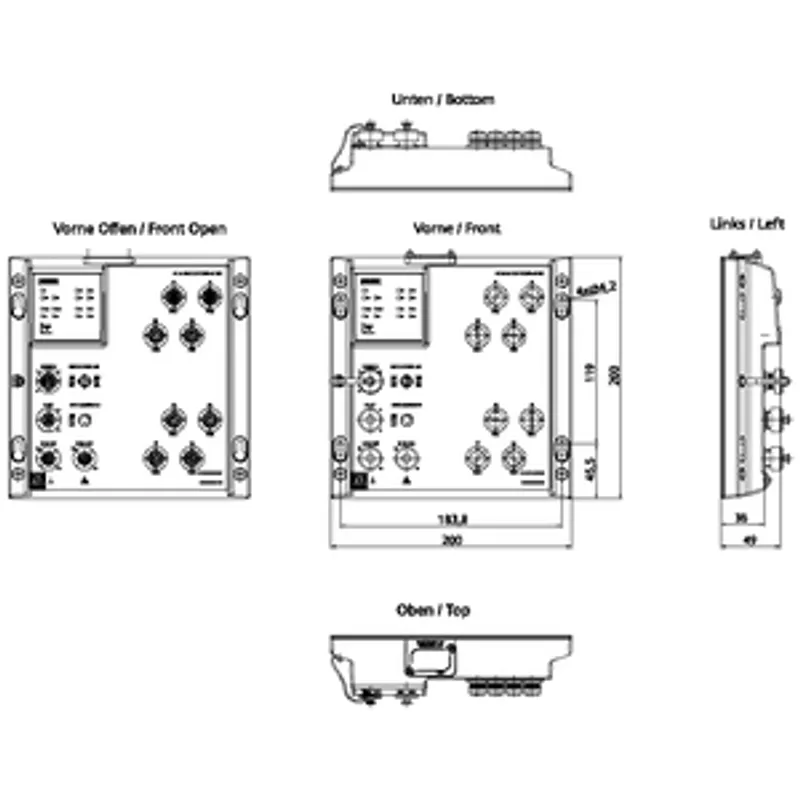

design, dimensions and weights

designcompact
width200 mm
height200 mm
depth49 mm
net weight1.8 kg
product feature / conformal coatingYes
material / of the enclosureAluminum
fastening methodmodule rack mounting, back wall mounting
fastening method — wall mountingYes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product function — QoS according to DSCPYes
product feature — Cut Through switching methodNo
product feature — Store & Forward switching methodYes

product functions / management, configuration, engineering

product function — CLIYes
product function — web-based managementYes
product function — MIB supportYes
product function — TRAPs via emailYes
product function — configuration with STEP 7Yes
product function — RMONYes
product function — SMTP serverNo
product function — port mirroringYes
product function — multiport mirroringYes
product function — CoSYes
product function — with IRT / PROFINET IO switchNo
product function — PROFINET IO diagnosisYes
product function — switch-managedYes
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum10240 byte
protocol / is supported — TelnetYes
protocol / is supported — HTTPYes
protocol / is supported — HTTPSYes
protocol / is supported — TFTPYes
protocol / is supported — SFTPYes
protocol / is supported — BOOTPYes
protocol / is supported — GMRPYes
protocol / is supported — DCPYes
protocol / is supported — LLDPYes
protocol / is supported — EtherNet/IPYes
protocol / is supported — SNMP v1Yes
protocol / is supported — SNMP v2Yes
protocol / is supported — SNMP v3Yes
protocol / is supported — IGMP (snooping/querier)Yes
identification & maintenance function — I&M0 - device-specific informationYes
identification & maintenance function — I&M1 - higher level designation/location designationYes

product functions / diagnostics

product function — port diagnosticsYes
product function — statistics Packet SizeYes
product function — statistics packet typeYes
product function — error statisticsYes
product function — SysLogYes

product functions / VLAN

product function — VLAN - port basedYes
product function — VLAN - protocol-basedNo
product function — VLAN - IP-basedNo
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

product function — DHCP serverYes
product function — DHCP clientYes
product function — DHCP Option 82Yes
product function — DHCP Option 66Yes
product function — DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes
product function — media redundancy protocol (MRP) with redundancy managerYes
product function — Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode
product function — of the PROFINET IO device / is supported / H-Sync forwardingYes
product function — of the PROFINET IO device / is supported / PROFINET system redundancyYes
product function — ring redundancyYes
product function — high speed redundancy protocol (HRP) with redundancy managerYes
product function — high speed redundancy protocol (HRP) with standby redundancyYes
product function — redundancy procedure STPYes
product function — redundancy procedure RSTPYes
product function — redundancy procedure RSTP+Yes
product function — redundancy procedure MSTPYes
product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
product function — passive listeningYes
protocol / is supported — LACPYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRYes

product functions / security

product function — IEEE 802.1x (radius)Yes
product function — RADIUS clientYes
product function — broadcast/multicast/unicast limiterYes
product function — broadcast blockingYes
protocol / is supported — SSHYes
protocol / is supported — SSLYes

product functions / time

product function — SICLOCK supportYes
product function — NTP-clientYes
product function — SNTP clientYes
protocol / is supported — NTPYes
protocol / is supported — SNTPYes
protocol / is supported — IEEE 1588 profile defaultYes

standards, specifications, approvals

certificate of suitability — CE markingYes
certificate of suitability — UKCA markingYes
certificate of suitability — KC approvalYes
certificate of suitability — Regulatory Compliance Mark (RCM)Yes
standard — for EMC interference emissionEN 61000-6-4 (Class A)
standard — for immunity to EMCEN 61000-6-2

standards, specifications, approvals / other

certificate of suitability — railway application in accordance with EN 50155Yes; OT4, ST1, H1, S2, C1, L4, PC2
certificate of suitability — fire protection in accordance with EN 45545-2Yes; Class HL1 - HL3
certificate of suitability — RoHS conformityYes

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)No
Marine classification association — French marine classification society (BV)No
Marine classification association — Chinese Classification Society (CCS)No
Marine classification association — Det Norske Veritas (DNV)No
Marine classification association — Korean Register of Shipping (KRS)No
Marine classification association — Lloyds Register of Shipping (LRS)No
Marine classification association — Nippon Kaiji Kyokai (NK)No
Marine classification association — Polski Rejestr Statkow (PRS)No
Marine classification association — Royal Institution of Naval Architects (RINA)No

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes
global warming potential [CO2 eq] — total317.85 kg
global warming potential [CO2 eq] — during manufacturing43.5 kg
global warming potential [CO2 eq] — during operation274 kg
global warming potential [CO2 eq] — after end of life0.35 kg

product functions / general

MTBF39 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

further information / internet links

internet link — to website: Selection guide for cables and connectorshttps://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
internet link — to website: Industrial communicationhttps://www.siemens.com/simatic-net
internet link — to web page: SiePortalhttps://sieportal.siemens.com/
internet link — to website: Image databasehttps://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Managerhttps://www.siemens.com/cax
internet link — to website: Industry Online Supporthttps://support.industry.siemens.com

security information

security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing43.5 kg
global warming potential [CO2 eq] / during operation274 kg
global warming potential [CO2 eq] / after end of life0.35 kg
global warming potential [CO2 eq] / total317.85 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6GK5208-0UA10-5ES6: frequently asked questions

When can 6GK5208-0UA10-5ES6 be shipped?

6GK5208-0UA10-5ES6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6GK5208-0UA10-5ES6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6GK5208-0UA10-5ES6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5208-0UA10-5ES6, subject to availability and destination.

More Siemens parts

Siemens 6GK5208-0RA00-2AC2 – SCALANCE XC208G PoE Manageable Layer 2 IE PoE Switch
Siemens
6GK5208-0RA00-2AC2

SCALANCE XC208G PoE Manageable Layer 2 IE PoE Switch

Siemens 6GK5208-0RA00-5AC2 – SCALANCE XC208G PoE Manageable Layer 2 IE PoE Switch
Siemens
6GK5208-0RA00-5AC2

SCALANCE XC208G PoE Manageable Layer 2 IE PoE Switch

Siemens 6GK5213-3BF00-2AB2 – SCALANCE XB213-3LD managed layer 2 IE switch 13x 10/100 Mbit/s RJ45 ports, 3x SM FO SC-port 1x console port
Siemens
6GK5213-3BF00-2AB2

SCALANCE XB213-3LD managed layer 2 IE switch 13x 10/100…

Siemens 6GK5213-3BF00-2TB2 – SCALANCE XB213-3LD managed layer 2 IE switch 13x 10/100 Mbit/s RJ45 ports, 3x SM FO SC-port 1x console port
Siemens
6GK5213-3BF00-2TB2

SCALANCE XB213-3LD managed layer 2 IE switch 13x 10/100…

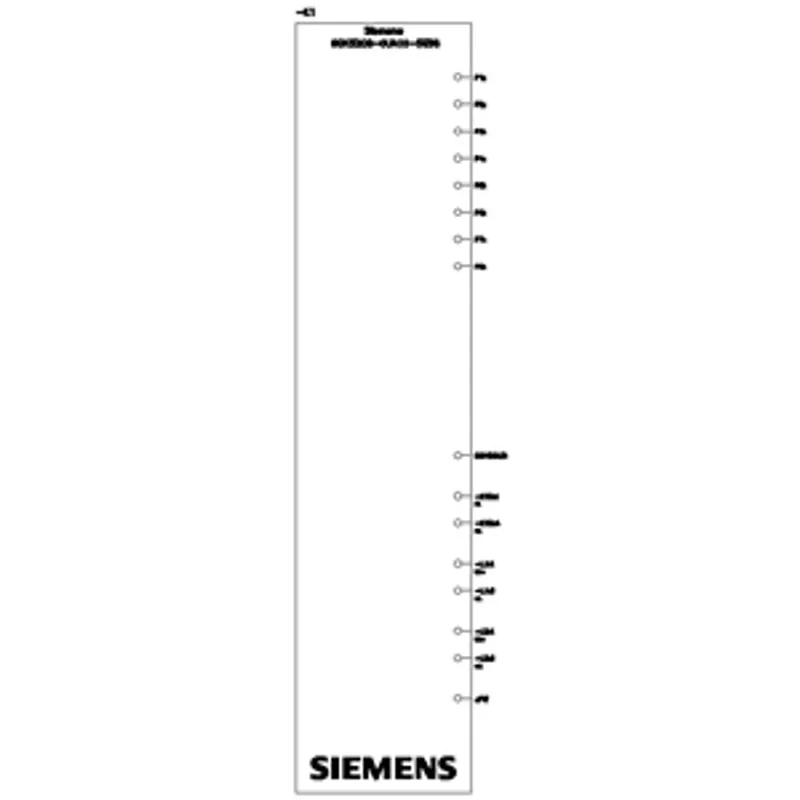

Siemens 6GK5208-0UA10-5ES6Price and lead time confirmed within 1 business day
Request a Quote
