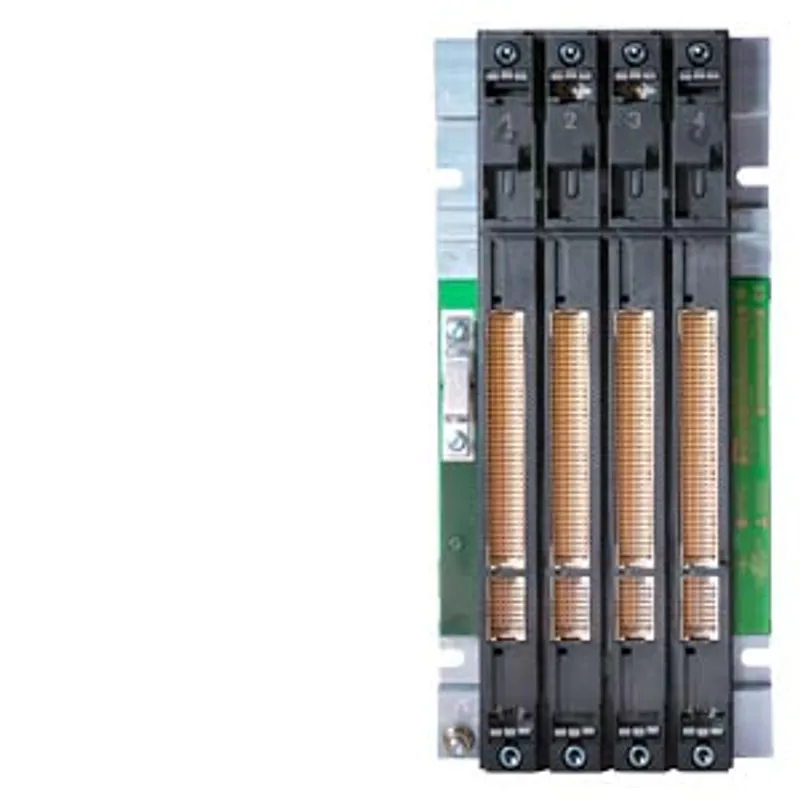

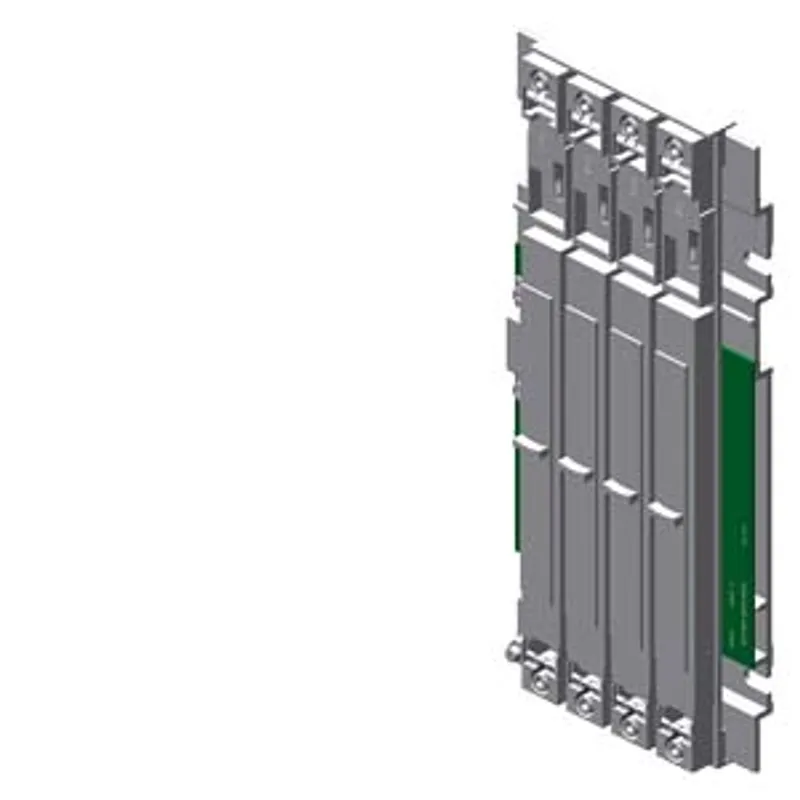

Siemens 6ES7401-1DA01-0AA0 – SIMATIC S7-400, rack CR3, central with 4 slots
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Racks |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 8.72 kg |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 6ES7401-1DA01-0AA0 be shipped?
6ES7401-1DA01-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7401-1DA01-0AA0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7401-1DA01-0AA0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7401-1DA01-0AA0, subject to availability and destination.
SIMATIC S7-400, rack CR3, central with 4 slots
Specifications
General information
| Product type designation | CR3 |
Hardware configuration
| Rack — Communication bus | Yes |
| Rack — P bus | Yes |
| Slots — Number of slots | 4 |
Standards, approvals, certificates
| CE mark | Yes |
| UKCA mark | Yes |
| UL approval | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| CCC | Yes |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during storage/transportation — min. | 0 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
Dimensions
| Width | 130 mm |
| Height | 290 mm |
| Depth | 27.5 mm |
Weights
| Weight, approx. | 750 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 6ES7401-1DA01-0AA0 |
