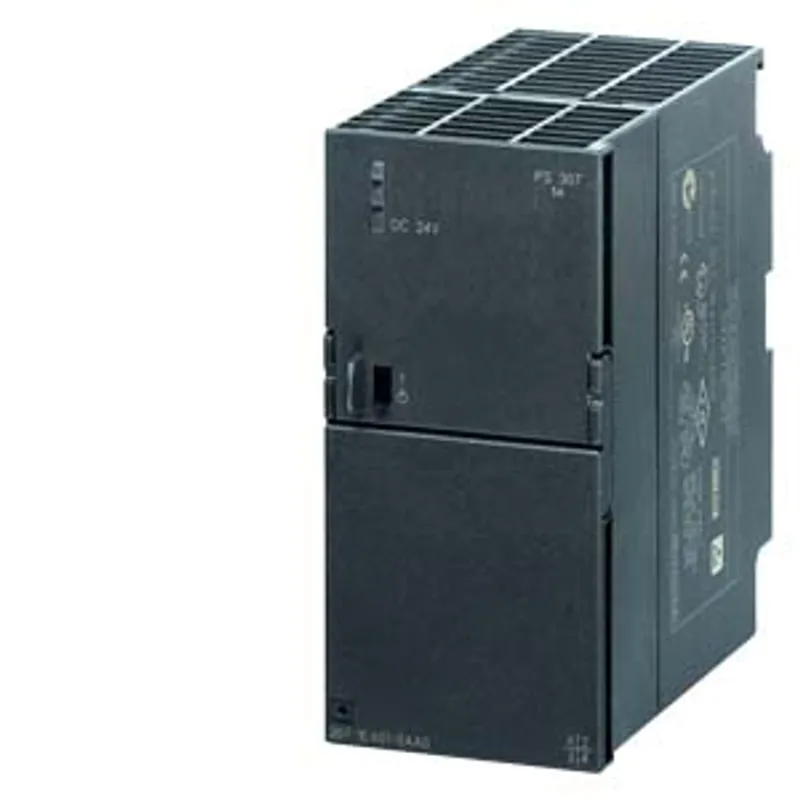

Siemens 6ES7307-1EA01-0AA0 – SIMATIC S7-300 Regulated power supply PS307 input: 120/230… — photo 1 of 4

Siemens 6ES7307-1EA01-0AA0 – SIMATIC S7-300 Regulated power supply PS307 input: 120/230… — photo 2 of 4

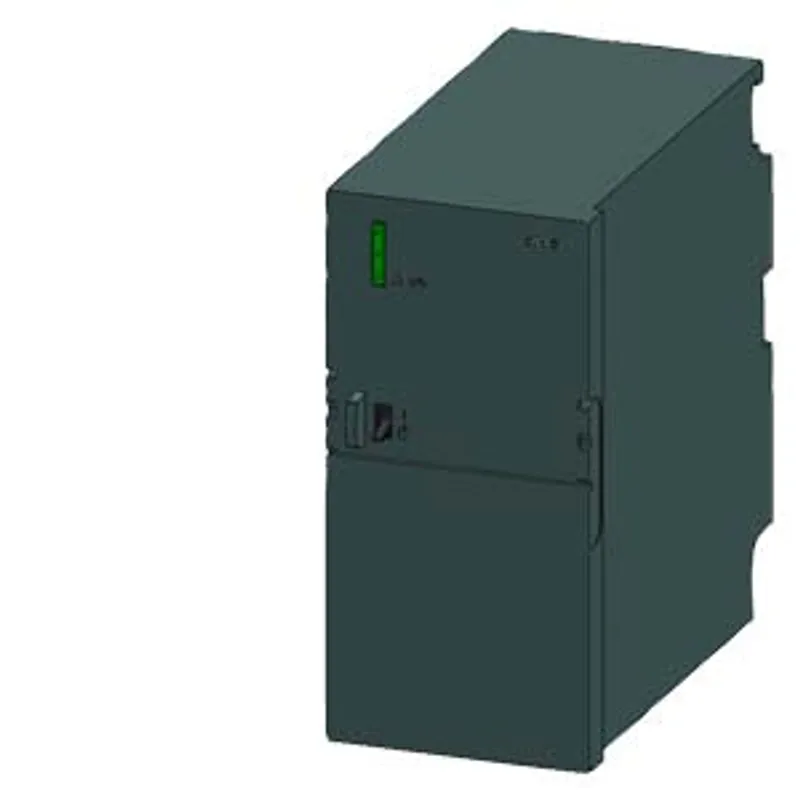

Siemens 6ES7307-1EA01-0AA0 – SIMATIC S7-300 Regulated power supply PS307 input: 120/230… — photo 3 of 4

Available on request

Siemens 6ES7307-1EA01-0AA0 – SIMATIC S7-300 Regulated power supply PS307 input: 120/230…

MPN: 6ES7307-1EA01-0AA0 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	1-phase, 24 V DC (for S7-300 and ET 200M)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	5 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 6ES7307-1EA01-0AA0 be shipped?

6ES7307-1EA01-0AA0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7307-1EA01-0AA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7307-1EA01-0AA0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7307-1EA01-0AA0, subject to availability and destination.

SIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: 24 V/5 A DC

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6ES7307-1EA01-0AA0
product brand name	SIMATIC
product type designation	PS307
product designation	Power supply S7-300
type of current supply	24 V/5 A

input

type of the power supply network	1-phase AC
phase number	1
voltage curve at input	AC
supply voltage at AC	Automatic range selection
supply voltage	120 V/230 V
input voltage 1 at AC	85 ... 132 V
input voltage 2 at AC	170 ... 264 V
supply voltage — at 50 Hz	230 V
supply voltage — at 60 Hz	120 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	No
overvoltage overload capability	2.3 × Vin rated, 1.3 ms
buffering time for rated value of the output current in the event of power failure minimum	20 ms
operating condition of the mains buffering	at Vin = 93/187 V
input current — at rated input voltage 120 V	2.3 A
input current — at rated input voltage 230 V	1.2 A
current limitation of inrush current at 25 °C maximum	20 A
duration of inrush current limiting at 25 °C — maximum	3 ms
I2t value maximum	1.2 A²·s
fuse protection type	T 3,15 A/250 V (not accessible)
fuse protection type in the feeder	Recommended miniature circuit breaker: from 6 A characteristic C

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	24 V
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	24 V
output voltage adjustable	No; -
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.1 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.5 %
residual ripple — maximum	50 mV
residual ripple — typical	10 mV
voltage peak — maximum	150 mV
voltage peak — typical	20 mV
display version for normal operation	Green LED for 24 V OK
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	2 s
voltage increase time of the output voltage — typical	10 ms
output current — rated value	5 A
output current — rated range	0 ... 5 A
supplied active power typical	120 W
short-term overload current — on short-circuiting during the start-up typical	20 A
short-term overload current — at short-circuit during operation typical	20 A
duration of overloading capability for excess current — on short-circuiting during the start-up	100 ms
duration of overloading capability for excess current — at short-circuit during operation	100 ms
bridging of equipment	Yes

efficiency

efficiency in percent	87 %
power loss [W] — at rated output voltage for rated value of the output current typical	18 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical	1 %
setting time — load step 50 to 100% typical	0.3 ms
setting time — load step 100 to 50% typical	0.3 ms

protection and monitoring

design of the overvoltage protection	Additional control loop, shutdown at < 28.8 V, automatic restart
property of the output short-circuit proof	Yes
design of short-circuit protection	Electronic shutdown, automatic restart
response value current limitation	5.5 ... 6.5 A
enduring short circuit current RMS value — maximum	7 A

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class I
leakage current — maximum	3.5 mA
leakage current — typical	0.5 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
certificate of suitability — UKCA marking	Yes
certificate of suitability — EAC approval	Yes
certificate of suitability — NEC Class 2	No
type of certification — BIS	Yes; R-41183539
type of certification — CB-certificate	Yes
MTBF at 40 °C	2 480 589 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	Yes; IECEx Ex nA nC IIC T3 Gc
certificate of suitability — ATEX	Yes; ATEX (EX) II 3G Ex nA nC IIC T3 Gc
certificate of suitability — ULhazloc approval	Yes
certificate of suitability — UKEX	Yes
certificate of suitability — CCC for hazardous zone according to GB standard	Yes
certificate of suitability — FM registration	Yes; Class I, Div. 2, Group ABCD, T4

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	Yes
Marine classification association — Lloyds Register of Shipping (LRS)	Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	504.2 kg
global warming potential [CO2 eq] — during manufacturing	11.3 kg
global warming potential [CO2 eq] — during operation	492.3 kg
global warming potential [CO2 eq] — after end of life	0.41 kg

ambient conditions

ambient temperature — during operation	0 ... 60 °C; with natural convection
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
type of electrical connection — at input	L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
type of electrical connection — at output	L+, M: 3 screw terminals each for 0.5 ... 2.5 mm²
type of electrical connection — for auxiliary contacts	-

mechanical data

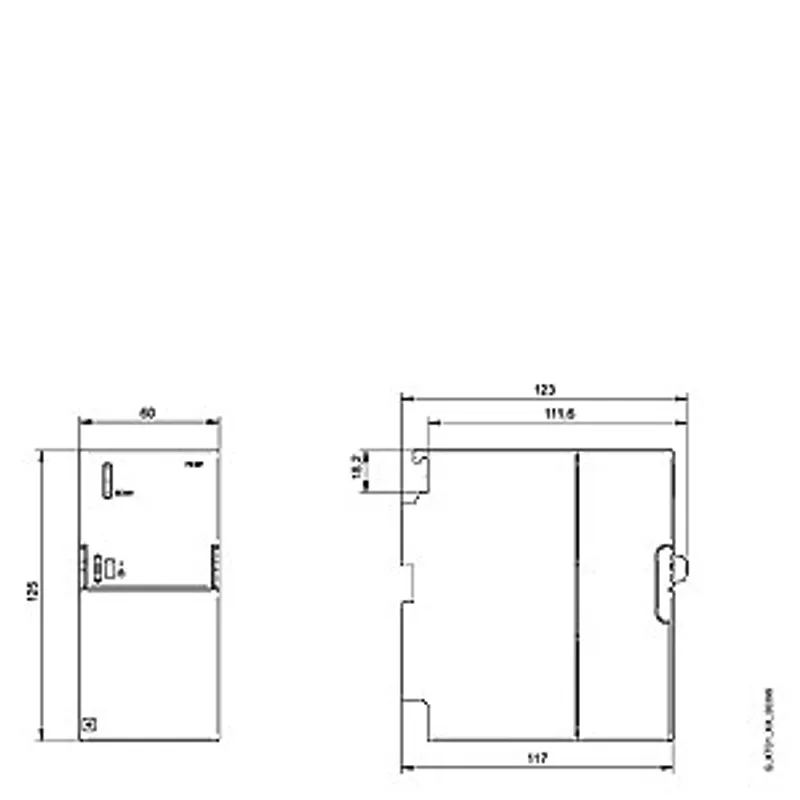

width × height × depth of the enclosure	60 × 125 × 120 mm
installation width × mounting height	60 mm × 205 mm
required spacing — top	40 mm
required spacing — bottom	40 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Can be mounted onto S7 rail
fastening method — DIN-rail mounting	No
fastening method — S7 rail mounting	Yes
fastening method — wall mounting	No
housing can be lined up	Yes
net weight	0.6 kg

accessories

mechanical accessories

Mounting adapter for standard mounting rail (6EP1971-1BA00)

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
