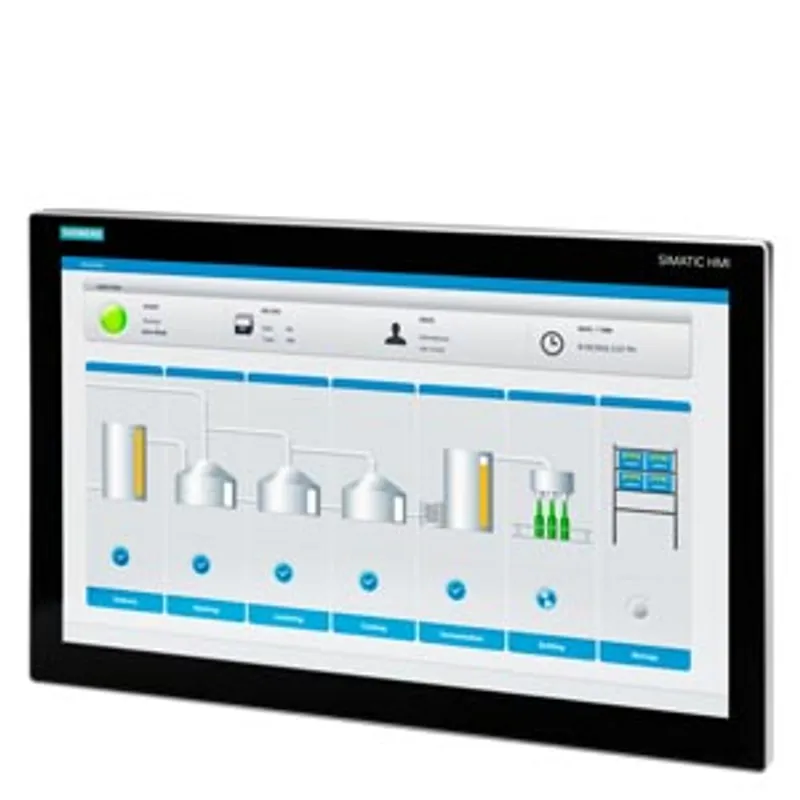

Siemens 6AV7863-4MA14-2AA0
SIMATIC IFP2200 V2 PRO, 22 multi-touch display (16:9) with 1920x1080 pixel resolution, PRO variant stand
- MPN
- 6AV7863-4MA14-2AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 6AV7863-4MA14-2AA0?
SIMATIC IFP2200 V2 PRO, 22 multi-touch display (16:9) with 1920x1080 pixel resolution, PRO variant stand, for 24 V DC, DisplayPort, can be placed up to 100 m away HDBaseT, USB on the rear side, standard design
Specifications
General information
| Product type designation | IFP2200 PRO |
| Short designation | Flat Panel 22" PRO multi-touch ext. |
Display
| Design of display | TFT widescreen display, LED backlighting |
| Screen diagonal | 21.5 in; 22" |
| Screen diagonal [cm] | 54.6 cm |
| Display width | 476.1 mm |
| Display height | 267.8 mm |
| On Screen Display (OSD) configuration | No; Adjustable by means of software |
| Number of colors | 16 777 216; 24 bit |
| Viewing angle | 178° x 178° |
| Resolution (pixels) — Image resolution | 1 920 x 1 080 |
| Resolution (pixels) — Horizontal image resolution | 1 920 pixel |
| Resolution (pixels) — Vertical image resolution | 1 080 pixel |
| Resolution (pixels) — Pixel size, horizontal | 0.248 mm |
| Resolution (pixels) — Pixel size, vertical | 0.248 mm |
| General features — Brightness/contrast | 250 cd/m² / 1 000:1 |
| General features — non-reflective and tempered mineral glass screen | Yes |
| General features — Detachable from computer unit | 100 m; HDBaseT protocol |
| General features — Luminance | 250 cd/m² |
| Backlighting — Type of backlighting | LED |
| Backlighting — MTBF backlighting (at 25 °C) | 30 000 h; At 25°C |
| Backlighting — Backlight dimmable | Yes; 0-100 % |
Control elements
| Control elements | multi-touch screen |
| Input device — Integrated mouse cursor control | Yes; Also externally via USB |
| Touch operation — Design as touch screen | Yes |
| Touch operation — Design as multi-touch screen | Yes; Projective-capacitive |
| Touch operation — Monitor keyboard | Yes |
Installation type/mounting
| Design | Pedestal mounting |
| Front mounting | No |
| Support arm mounting | No |
| Stand mounting | Yes |
| VESA mounting | Yes; With VESA adapter set |
| maximum permitted forward tilt angle from vertical | 45° |
| maximum permitted backward tilt angle from vertical | 45° |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V; PELV / SELV floating |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption (rated value) | 1 A |
| Current consumption, max. | 1.3 A |
| Starting current inrush I²t | 0.5 A²·s |
Power loss
| Power loss, typ. | 24 W |
| Power loss, max. | 31 W |
Interfaces
| Number of USB interfaces | 2; USB 2.0 type A |
| USB on the rear | Yes; 2x onboard |
| Connection for keyboard/mouse | USB |
| Connection for keyboard/mouse | USB |
| Video interfaces — DisplayPort | Yes; Display port V1.2 |
| Touch interfaces — USB | Yes |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP65 |
| NEMA (front) — Enclosure Type 4 at the front | Yes |
| NEMA (front) — Enclosure Type 4x at the front | Yes |
Standards, approvals, certificates
| Certificate of suitability | hazardous zone 2/22; shipbuilding |
| CE mark | Yes |
| UL approval | Yes |
| cULus | Yes; Corresponds to UL 508 |
| FM approval | in preparation |
| RCM (formerly C-TICK) | Yes |
| EAC (formerly Gost-R) | Yes |
| EMC | CE, EN 55011, EN 61000-6-4, EN 61000-6-2 |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 428.25025 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 96.6911 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 347.89539 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -18.77316 kg |
| Use in hazardous areas — ATEX Zone 2 | Yes |
| Use in hazardous areas — ATEX Zone 22 | Yes |
| Use in hazardous areas — IECEx Zone 2 | Yes |
| Use in hazardous areas — IECEx Zone 22 | Yes |
| Use in hazardous areas — FM Class I Division 2 | No |
Ambient conditions
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 45 °C |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 3 500 m |
| Relative humidity — Operation, max. | 95 %; no condensation |
| Vibrations — Vibration load in operation | 1 gn |
| Vibrations — Vibration load during transport/storage | 1 gn |
| Shock testing — Shock load during operation | 15 gn |
| Shock testing — shock acceleration during storage/transport | 15 gn |
Mechanics/material
| Enclosure material (front) | In standard design |
| Enclosure material (front) — aluminum | Yes |
| Enclosure material (front) — Aluminum casting | Yes |
| Enclosure material (front) — Glass | Yes; at front |
| Enclosure material (rear) | aluminum |

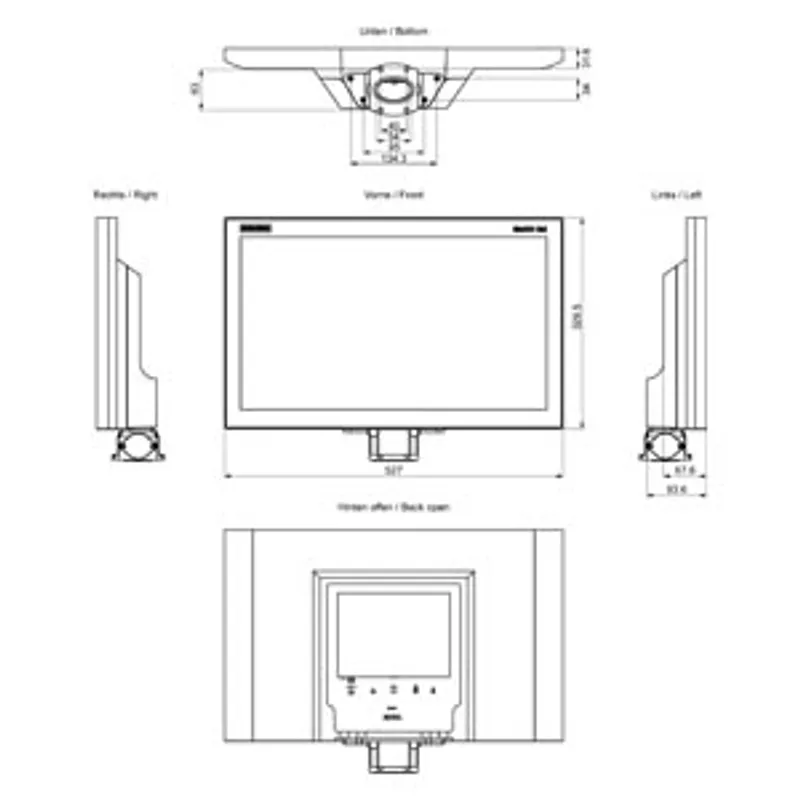

Dimensions
| Width of the housing front | 527 mm |
| Height of housing front | 329 mm |
Weights
| Weight (without packaging) | 7.6 kg |
| Weight (with packaging) | 8.4 kg |
