Siemens 5UB4711

DELTA flaeche IP44, AP Dark gray/light gray SCHUKO socket outlet 10/16 A 250 V With screwless Connection…

MPN: 5UB4711
Category: Socket Outlet

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 5UB4711?

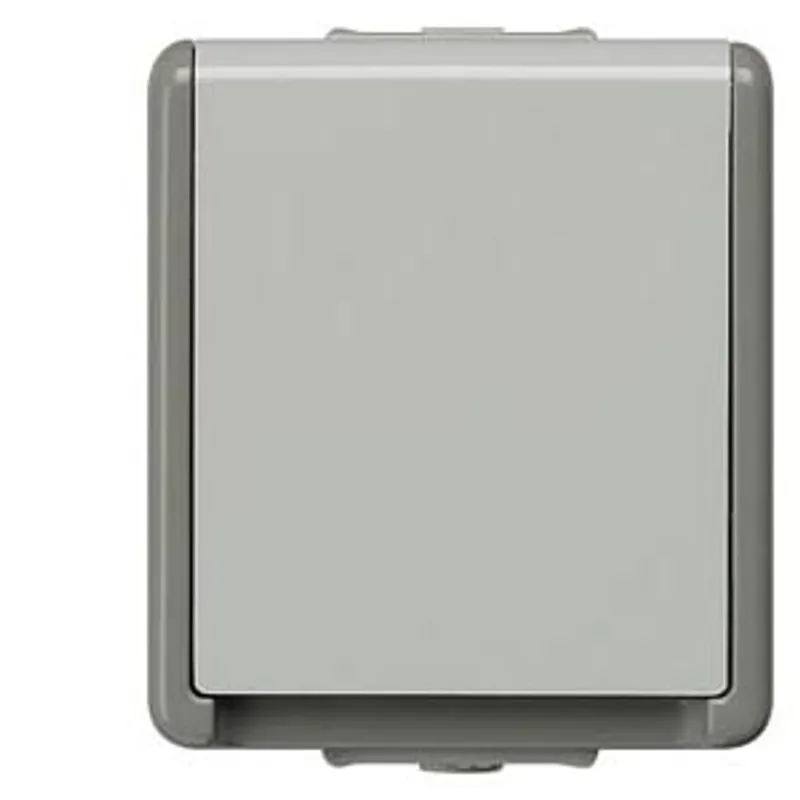

DELTA flaeche IP44, AP Dark gray/light gray SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals with spring flap, 66x 75 mm

Specifications

Model

product brand name	DELTA
product designation	SCHUKO socket outlet
design of the product	SCHUKO socket outlet CEE 7/3 (type F)
cover version	central plate
design of the special power supply unit	without special current supply
design of the socket according to VDE 0620 for severe conditions	No
design of the phase tap	No

General technical data

marking of socket outlet	without imprint
mounting type	fixing with claw and screw
surface processing	others
material	thermoplastic

Supply voltage

operating voltage rated value	250 V
supply voltage frequency rated value	50 Hz

Protection class

protection class IP

IP20

Main circuit

operational current rated value

16 A

Appearance

RAL color number (similar)	7 035
color	grey

Product details

product component — ejection equipment	No
product component — labeling field	No
product component — increased touch protection	Yes
product component — residual current device	No
product component — miniature fuse	No
product component — integrated functional lighting	No
product component — integrated light source	No
product component — integrated orientation lighting	No
product component — hinged lid	Yes
product feature lockable	No
product feature halogen-free	Yes
product feature transparent	No

Product function

product function — socket selectable	No
product function — overvoltage protection	No

Number

number of units	1
number of sockets switchable	0

Connections

arrangement of contacts diagonal	No
type of electrical connection	plug terminal

Mechanical Design

height	70 mm
width	70 mm
depth	45 mm
fastening method	surface mounting
Net Weight	111.8 g
material of the enclosure	plastic

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 5UB4711PDF
