Siemens 5UB1931
DELTA i-system aluminum-metallic SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals cover…
- MPN
- 5UB1931
- Category
- Socket Outlets
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5UB1931?

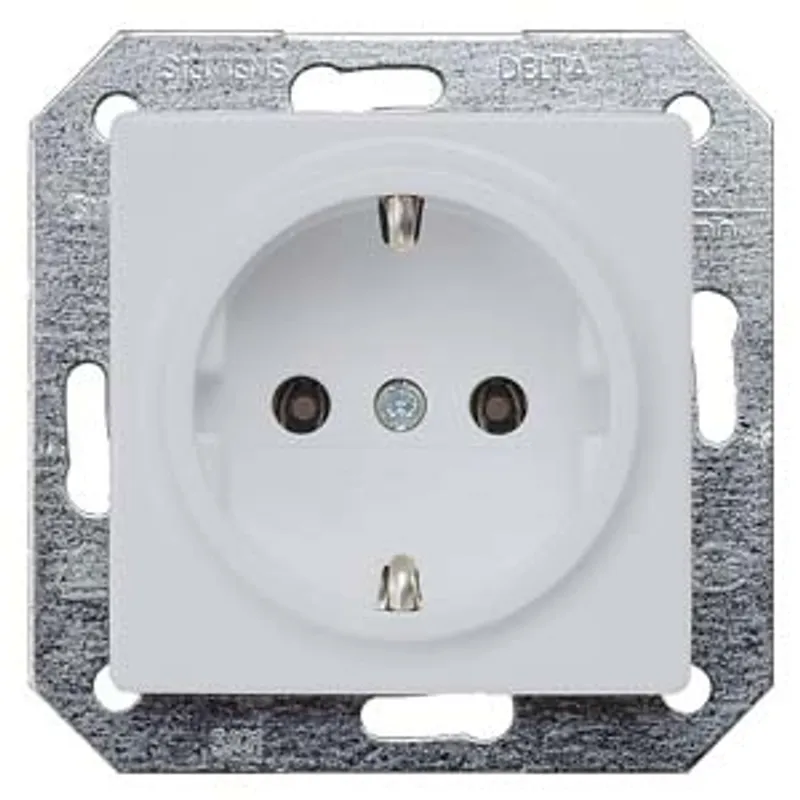

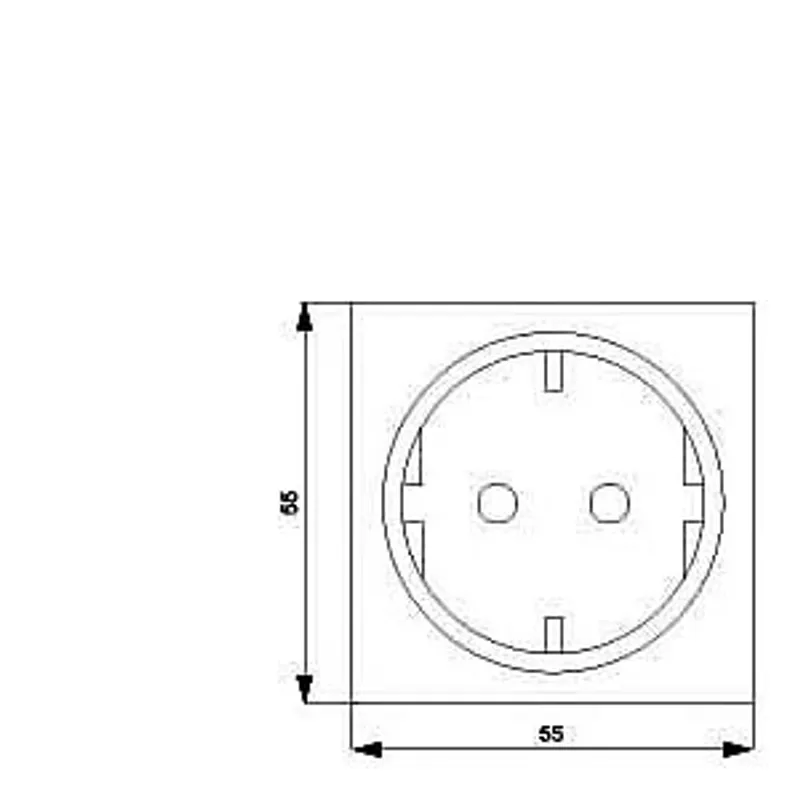

DELTA i-system aluminum-metallic SCHUKO socket outlet 10/16 A 250 V With screwless Connection terminals cover plate 55 x 55 mm
Specifications
Model
| product brand name | DELTA |
| product designation | SCHUKO socket outlet |
| design of the product | SCHUKO socket outlet CEE 7/3 (type F) |
| cover version | central plate |
| design of the special power supply unit | without special current supply |
| design of the socket according to VDE 0620 for severe conditions | No |
| design of the phase tap | No |
General technical data
| marking of socket outlet | without imprint |
| mounting type | fixing with claw and screw |
| surface processing | others |
| material | thermoplastic |
Supply voltage
| operating voltage rated value | 250 V |
| supply voltage frequency rated value | 50 Hz |
Protection class
| protection class IP | IP20 |
Main circuit
| operational current rated value | 16 A |
Appearance
| RAL color number (similar) | 9 006 |
| color | aluminum metallic |
Product details
| product component — ejection equipment | No |
| product component — labeling field | No |
| product component — increased touch protection | Yes |
| product component — residual current device | No |
| product component — miniature fuse | No |
| product component — integrated functional lighting | No |
| product component — integrated light source | No |
| product component — integrated orientation lighting | No |
| product component — hinged lid | No |
| product feature lockable | No |
| product feature halogen-free | Yes |
| product feature transparent | No |
Product function
| product function — socket selectable | No |
| product function — overvoltage protection | No |
Number
| number of units | 1 |
| number of sockets switchable | 0 |
Connections
| arrangement of contacts diagonal | No |
| type of electrical connection | plug terminal |
Mechanical Design
| height | 70 mm |
| width | 70 mm |
| depth | 45 mm |
| fastening method | flush mounting |
| Net Weight | 78 g |
| material of the enclosure | plastic |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.284 kg |
| global warming potential [CO2 eq] / during operation | 4.48 kg |
| global warming potential [CO2 eq] / after end of life | 0.0001 kg |
| global warming potential [CO2 eq] / total | 4.77 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5UB1931: frequently asked questions
When can 5UB1931 be shipped?
5UB1931 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5UB1931 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5UB1931 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5UB1931, subject to availability and destination.
