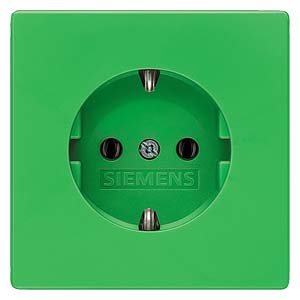

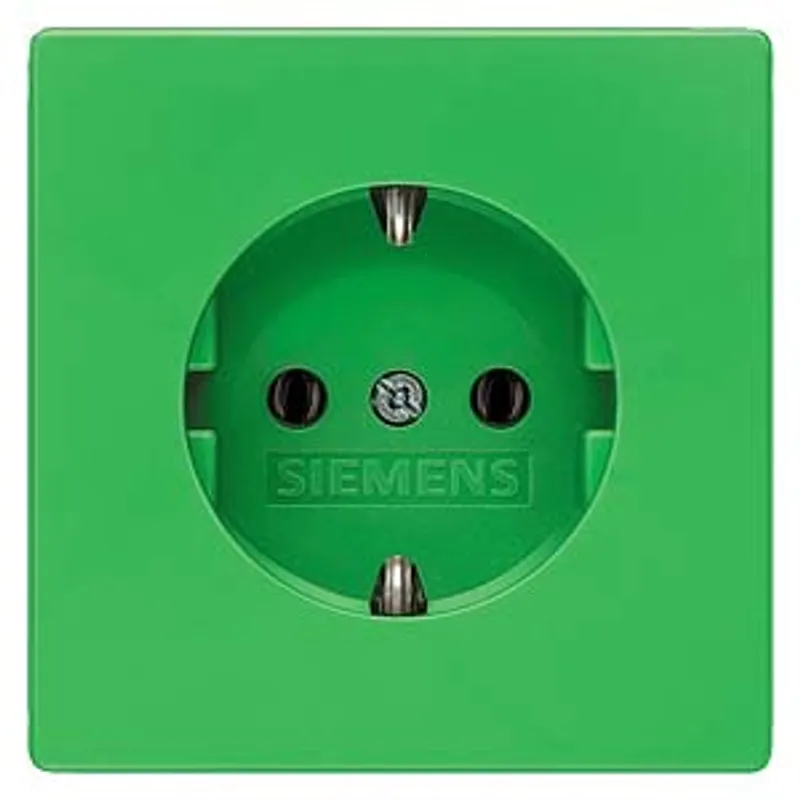

Siemens 5UB1835
DELTA style, green SCHUKO socket outlet 10/16 A, 250V with increased touch protection cover plate 68 x 68 mm
- MPN
- 5UB1835
- Category
- Socket Outlets
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 5UB1835?
DELTA style, green SCHUKO socket outlet 10/16 A, 250V with increased touch protection cover plate 68 x 68 mm
Specifications
Model
| product brand name | DELTA |
| product designation | SCHUKO socket outlet |
| design of the product | SCHUKO socket outlet CEE 7/3 (type F) |
| cover version | central plate |
| design of the special power supply unit | without special current supply |
| design of the socket according to VDE 0620 for severe conditions | No |
| design of the phase tap | No |
General technical data
| marking of socket outlet | without imprint |
| mounting type | Screw fixing |
| surface processing | others |
| material | thermoplastic |
Supply voltage
| operating voltage rated value | 250 V |
| supply voltage frequency rated value | 50 Hz |
Protection class
| protection class IP | IP20 |
Main circuit
| operational current rated value | 16 A |
Appearance
| RAL color number (similar) | 6 018 |
| color | green |
Product details
| product component — ejection equipment | No |
| product component — labeling field | No |
| product component — increased touch protection | No |
| product component — residual current device | No |
| product component — miniature fuse | No |
| product component — integrated functional lighting | No |
| product component — integrated light source | No |
| product component — integrated orientation lighting | No |
| product component — hinged lid | No |
| product feature lockable | No |
| product feature halogen-free | Yes |
| product feature transparent | No |
Product function
| product function — socket selectable | No |
| product function — overvoltage protection | No |
Number
| number of units | 1 |
| number of sockets switchable | 0 |
Connections
| arrangement of contacts diagonal | No |
| type of electrical connection | plug terminal |
Mechanical Design
| height | 70 mm |
| width | 70 mm |
| depth | 45 mm |
| fastening method | flush mounting |
| Net Weight | 100 g |
| material of the enclosure | plastic |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.284 kg |
| global warming potential [CO2 eq] / during operation | 4.48 kg |
| global warming potential [CO2 eq] / after end of life | 0.0001 kg |
| global warming potential [CO2 eq] / total | 4.77 kg |
