Siemens 5TG1826

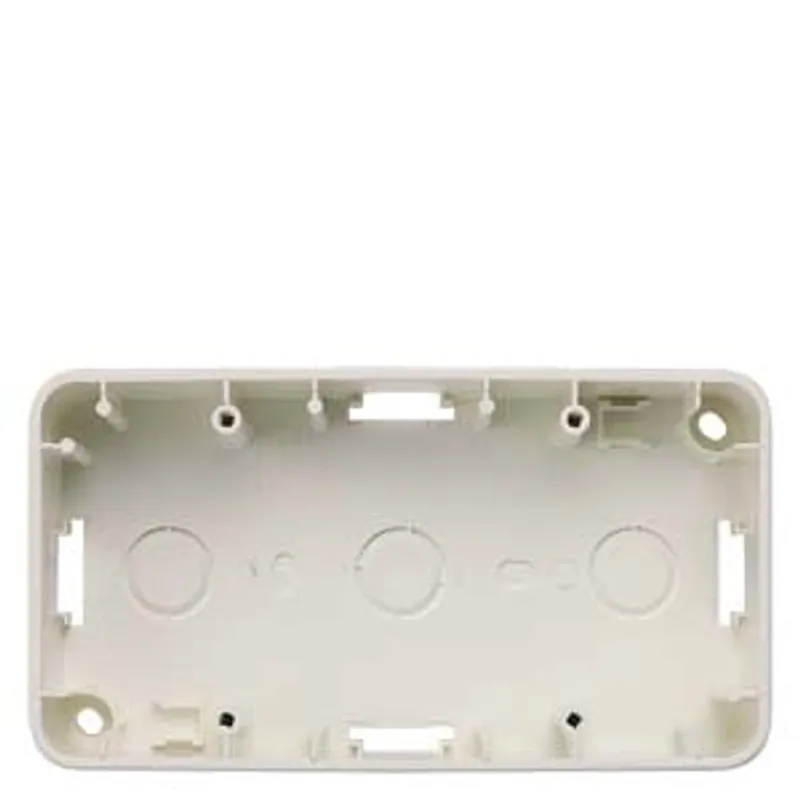

DELTA profil, titanium white Surface-mounting enclosure, double 125x 80x 42.5 mm

MPN: 5TG1826
Category: Surface-Mounting Enclosures

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 5TG1826?

DELTA profil, titanium white Surface-mounting enclosure, double 125x 80x 42.5 mm

Specifications

Model

product brand name	DELTA
product designation	Surface-mounting enclosure
product component cover frame	No
design of the surface	gloss
type of composition	surface-mounted enclosure

General technical data

material

thermoplastic

Protection class

protection class IP

IP20

Appearance

appearance	shiny
RAL color number (similar)	9 010
color of the enclosure	white

Product details

product component cable entry	No
product feature halogen-free	Yes
product feature transparent	No

Number

number of units

Mechanical Design

height	80 mm
depth	42.5 mm
mounting position	horizontal and vertical
Net Weight	105 g
material of the enclosure	plastic

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 5TG1826PDF
